In-frame revision kit Beta Marine Beta 30 – Nanni N3.30

Description

In-frame revision kit for the three-cylinder marine diesel engine of the Beta Marine Beta 30 and Nanni N3.30. Replace wear-prone components without a complete engine overhaul – an economical alternative for engines whose cylinders are still within tolerance. Since the cylinder head must be removed, a complete gasket set is included. Choose between a metal or graphite head gasket under Material.

✔️ Economical alternative to the complete revision kit
✔️ Includes complete gasket set – head gasket of your choice (metal or graphite)
✔️ For cylinders within tolerance; honing recommended

Technical specifications

• Component: In-frame revision kit
• For 3-cylinder marine diesel
• Head gasket: metal or graphite (choice)
• Delivery: complete per set

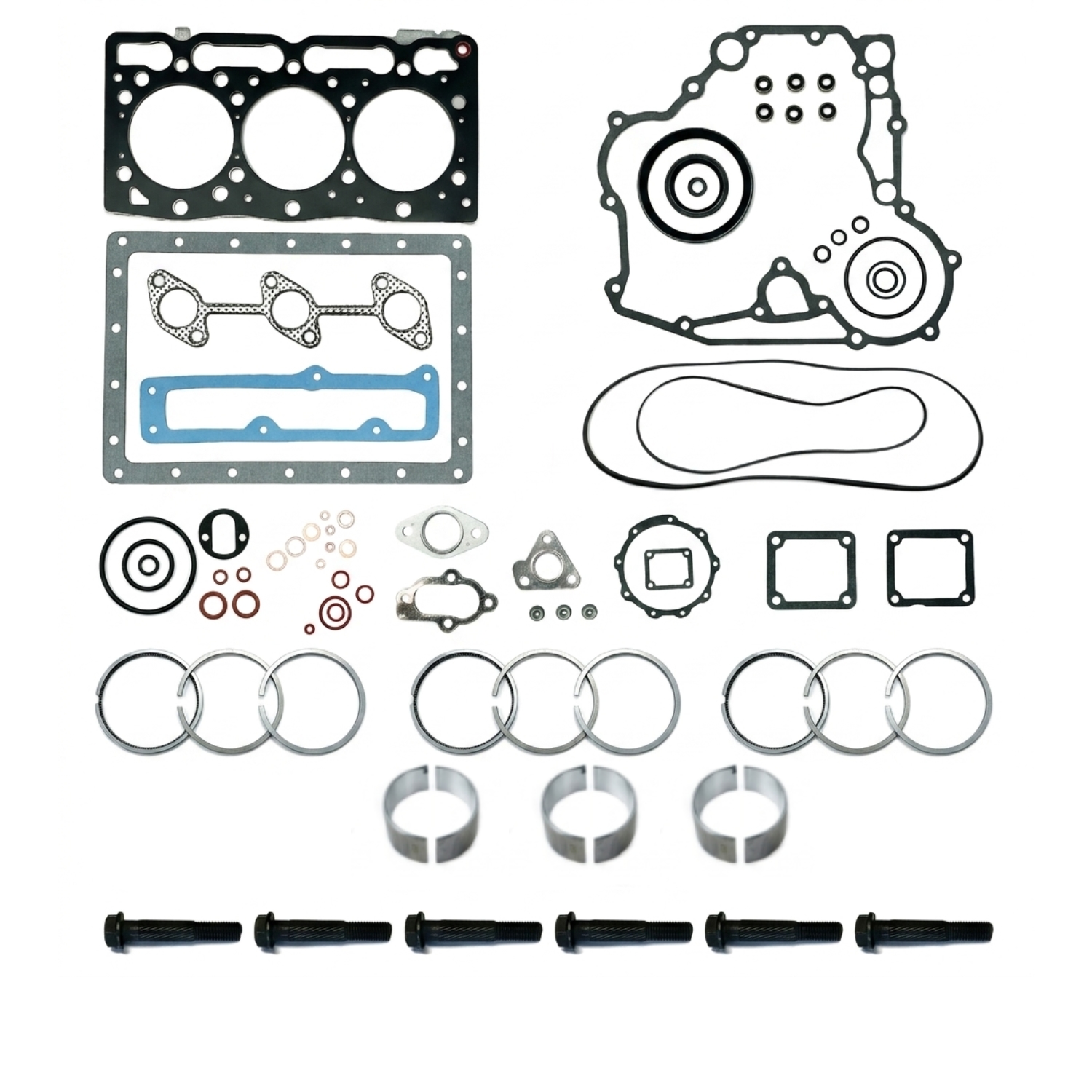

Kit contents

• 3× piston ring set
• 3× connecting rod bearing
• 1× complete gasket set (metal or graphite — choice under Material)
• 6× connecting rod bolt

Note: not suitable for scratched or worn cylinders or after overheating. In that case, choose the complete engine overhaul kit.

Suitable for

• Beta Marine: Beta 30
• Nanni: N3.30, Q1100 (genset)
• Phasor: K3-9.5 (genset)

OEM for reference

• 16261-03310, 1626103310 — head gasket
• 1G063-03310, 1G06303310 — head gasket
• 1E038-03310, 1E03803310 — head gasket
