In-frame revision kit Beta Marine Beta 28 – Universal M-25XPB

Description

In-frame revision kit for the three-cylinder marine diesel engine of the Beta Marine Beta 28 and the Universal M-25XPB. Replace wear-prone components without completely overhauling the block – an economical alternative for engines whose cylinders are still within tolerance. Since the cylinder head must be removed, a complete gasket set is included so you can seal the engine properly and leak-free.

✔️ Economical alternative to the complete overhaul kit
✔️ Includes complete gasket set with crankshaft seals
✔️ For cylinders within tolerance; honing recommended

Technical specifications

• Part: In-frame revision kit
• For 3-cylinder marine diesel
• Delivery: complete per set

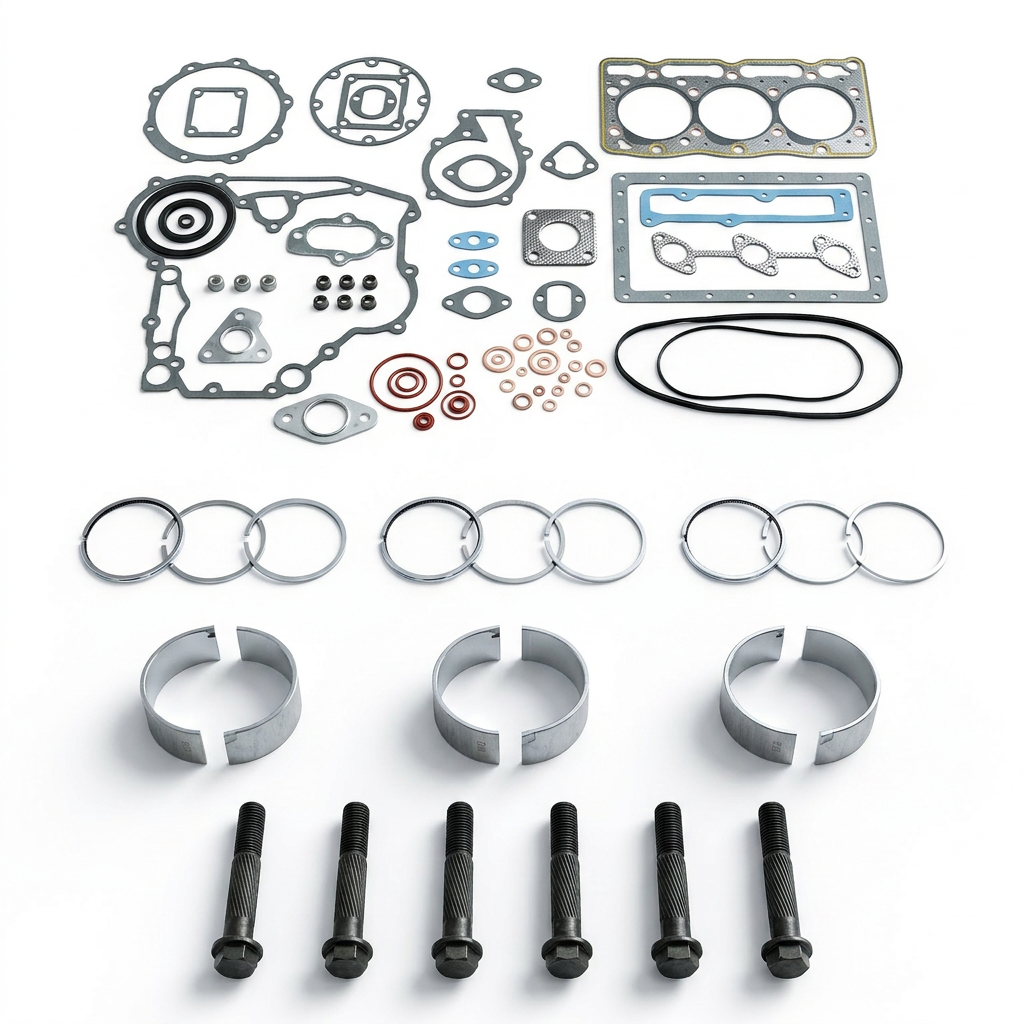

Kit contents

• 3× piston ring set
• 3× connecting rod bearing
• 1× complete gasket set (incl. crankshaft seal front + rear)
• 6× connecting rod bolt

Note: not suitable for scratched or worn cylinders or after overheating. In that case, choose the complete engine overhaul kit.

Suitable for

• Beta Marine: Beta 28
• Universal: M-25XPB
• Phasor: K3-8.0 (genset)

OEM for reference

• 16236-99350, 1623699350 — complete gasket set
• 16236-99352, 1623699352 — complete gasket set
• 16226-99364, 1622699364 — complete gasket set
• 16231-03310, 1623103310 — cylinder head gasket
• 16221-03310, 1622103310 — cylinder head gasket
• 16261-14520, 1626114520 — valve cover gasket
