Engine Overhaul Kit Beta Marine Beta 30 – Nanni N3.30

Description

Complete engine overhaul kit for the three-cylinder marine diesel engine of the Beta Marine Beta 30 and Nanni N3.30. Ideal for power loss, oil leakage, or compression problems: the kit is assembled according to OEM specifications and contains all essential components for a durable overhaul. Bore 78 mm, available in standard (STD) and oversized (+0.5).

✔️ Complete set for a full block overhaul
✔️ Includes pistons, piston rings, bearings, and all gaskets
✔️ Choice of standard or oversized (+0.5)

Technical specifications

• Part: Engine overhaul kit
• Bore: 78 mm (STD or +0.5)
• For 3-cylinder marine diesel
• Delivery: complete per set

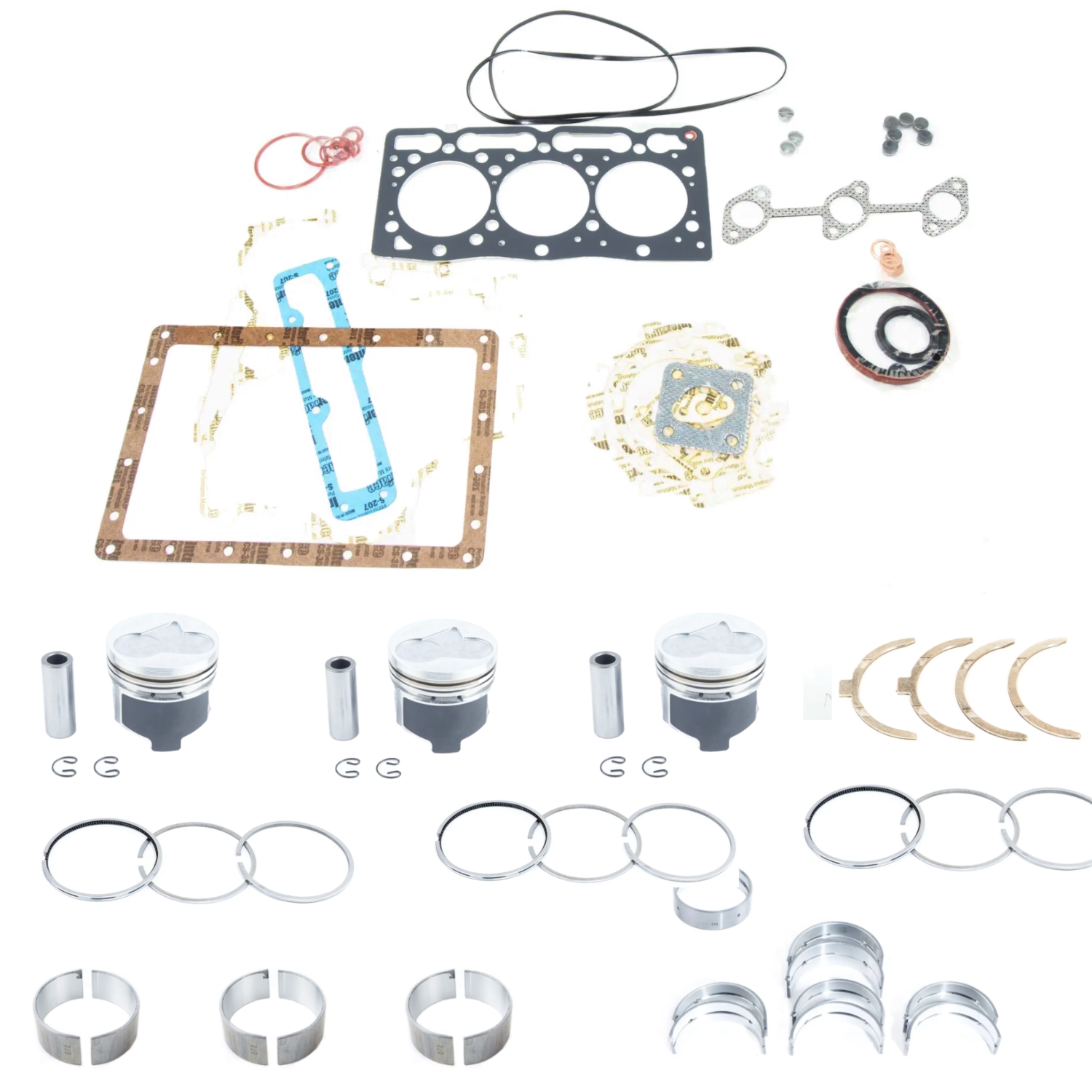

Kit contents

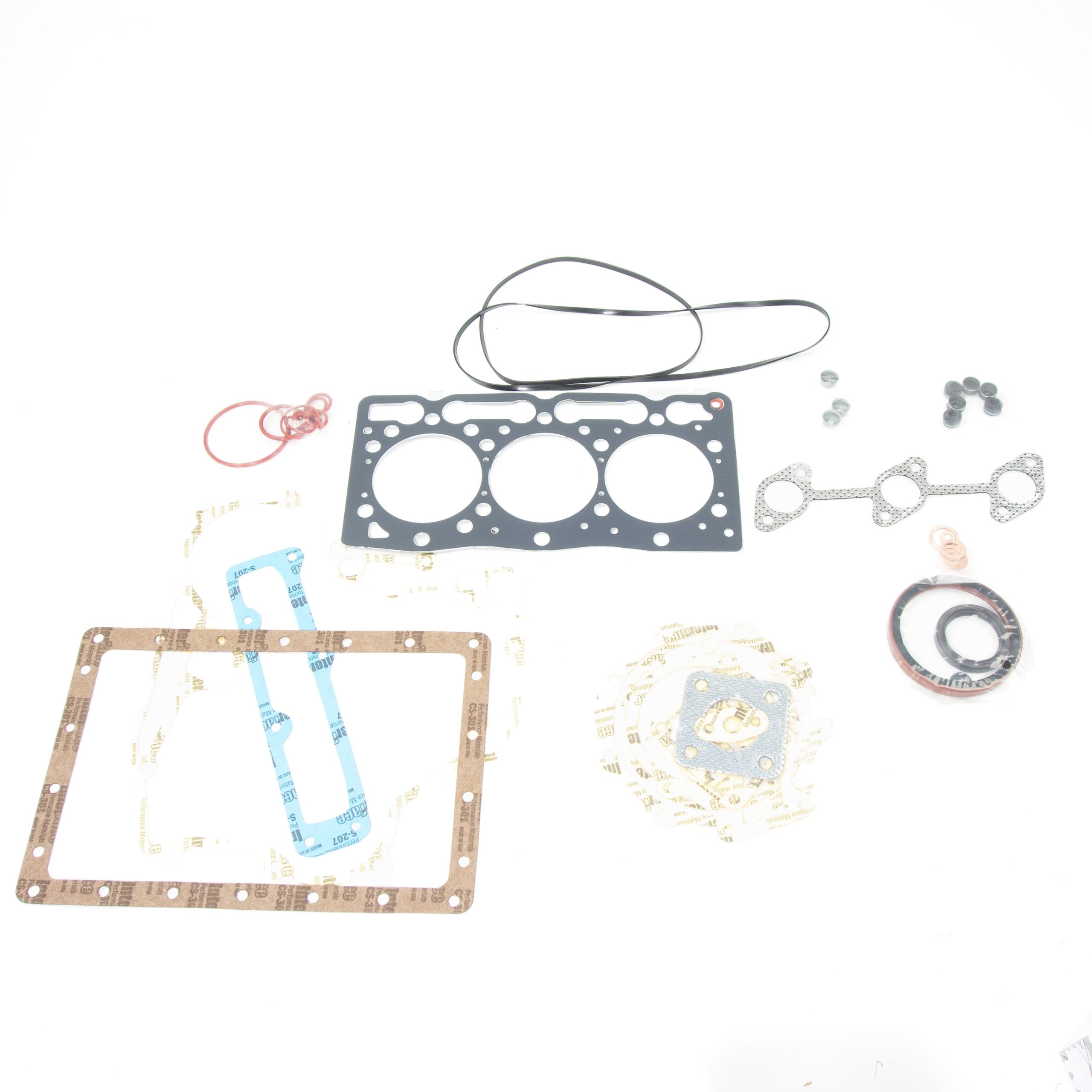

• Complete gasket set: cylinder head gasket(s), inlet and outlet gaskets, valve stem seals, oil seals (front and rear) and various seals

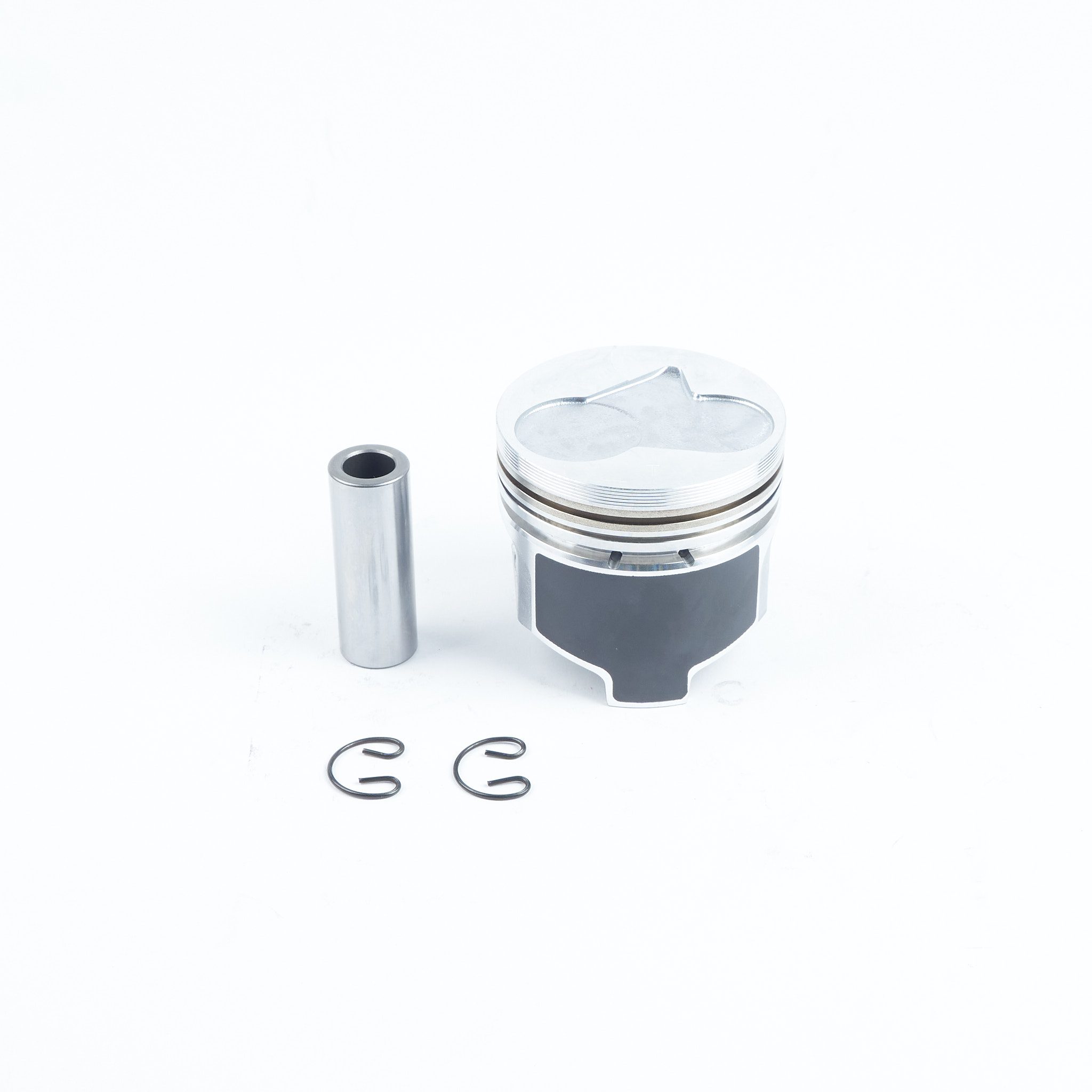

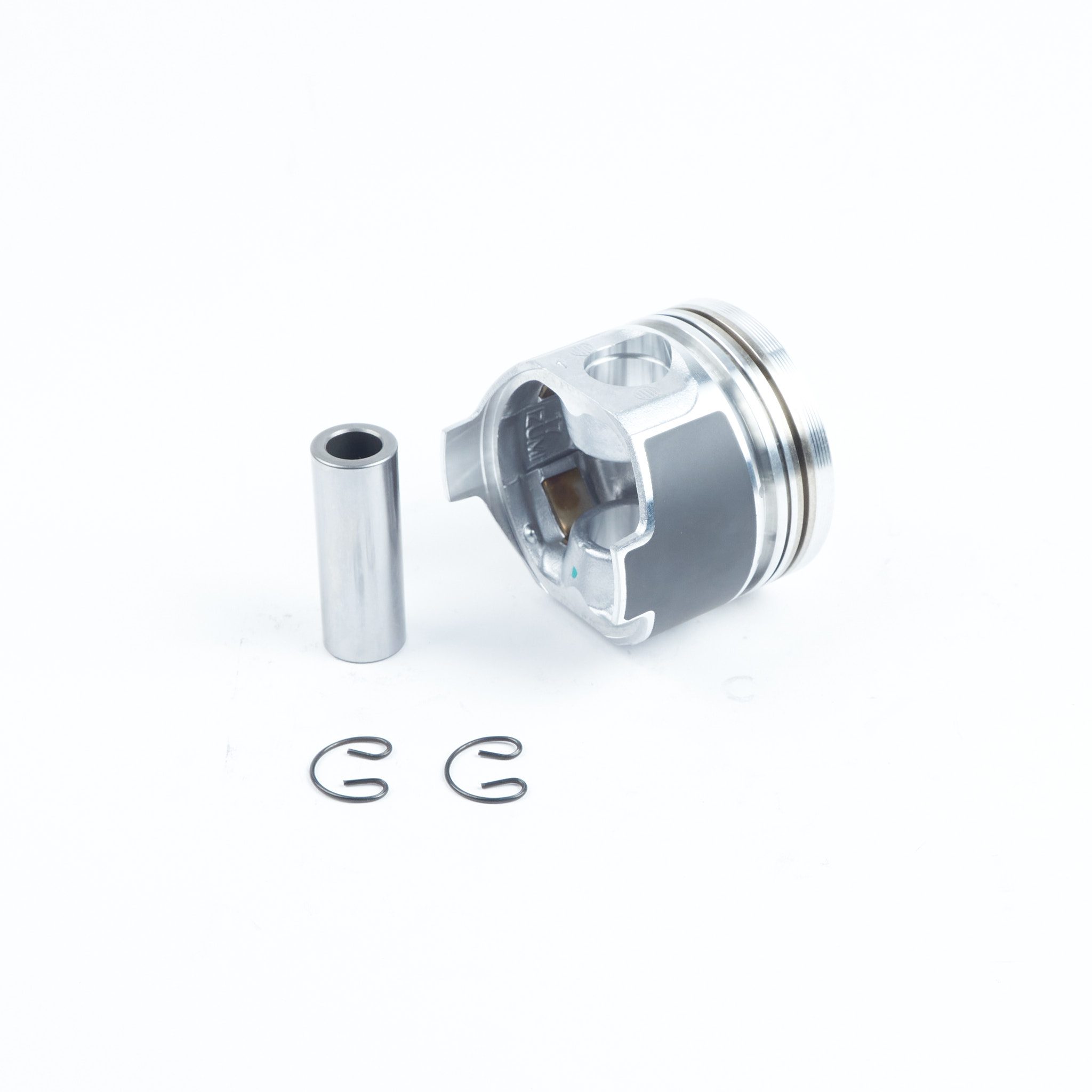

• 3× complete piston with piston rings
• Bearing kit: connecting rod bearings, main bearings (crankshaft bearings), thrust bearing (thrust washer) and valve guides

Suitable for

• Beta Marine: Beta 30
• Nanni: N3.30, Q1100 (genset)
• Phasor: K3-9.5 (genset)

OEM for reference

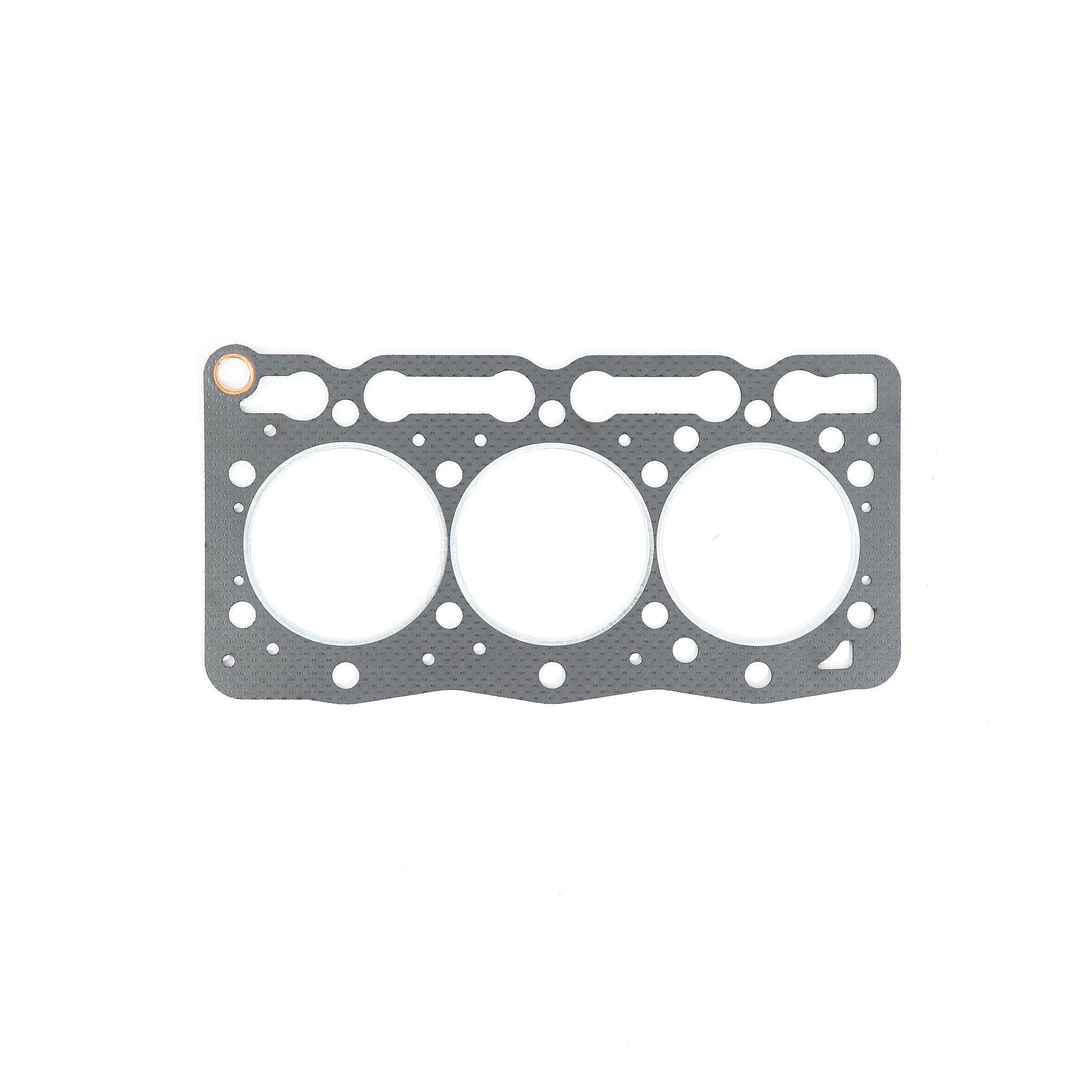

• 16261-03310, 1626103310 — cylinder head gasket
• 1G063-03310, 1G06303310 — cylinder head gasket
• 1E038-03310, 1E03803310 — cylinder head gasket
• 16060-21114 — main bearing
• 16292-21105 — connecting rod bearing
