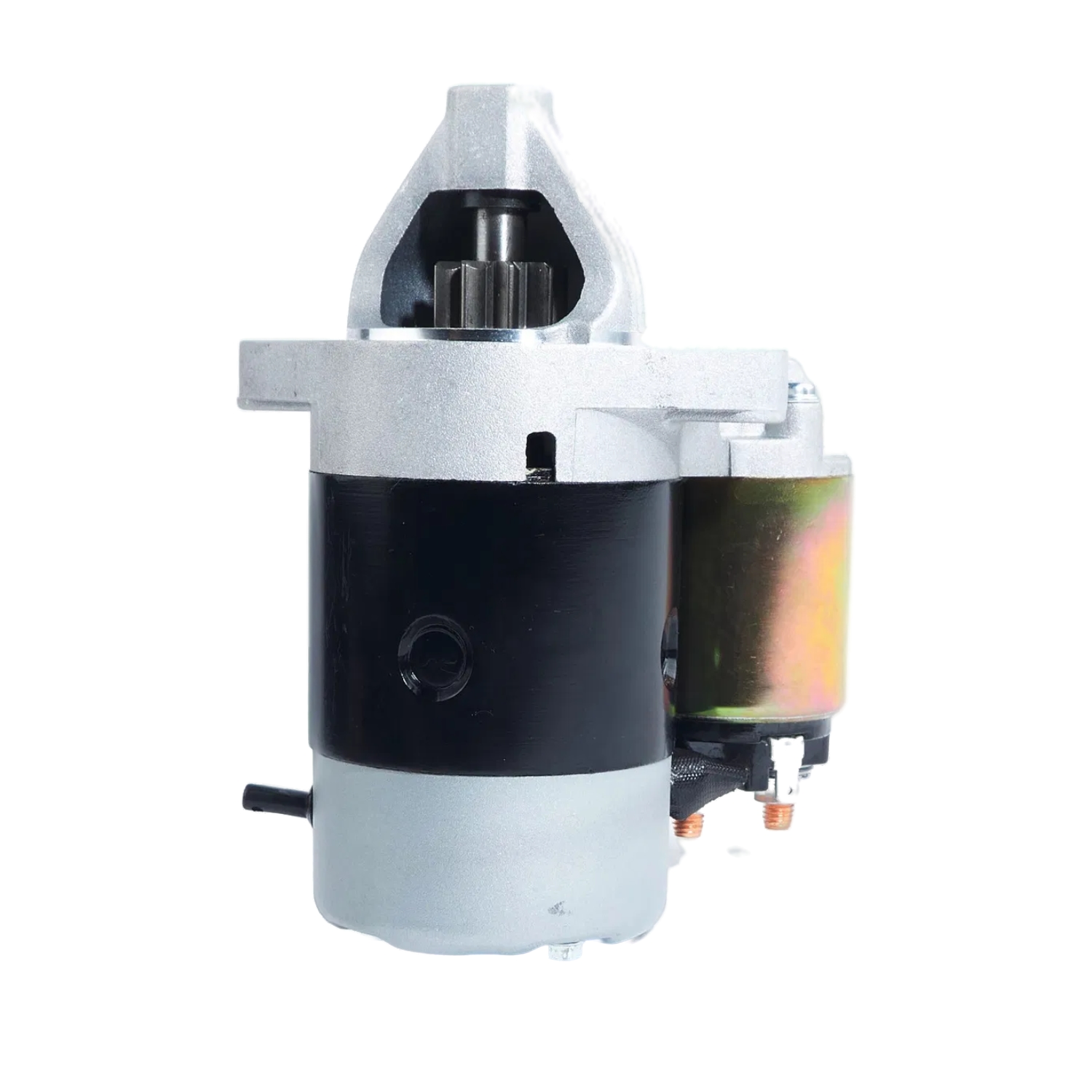

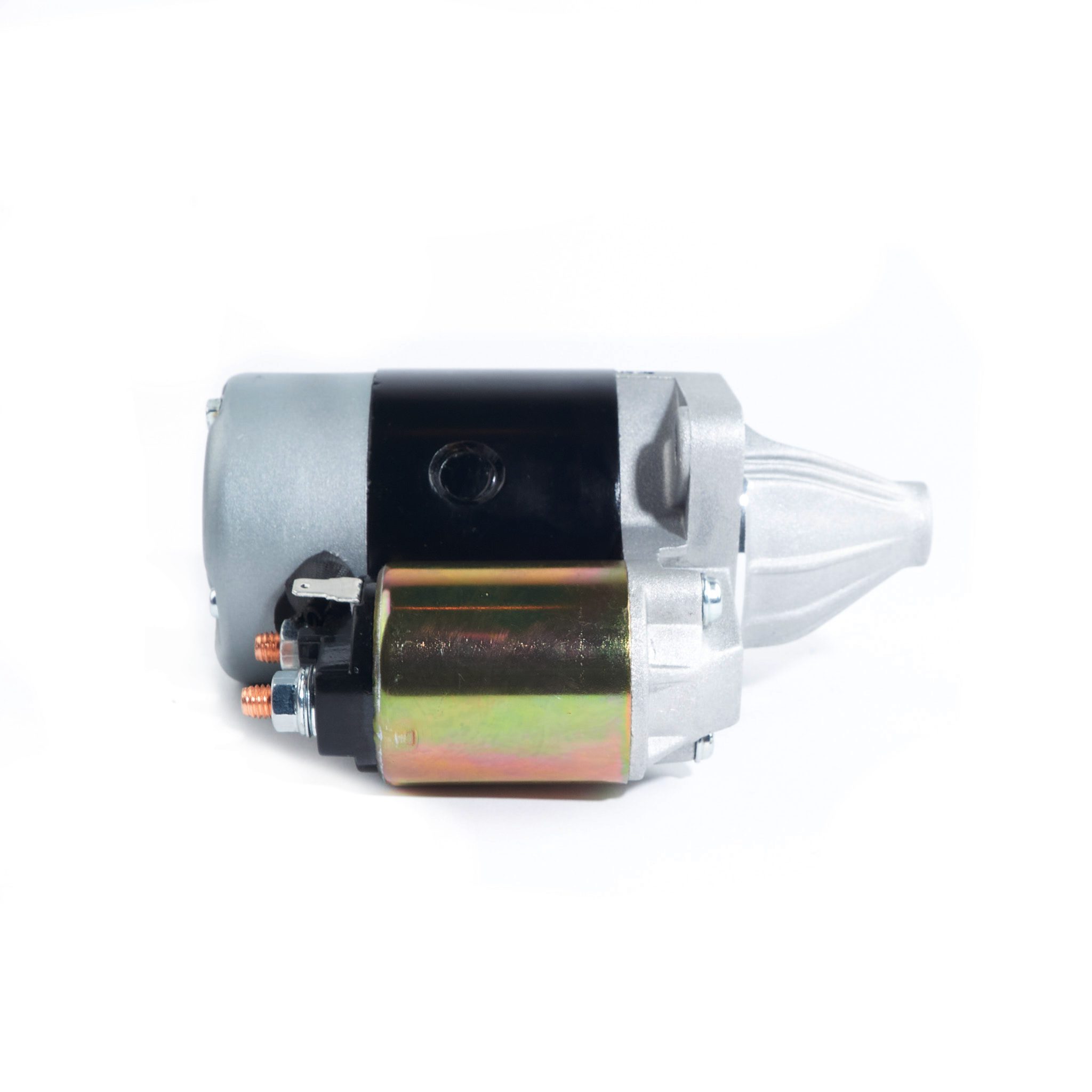

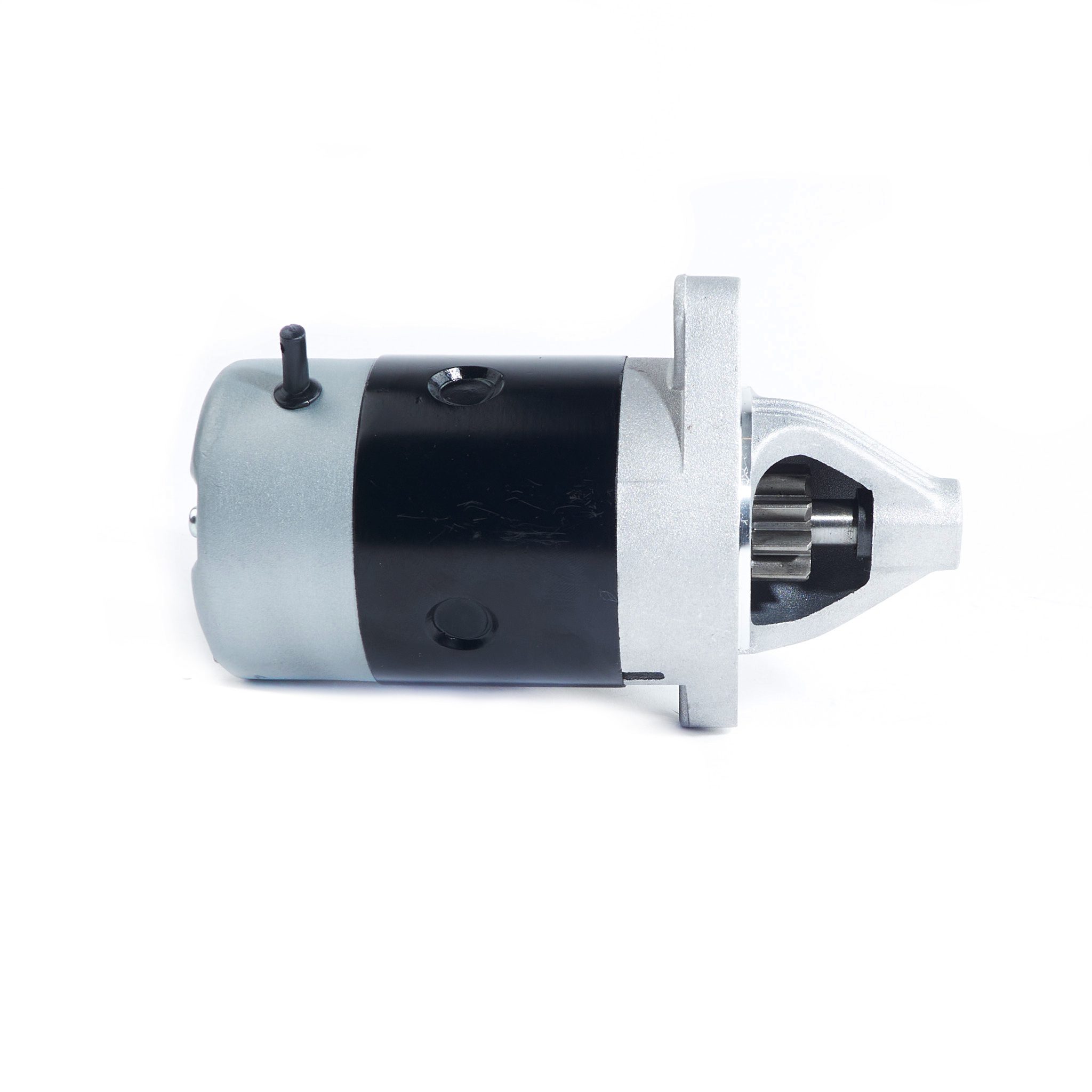

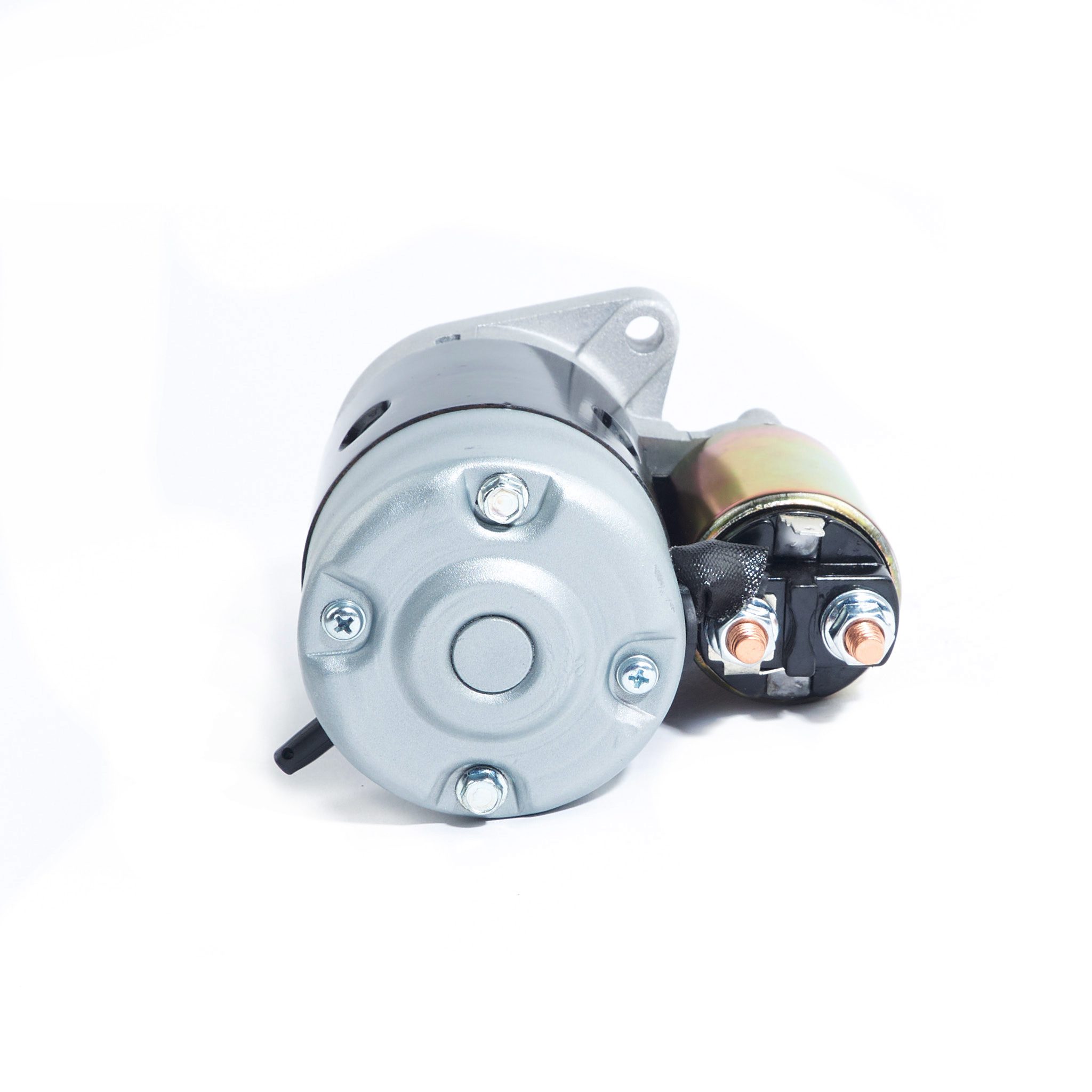

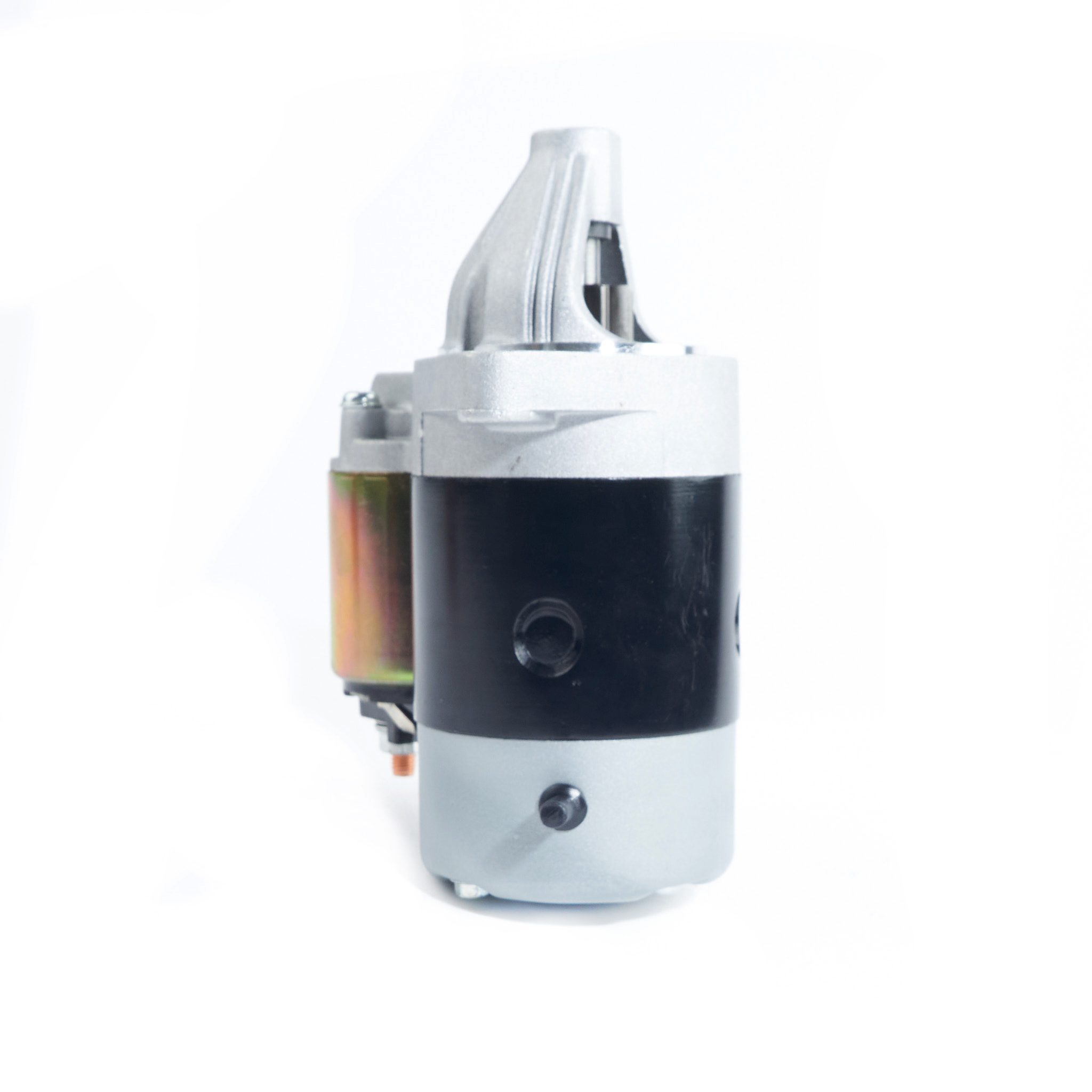

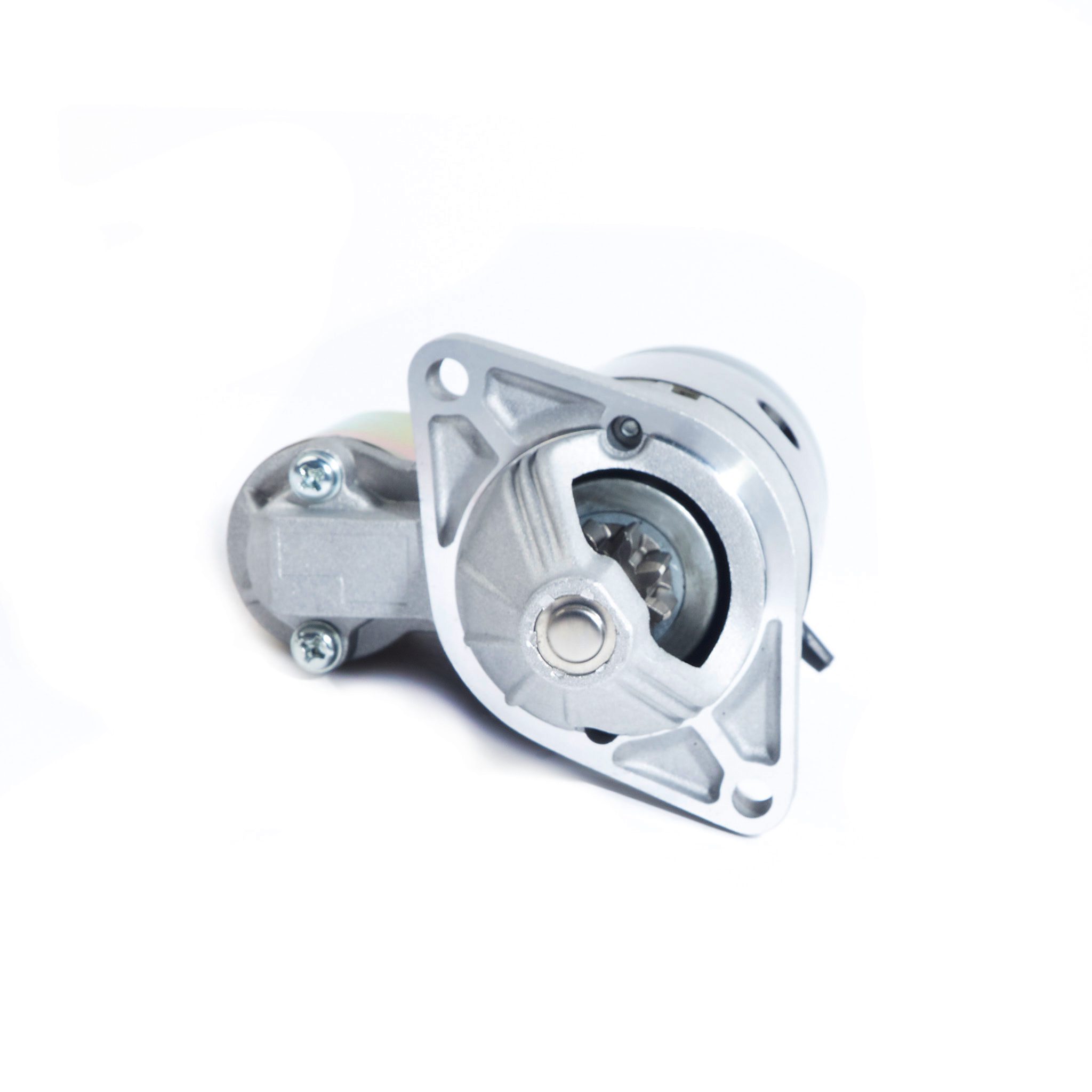

Starter Motor Kubota D750 / D850 / D950 / Z-series – Nanni & Kubota Marine Diesel

Description

Replacement 12V starter motor for compact marine diesel engines based on the small Kubota Z- and D-blocks. These blocks are used in, among others, Nanni N2-series inboard motors and comparable Kubota marine diesels.

Suitable for the following marine engines

Suitable for marine engines with Kubota blocks D600, D750, D850, D950, Z400, Z430, Z500, Z650 and Z-600A, as used in Nanni N2.10 and N2.14 and compact Kubota inboard diesels.

Technical specifications

• Voltage: 12 V
• Power: 0.8 kW
• Number of teeth: 9
• Mounting flange (Ø): 66.0 mm
• Connection B+: M8
• Rotation: CW (clockwise)

OEM reference numbers

028000-3500, 028000-3501, 028000-4520, 028000-7460, 028000-7461, 15213-63010, 15231-63010, 15271-63010

Note: Always check the number of teeth, mounting flange and rotation direction against your original starter motor before ordering.
