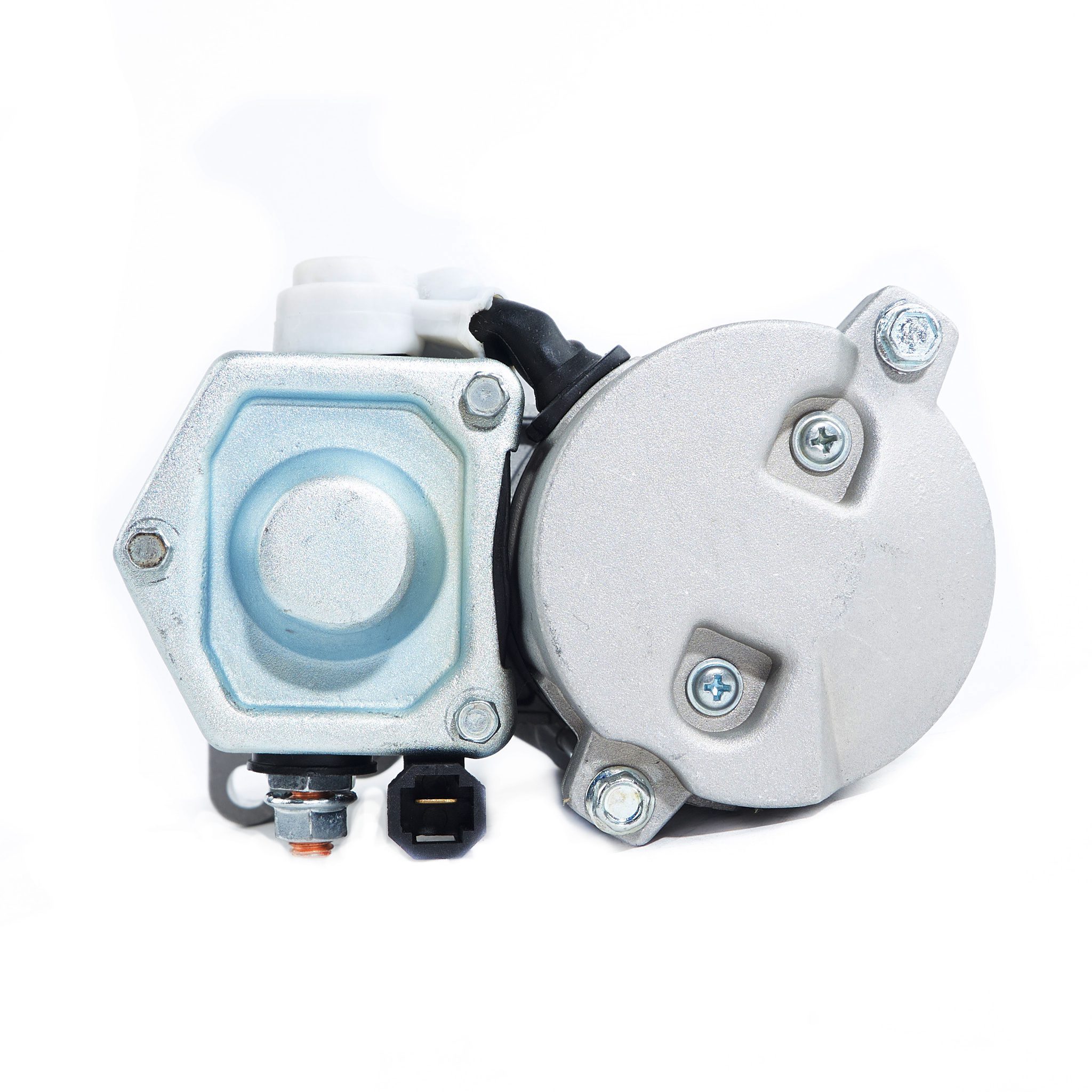

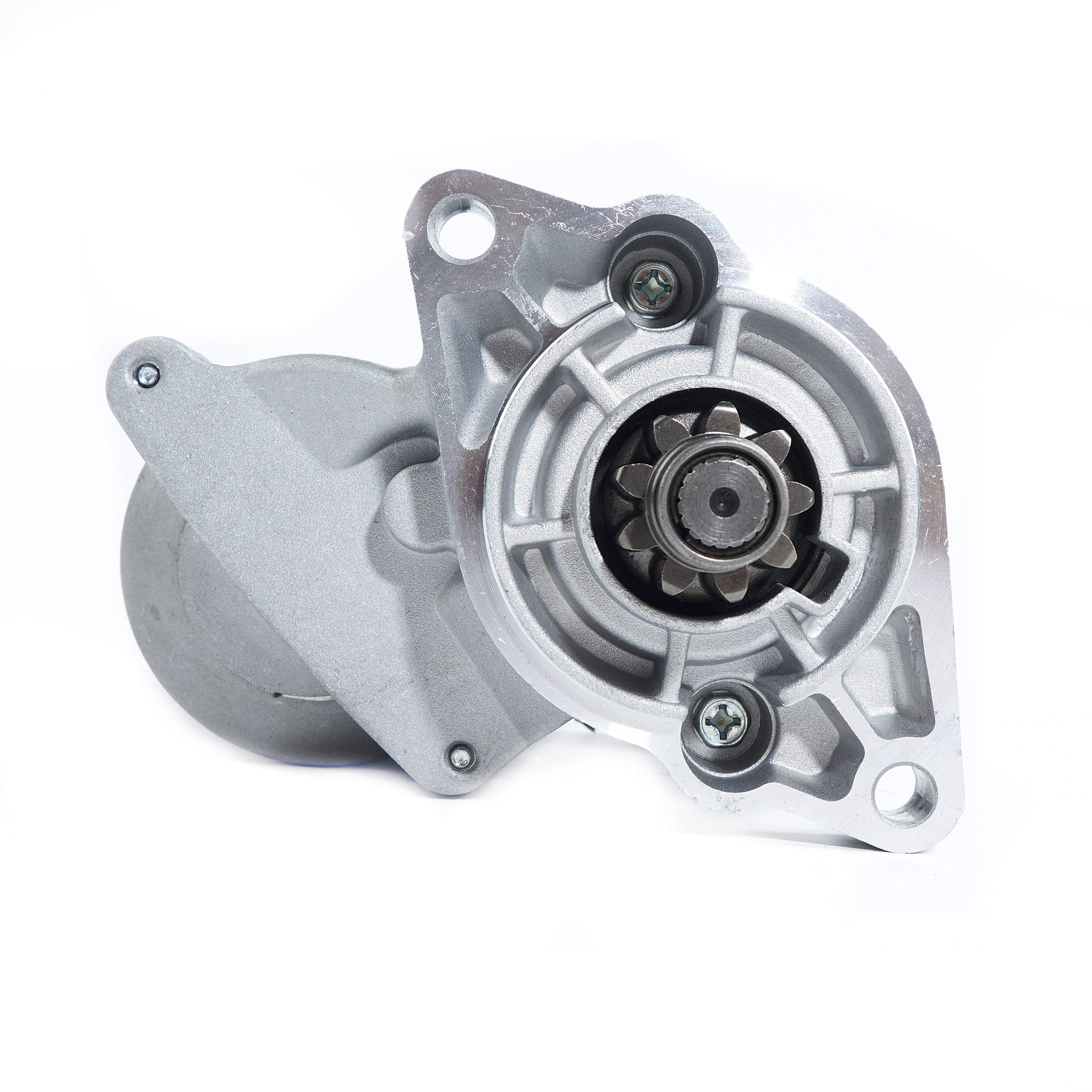

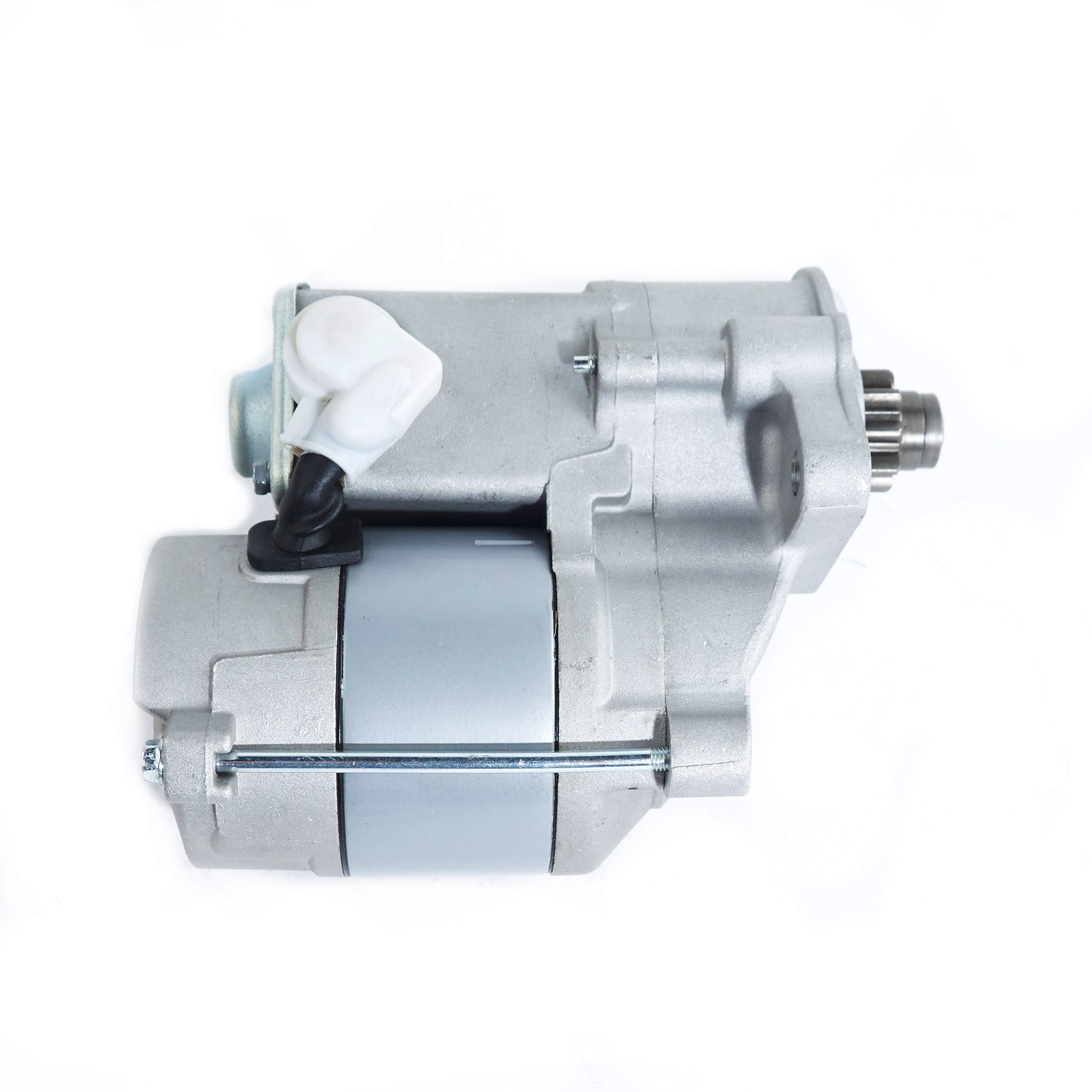

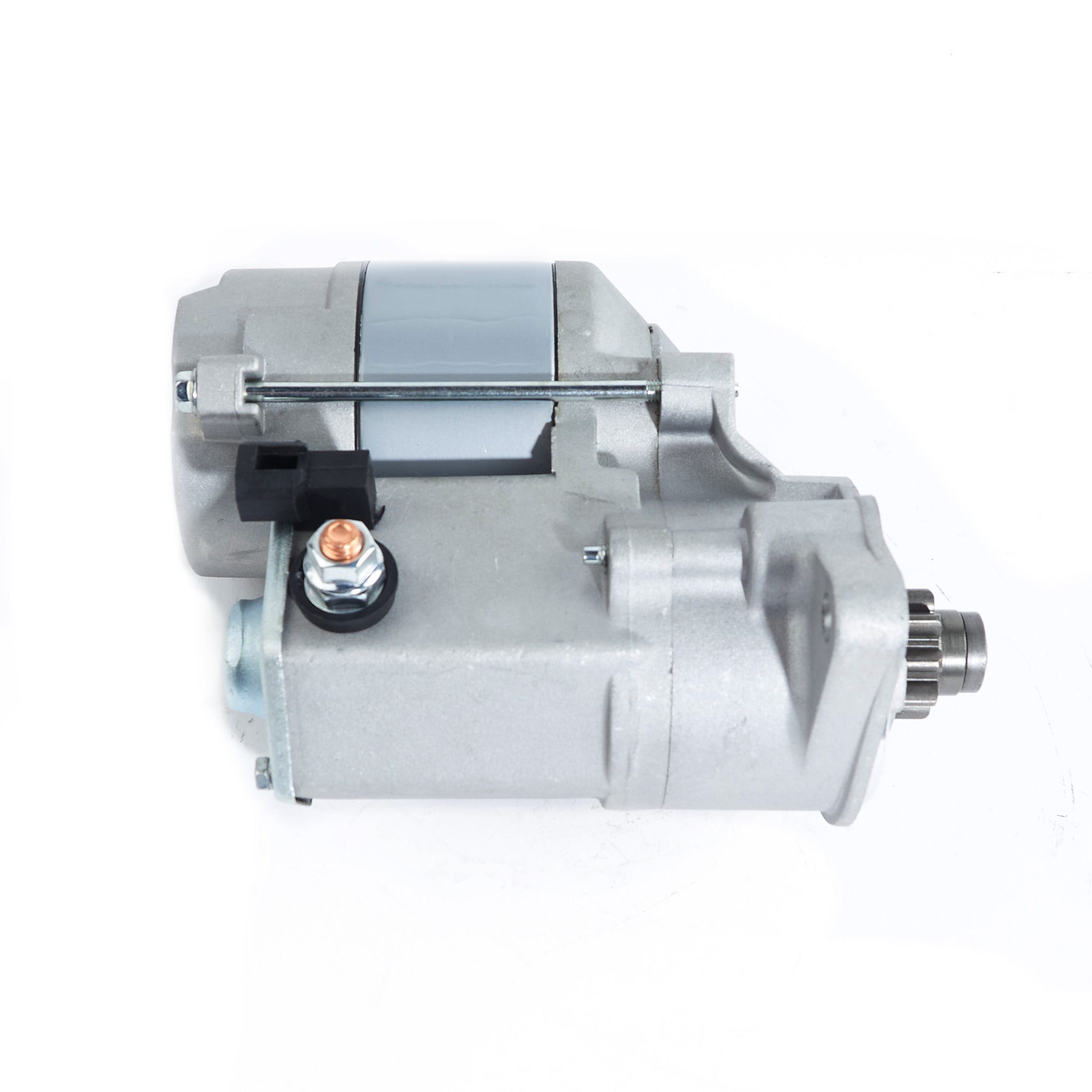

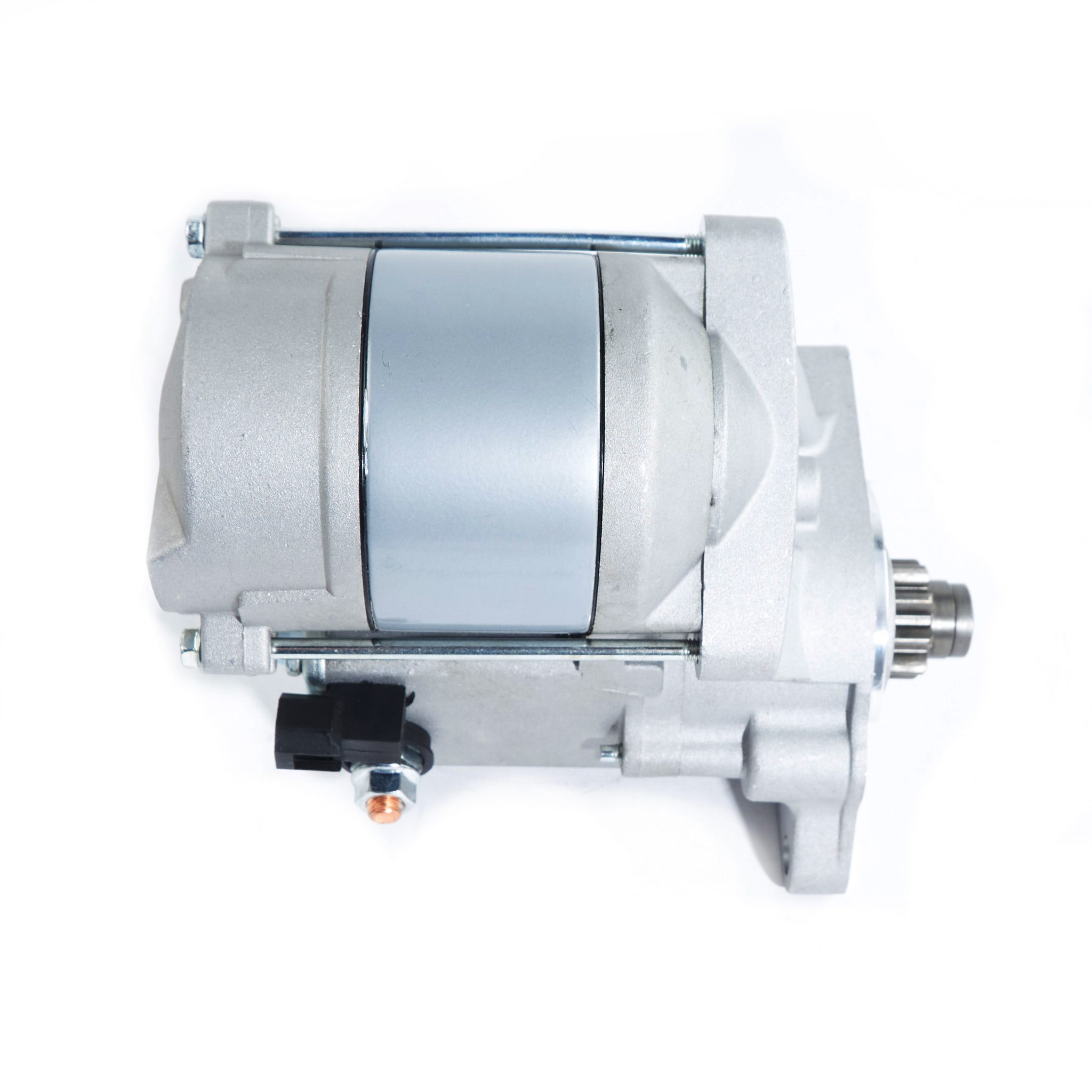

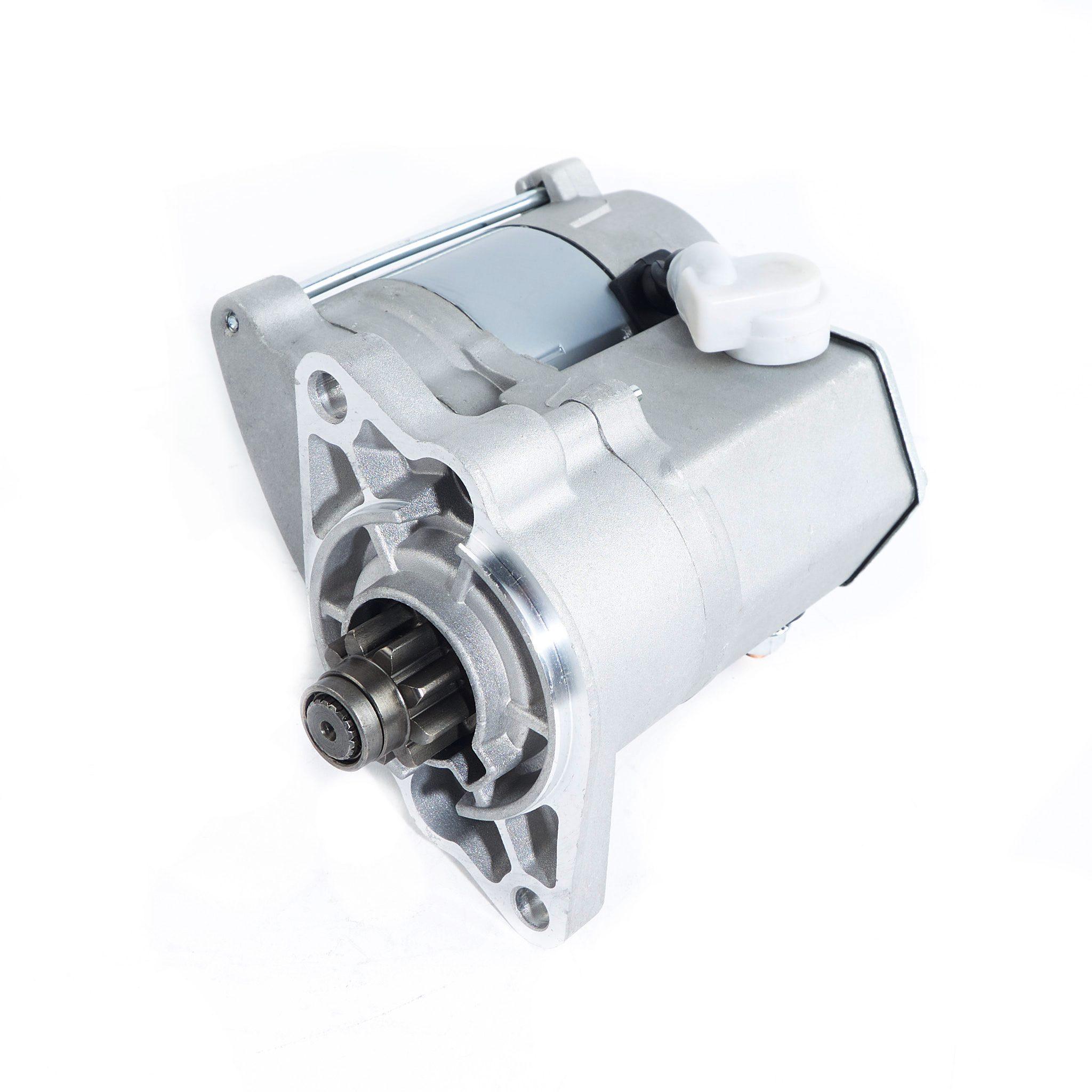

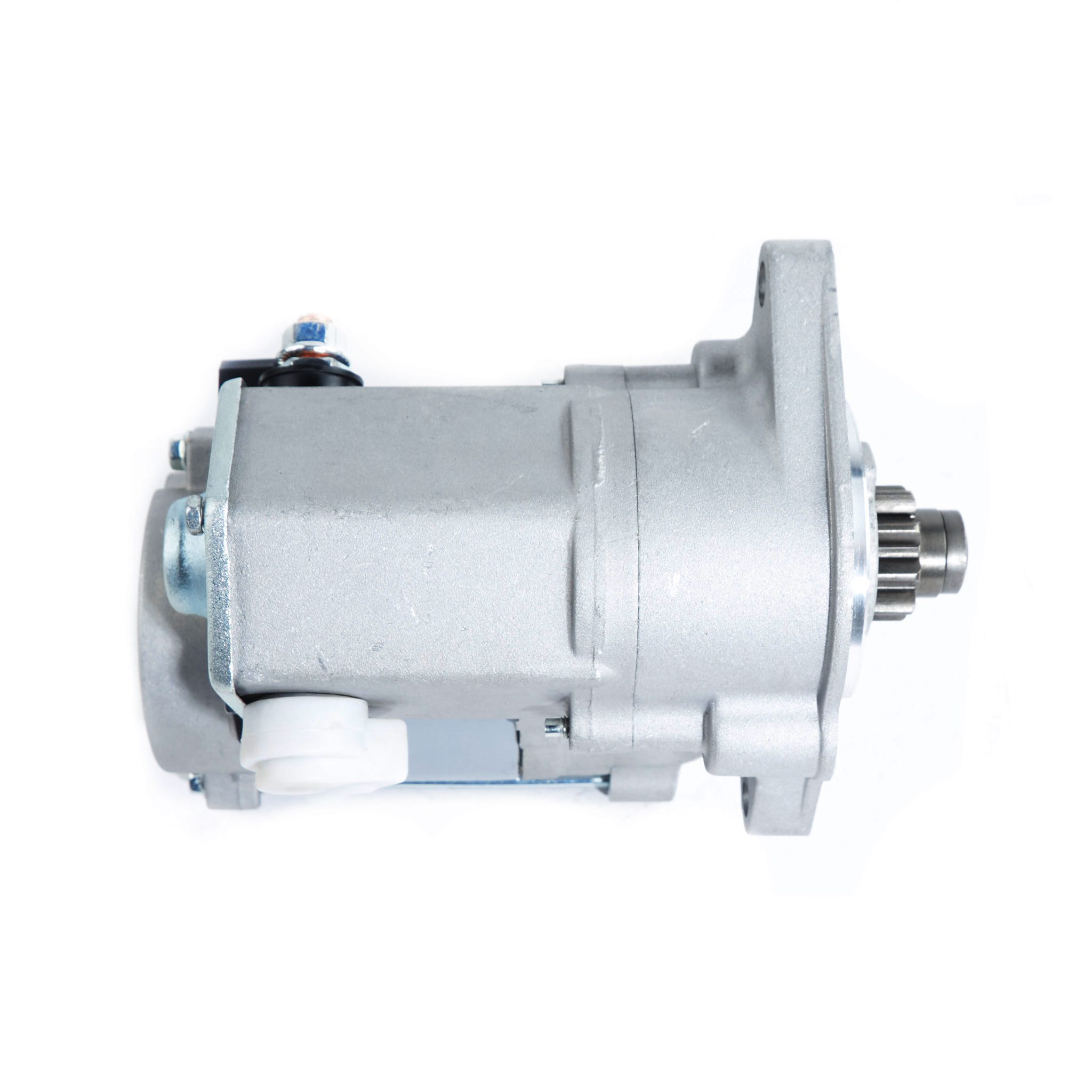

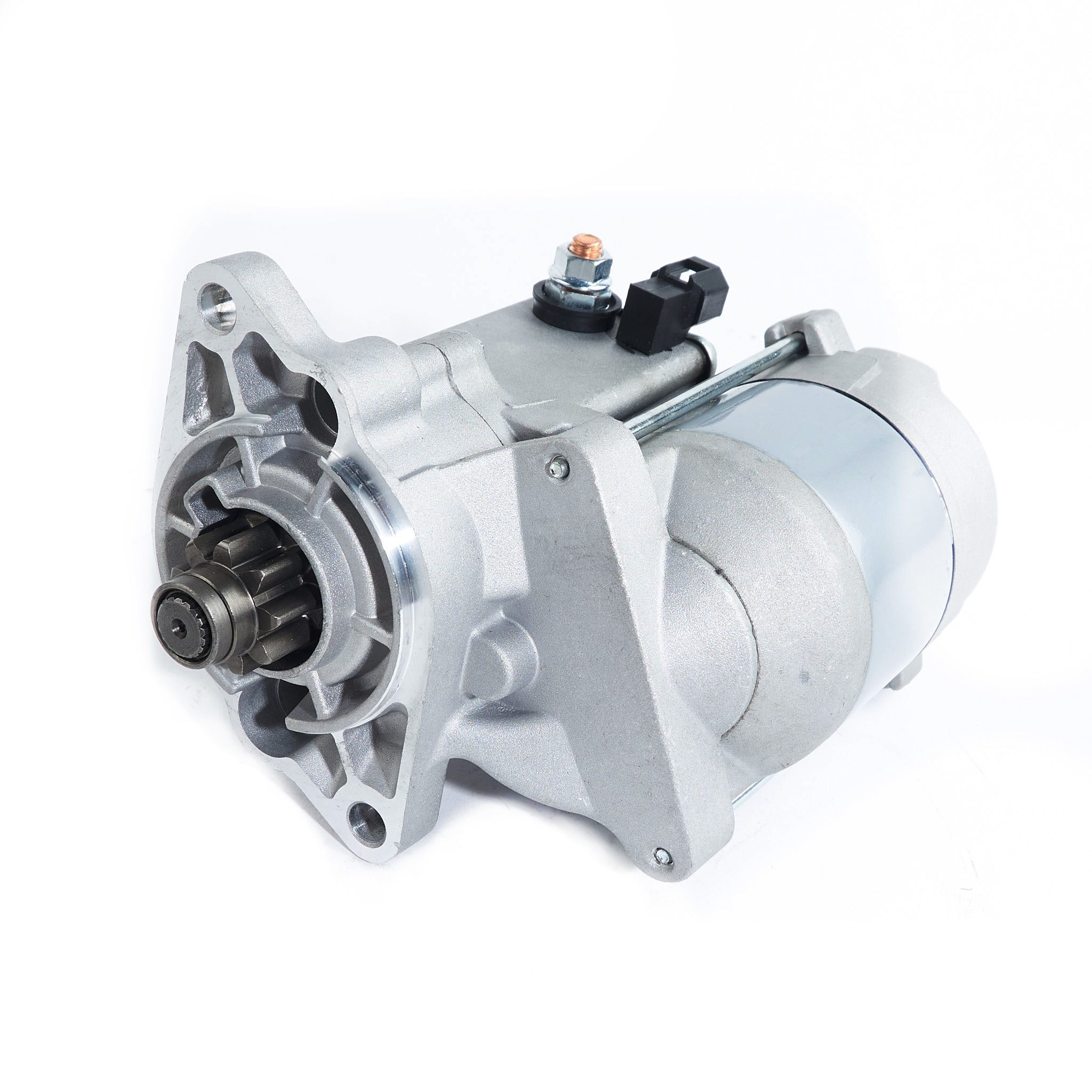

Starter Motor Kubota D722 / D905 / D1005 / D1105 / V1505 – Beta Marine & Nanni Diesel

Description

Replacement 12V starter motor for marine diesel engines based on the Kubota engine block. Kubota supplies the base engine for various marinized brands; this starter fits the blocks mentioned below as used by, among others, Beta Marine and Nanni Diesel.

Suitable for the following marine engines

Suitable for marine engines with Kubota blocks D722, D902, D905, D950, D1005, D1105, D1305, V1205, V1305, V1505, Z600 and Z602 — used in, among others, Beta Marine (including Beta 14, 16, 20, 25, 28, 30) and Nanni Diesel marine engines.

Technical specifications

• Voltage: 12 V
• Power: 1.4 kW
• Number of teeth: 9
• Mounting flange (Ø): 66.0 mm
• Drive gear base position: 18.0 mm
• B+ connection: M8
• Number of mounting holes: 2
• Rotation: CW (clockwise)

OEM reference numbers

228000-0150, 228000-1530, 228000-1531, 16611-63010, 16611-63011, 16611-63012, 16611-63013, 16614-63010, 16271-63012, 19269-63010, 19269-63011, 19269-63012, 19269-63013, 15504-36010, 19090-15741, 19090-17861, 19090-17862, 25-15520-00

Note: Always check the number of teeth, mounting flange and rotation direction against your original starter motor before ordering.
