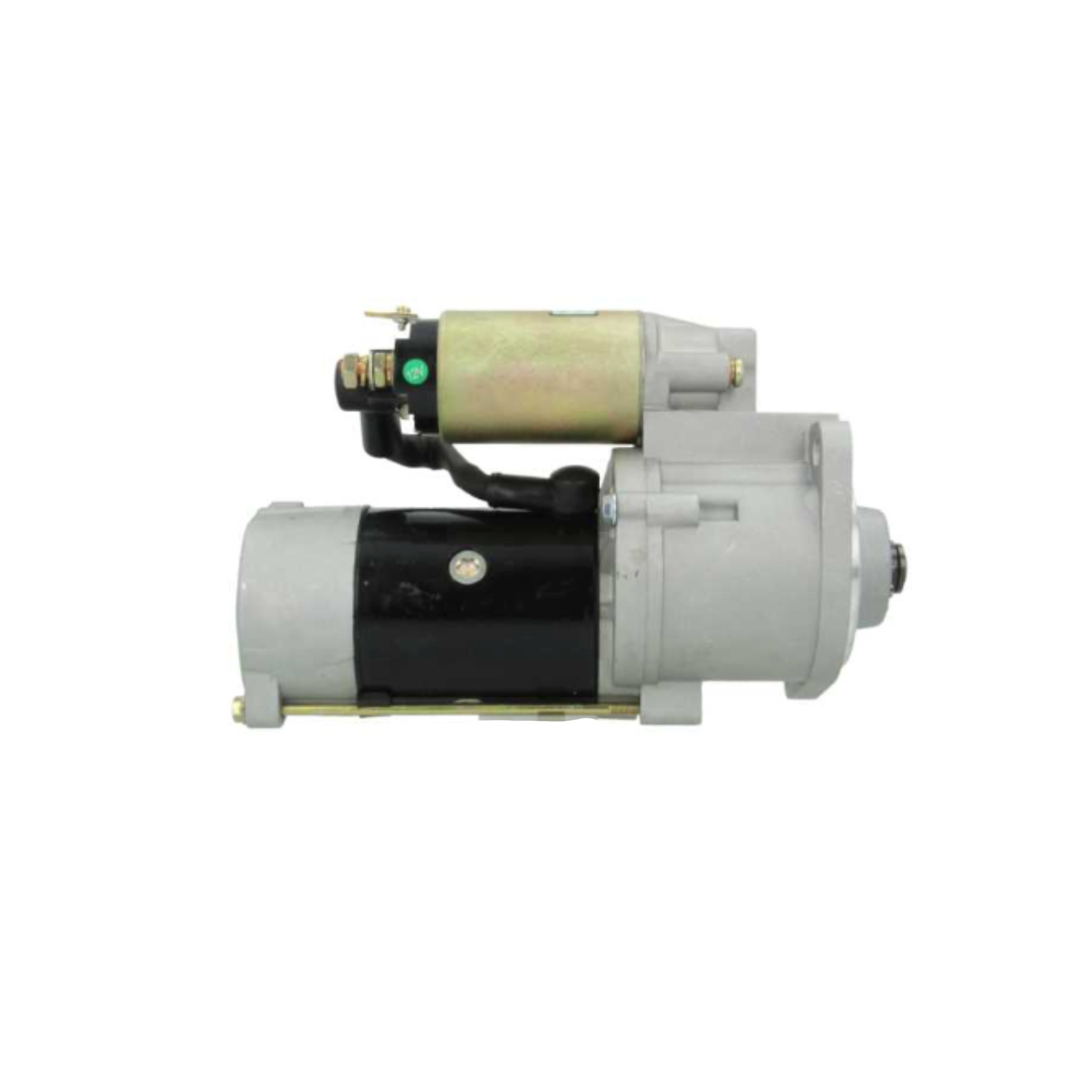

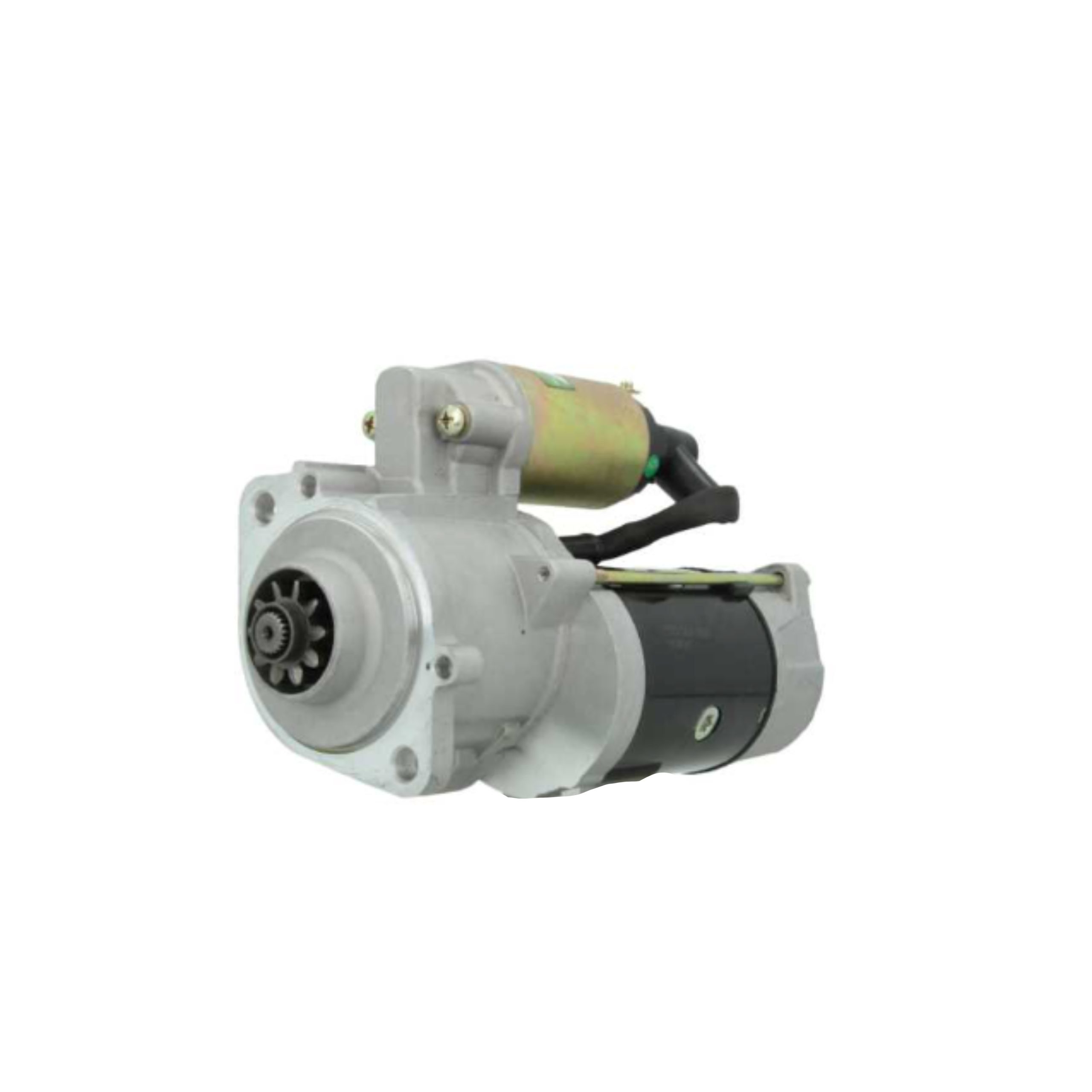

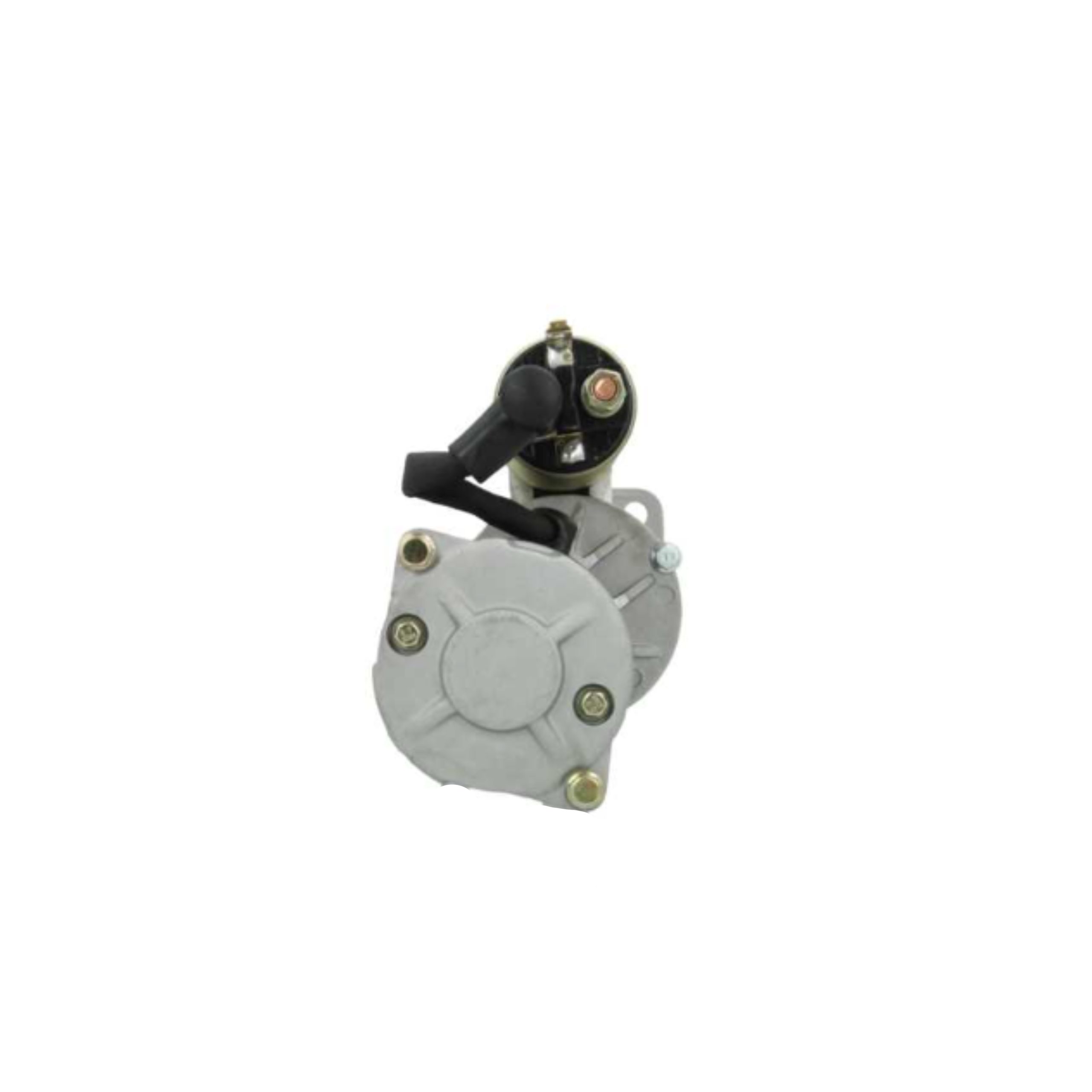

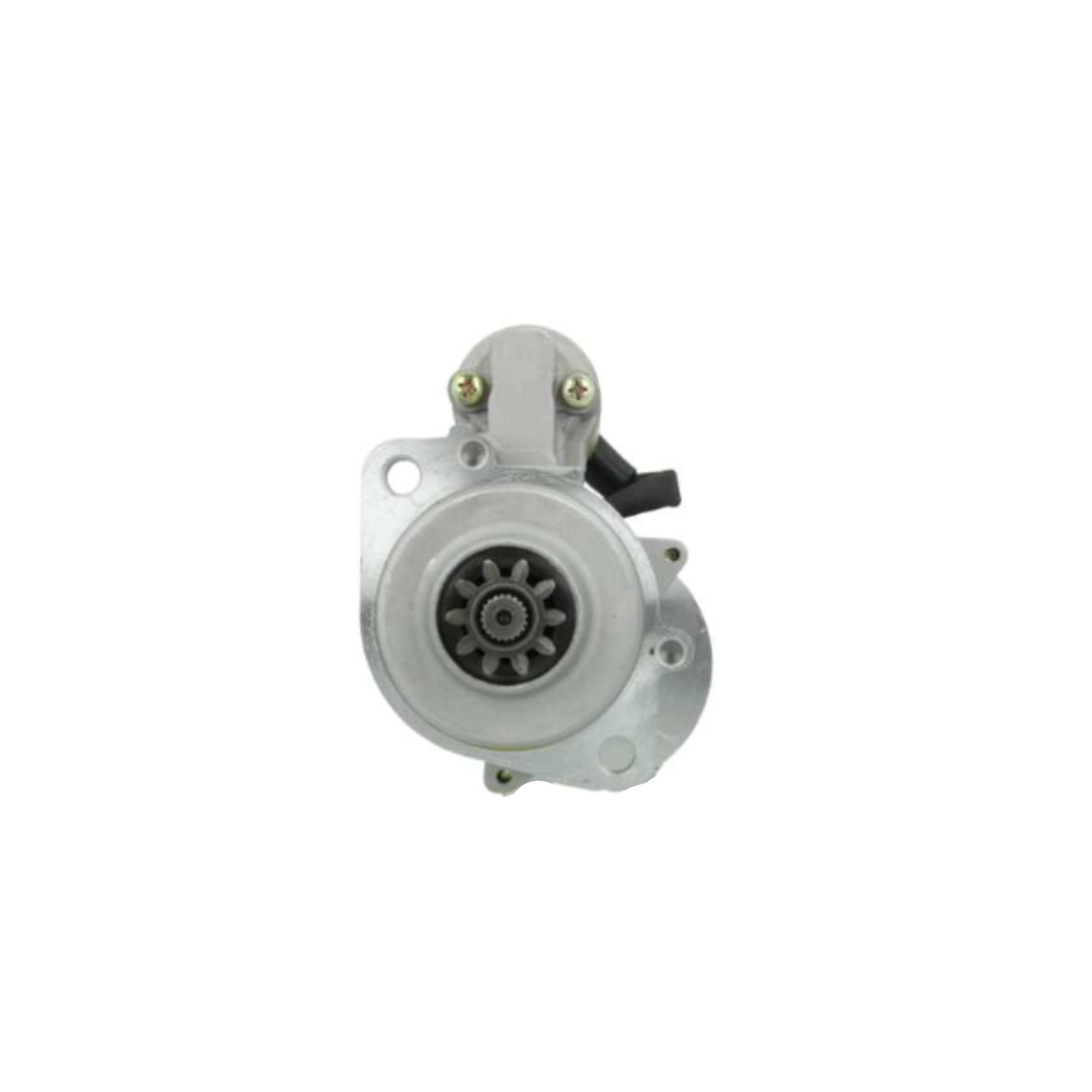

Starter Motor Mitsubishi S4Q / S4Q2 – Solé Diesel Marine Engine (3.0 kW)

Description

Extra powerful 12V starter motor (3.0 kW) for heavier marine diesel engines and marine generators based on the Mitsubishi S4Q block. Durable construction for reliable starts under demanding conditions.

Suitable for the following marine engines

Suitable for Mitsubishi marine engines with the S4Q / S4Q2 / S4S block, as used in Solé Diesel G-20M-15, G-20T-15, G-35M-15 and G-35T-15, and the Solé Mini-62 and Mini-74 marine engines.

Technical specifications

• Voltage: 12 V
• Power: 3.0 kW
• Number of teeth: 10
• Mounting flange (Ø): 82.0 mm
• Pinion base position: 24.0 mm
• B+ connection: M8
• Number of mounting holes: 2
• Position: +140°
• Rotation: CW

OEM reference numbers

M003T67671, M3T67671, 32A66-00300, 32A66-00301

Note: always check the number of teeth, mounting flange and rotation direction against your original starter motor before ordering.
