Starter Motor Mitsubishi S4L / S4L2 – Vetus, Solé Diesel & Craftsman Marine

Description

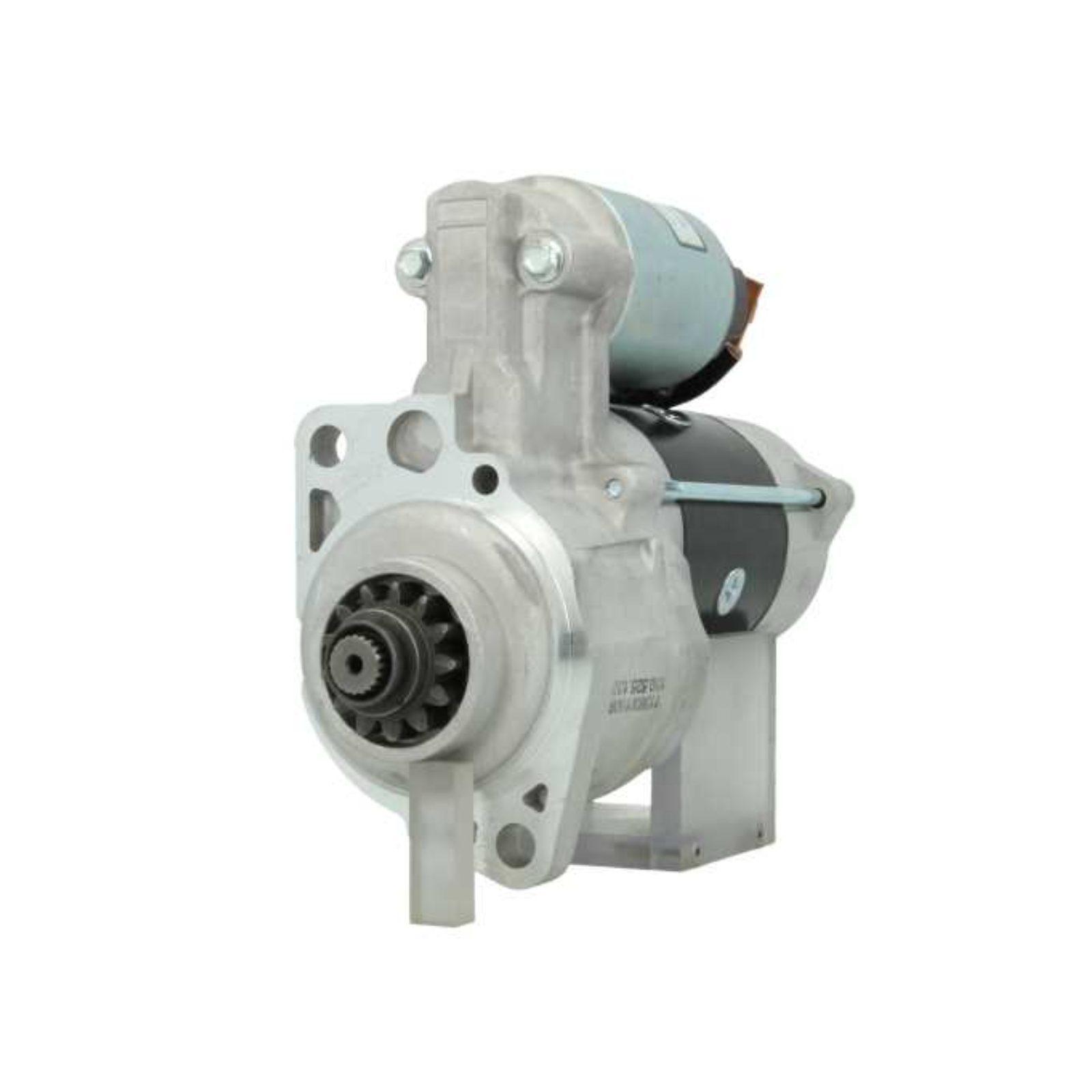

Replacement 12V starter motor for marine diesel engines based on the Mitsubishi S4L block. This block is marinized by various manufacturers for inboard engines and marine generators.

Suitable for the following marine engines

Suitable for Mitsubishi marine engines with the S4L / S4L2 block, as used in Vetus M4.14, M4.15, M4.17, M4.35, M4.45, M4.55 and M4.56; Solé Diesel Marine Mini 44 and Mini 55 and the G-15 / G-25 marine generators; Craftsman Marine CM4.42; JF Marine Power JF15-1500; and Mastervolt Whisper / WhisperPower marine generators.

Technical specifications

• Voltage: 12 V
• Power: 2.0 kW
• Number of teeth: 13
• Total length: 240 mm
• Mounting flange (Ø): 76.8 mm
• Connection B+: M8
• Number of mounting holes: 2
• Position: +157°
• Rotation: CW

OEM reference numbers

31A66-00101, 31A66-00102, 195-8486, M002T55271, M002T56271, M002T56272, M003T61171, MM409411, MM409412, MM409413

Note: Always check the number of teeth, mounting flange and rotation direction against your original starter motor before ordering.
