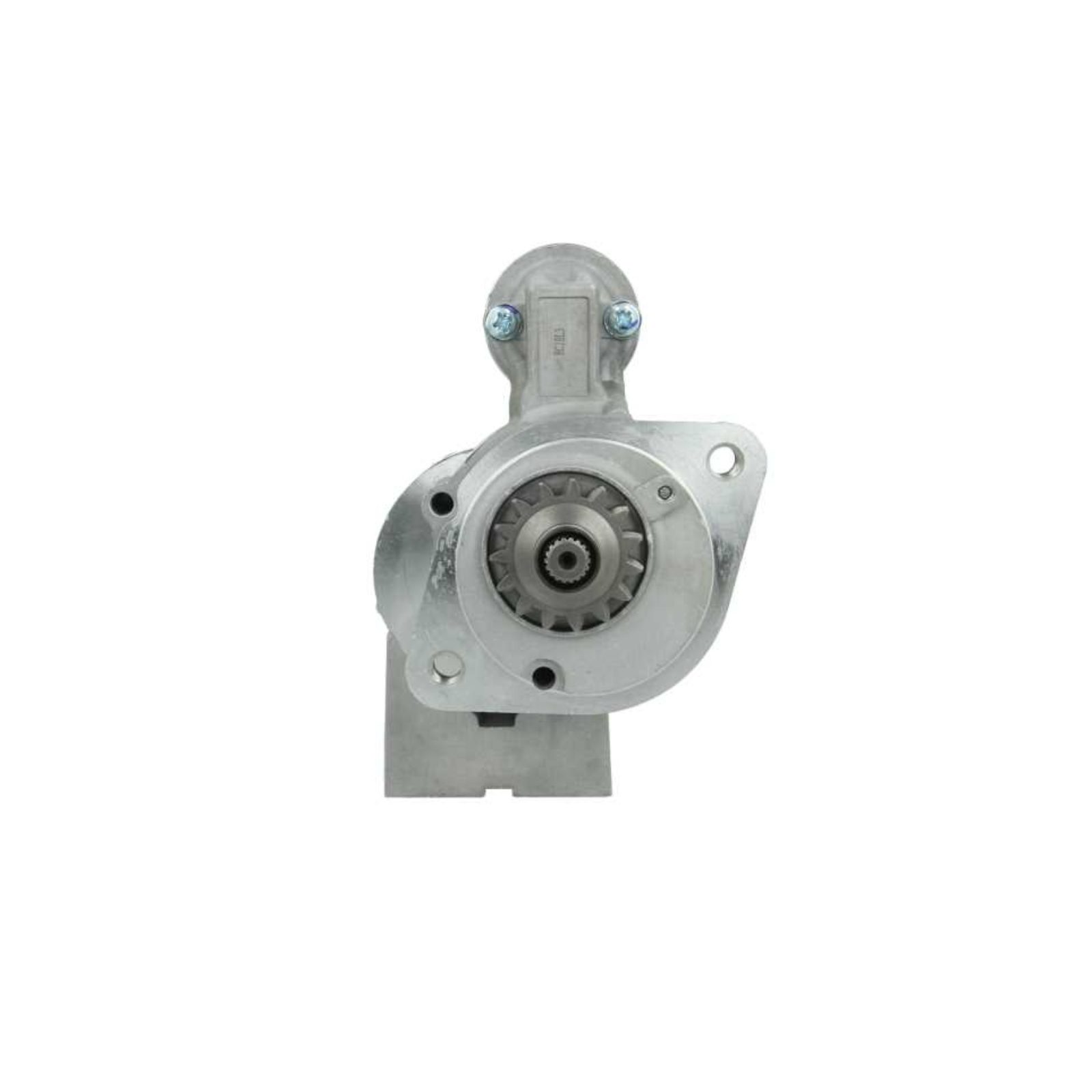

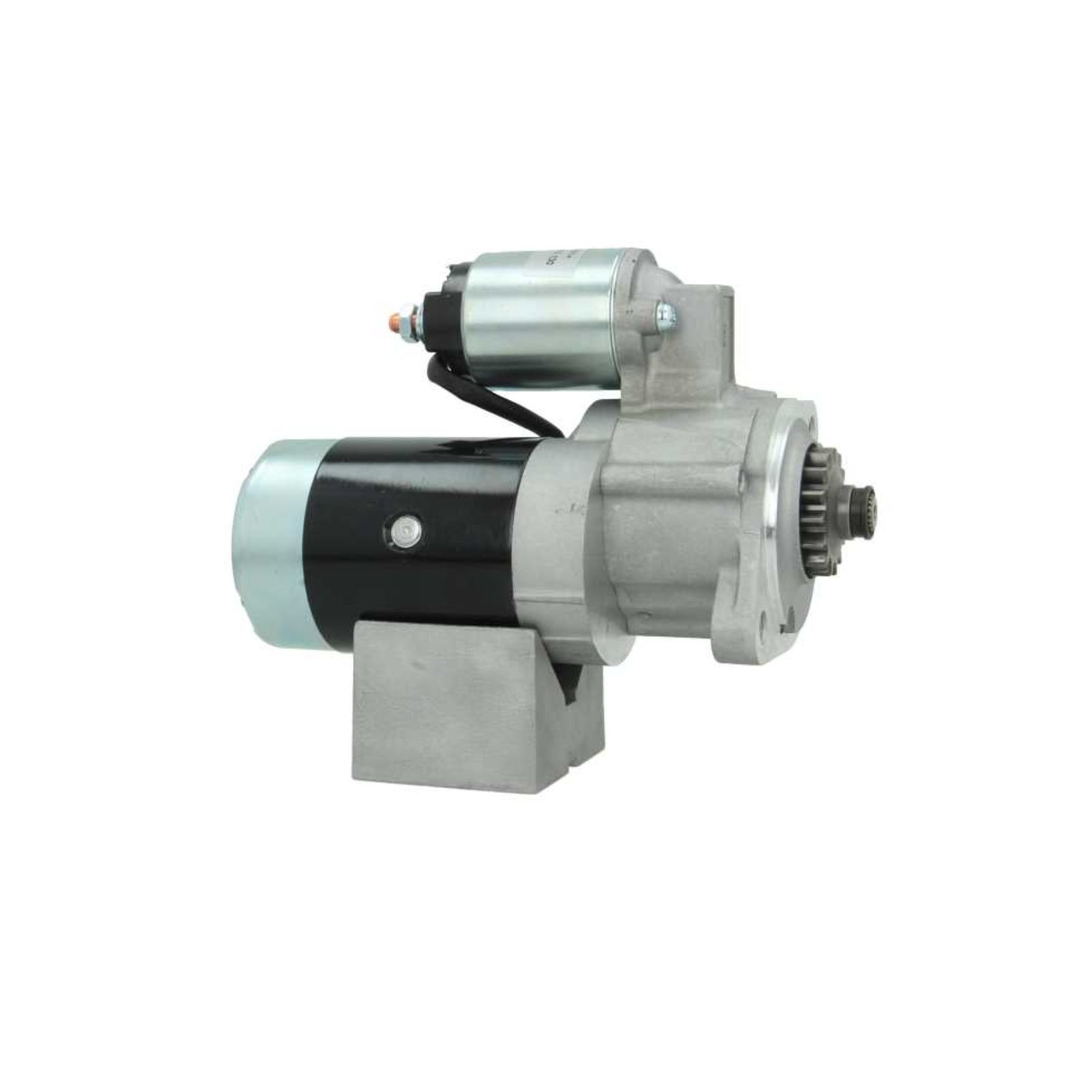

Starter Motor Mitsubishi L2A / L2E / L3A / L3E – Vetus & Solé Diesel Marine Engine

Description

Replacement 12V starter motor for marine diesel engines based on the Mitsubishi L-series. These Mitsubishi blocks form the basis of various marinized engines and marine generators.

Suitable for the following marine engines

Suitable for Mitsubishi marine engines with blocks L2A, L2E, L3A, L3C and L3E, as used in Vetus M2.06 and M3.28, and Solé Diesel marine and saildrive engines (including Mini 16, Mini 17, Mini 26 Sail-Drive, G-6M-15, G-8M-3, G-8T-3, G-15M-3, G-15T-3 and Mini 11/E generator set).

Technical specifications

• Voltage: 12 V
• Power: 1.6 kW
• Number of teeth: 15
• Total length: 225 mm
• Mounting flange (Ø): 76.6 mm
• Connection B+: M8
• Number of mounting holes: 2
• Position: +55°
• Rotation: CW

OEM reference numbers

MM317600, MM317602, MM317604, M2T50271, M2T50281, M2T50285, M2T53681, E7410733, E7412897, E7414742

Note: always check the number of teeth, mounting flange and rotation direction against your original starter motor before ordering.
