Injector nozzle Solé Diesel Mini 11 to Mini 74 | SM-105 – Vetus M2/M3/M4 – Craftsman Marine – JF Marine Power

Description

High-quality injector nozzle for popular marine inboard diesels from Solé Diesel, Vetus, Craftsman Marine and JF Marine Power. A worn nozzle results in a poor spray pattern, causing difficult starting, smoke, and power loss. This nozzle restores your marine engine's combustion to factory specifications.

✔️ Perfect spray pattern for a smooth-running and clean-burning marine engine

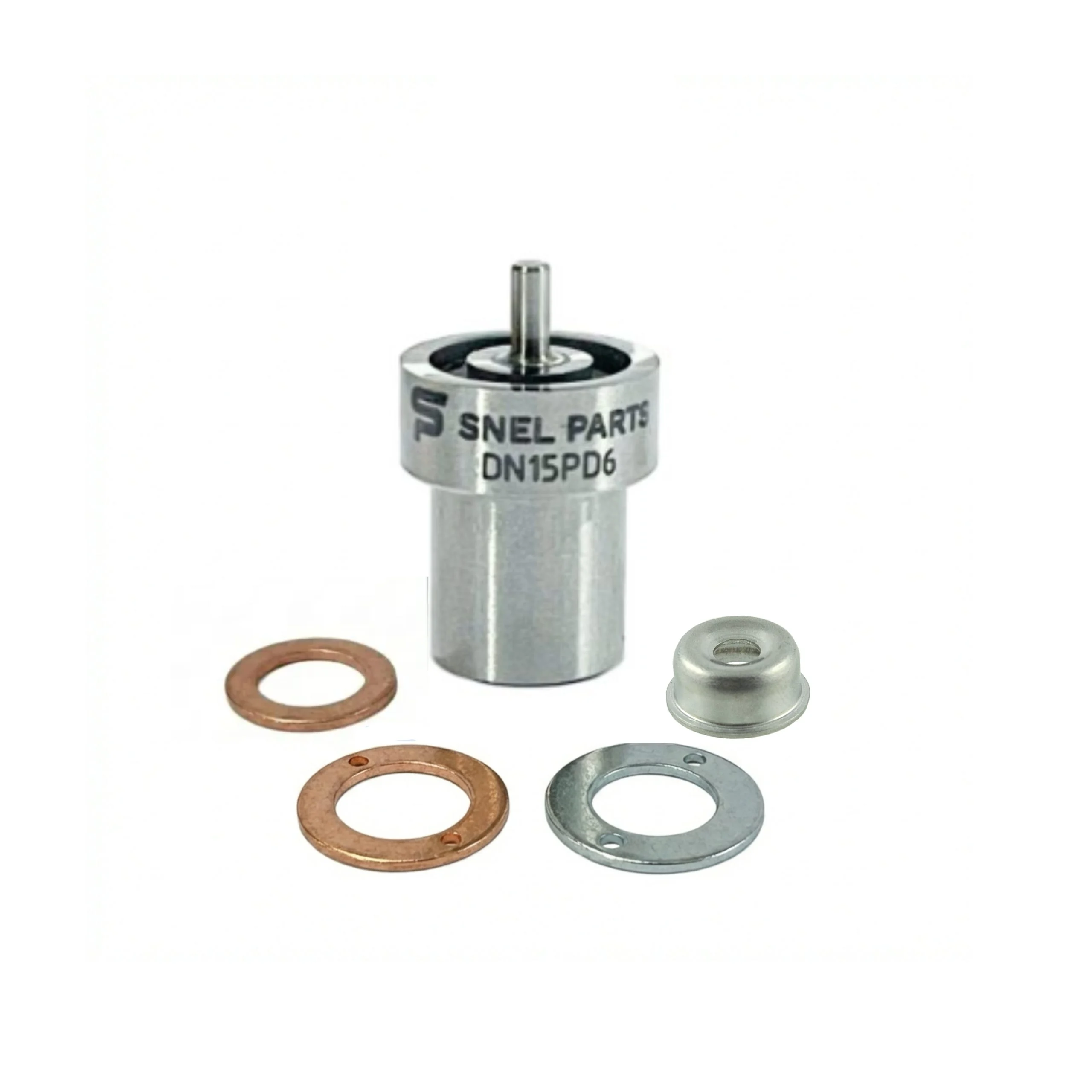

✔️ Supplied including complete sealing kit: heat shield, copper washer, and leak-off line seal
✔️ Exact fit according to OEM specifications – ready for direct installation

Technical specifications

• Opening pressure (setting value): approx. 120 – 130 bar (12.0 – 13.0 MPa)
• Injector tightening torque: 35 – 40 Nm
• Nozzle code: DN15PD6

This nozzle also fits Solé Diesel generator sets G-8M-3, G-8T-3, G-6M-15, G-6T-15, G-10M-15, G-10T-15, G-15M-3, G-15T-3, G-15M-15, G-15T-15, G-20M-15, G-20T-15, G-25M-3, G-25T-3, G-35M-15 and G-35T-15.

Suitable for

• Solé Diesel: Mini 11, Mini 11/E, Mini 17, Mini 26, Mini 33, Mini 44, Mini 55, Mini 62, Mini 74, SM-105 (also Saildrive versions)
• Vetus: M2.04, M2.C5, M2.D5, M2.06, M3.09, M3.28, M4.15, M4.17
• Craftsman Marine: CM2.16, CM3.27, CM4.42
• JF Marine Power: JF6-1500, JF10-1500, JF15-1500, JF20-1500, JF30-1500, JF40-1500, JF44-1500

OEM for reference

• MD603660
• 093400-05060
• DN15PD6
