Fuel injector complete Solé Diesel Mini 11 to Mini 74 | SM-105 – Vetus M2/M3/M4 – Craftsman Marine – JF Marine Power

Description

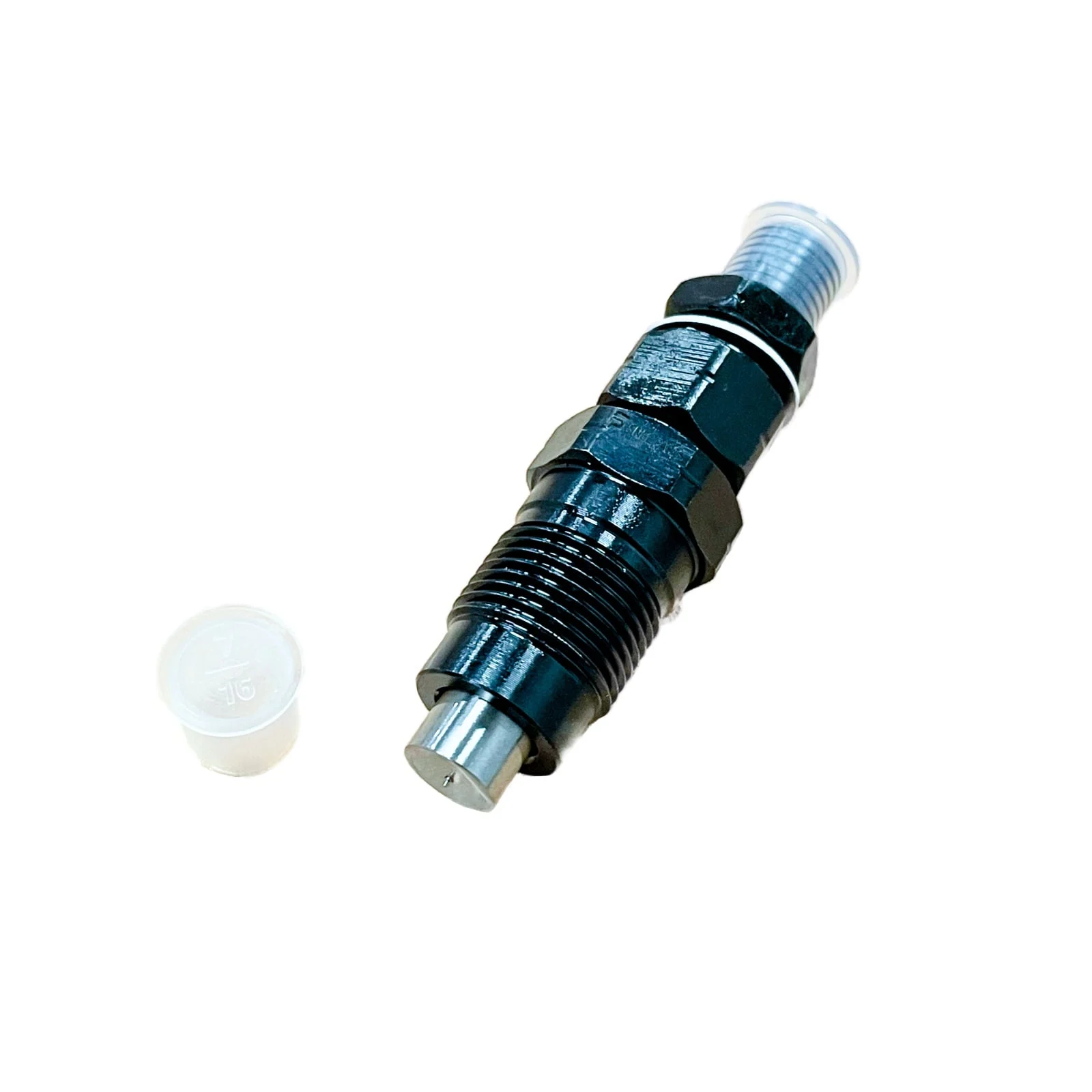

Complete fuel injector for marine diesel engines by Solé Diesel, Vetus, Craftsman Marine and JF Marine Power: holder and nozzle fully assembled and adjusted to the correct opening pressure. Marine engines experience variable loads and long periods of inactivity; therefore, it is recommended to replace fuel injectors as a set for smooth and even running.

✔️ Fully assembled and adjusted to the correct opening pressure – ready for immediate installation

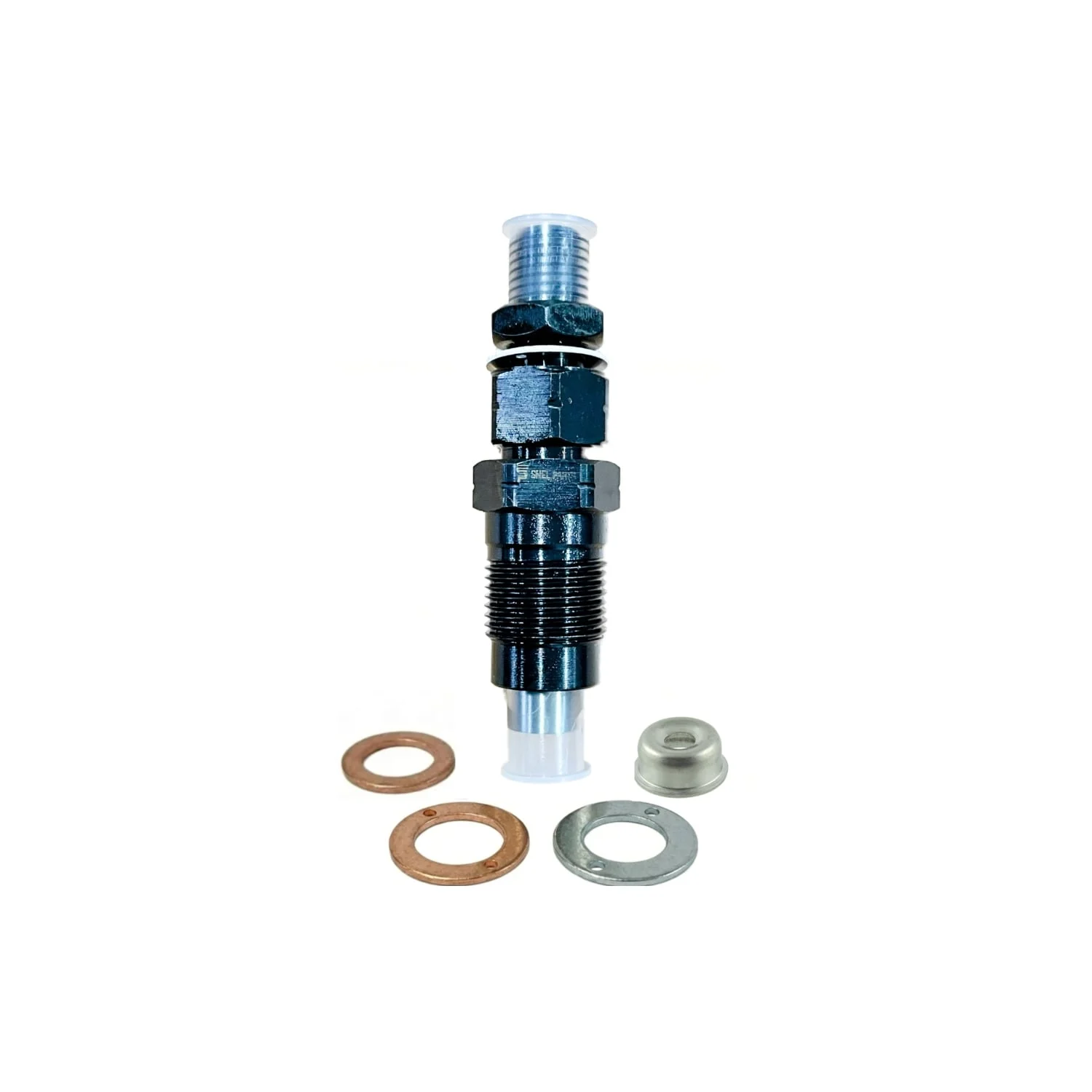

✔️ Supplied including complete sealing kit: heat shield, copper washer and leak-off line seal
✔️ Exact fit according to OEM specifications with sturdy threaded mounting

Technical specifications

• Type: complete injector holder + nozzle
• Mounting: threaded connection
• Note: ensure that threads and the seat in the cylinder head are spotlessly clean and always use a new heat shield

This fuel injector also fits Solé Diesel generator sets G-8M-3, G-8T-3, G-6M-15, G-6T-15, G-10M-15, G-10T-15, G-15M-3, G-15T-3, G-15M-15, G-15T-15, G-20M-15, G-20T-15, G-25M-3, G-25T-3, G-35M-15 and G-35T-15.

Suitable for

• Solé Diesel: Mini 11, Mini 11/E, Mini 17, Mini 26, Mini 33, Mini 44, Mini 55, Mini 62, Mini 74, SM-105 (including Saildrive versions)
• Vetus: M2.04, M2.C5, M2.D5, M2.06, M3.09, M3.28, M4.15, M4.17
• Craftsman Marine: CM2.16, CM3.27, CM4.42
• JF Marine Power: JF6-1500, JF10-1500, JF15-1500, JF20-1500, JF30-1500, JF40-1500, JF44-1500

OEM for reference

• MM435-94101, 093500-3840 (nozzle & holder assy)
• 09311-03840, MM514048
• 09312-70310, MM514047
• 09312-10380, MM501838
• 09317-40070, MM501841
• 09340-05060, MD603660
• 09316-41351, MM514389
• 13826001, 13826002, 13826003, 13826004, 13826006, 13826007, 13826018
