Starter Motor Beta Marine Beta 75 | Beta 90 – 12V 2.5 kW

Description

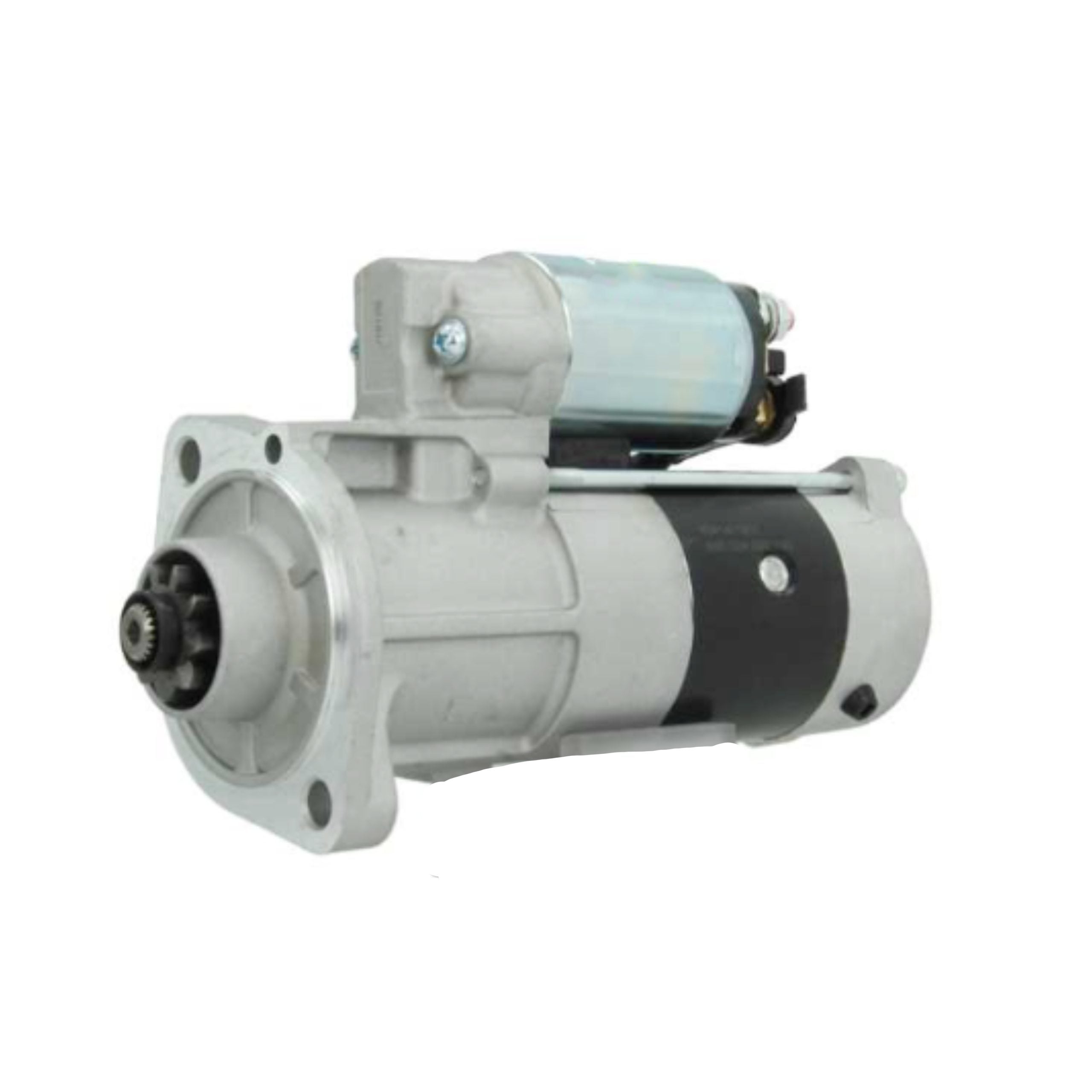

Replacement 12V starter motor for larger Beta Marine inboard marine diesels. This 2.5 kW unit delivers ample torque to start reliably even in cold conditions and with higher compression. Supplied in OEM-equivalent quality, physically identical to the original unit.

✔️ Powerful 2.5 kW starter motor for reliable starting, even after winter storage
✔️ Direct replacement for multiple OEM starter motors

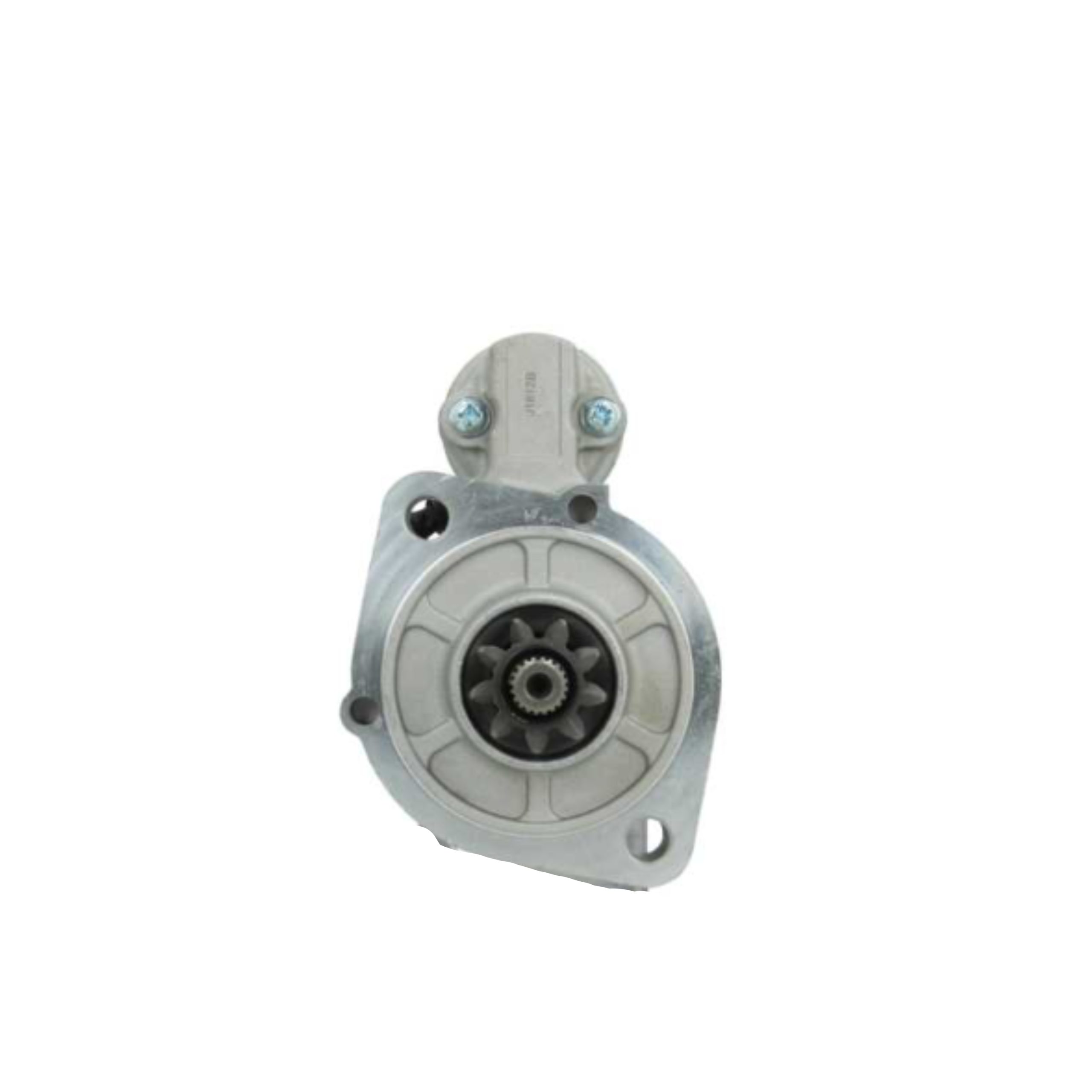

✔️ 9-tooth pinion with 82 mm mounting flange – easily verify against your current unit

Technical Specifications

• Voltage: 12V
• Power: 2.5 kW
• Number of Teeth: 9
• Mounting Flange (Ø): 82 mm
• Drive Pinion Base Position: 27.0 mm
• B+ Connection: M8
• Mounting Holes: 2
• Position: +145°
• Rotation: CW (clockwise)

Compatible with the following marine engines

• Beta Marine: Beta 75 (BV3300), Beta 90 (B3800)

OEM Reference

• 1K012-63010, 1K012-63011, 1K012-63012, 1K012-63013 (also without dash: 1K01263010 to 1K01263013)
• 1G777-63011 / 1G77763011
• M8T50471, M8T50670, M8T50671, M8T50672, M8T50673, M8T50674
• M008T50471, M008T50670, M008T50671, M008T50672, M008T50673, M008T50674

Note: Always verify the number of teeth, mounting flange, and rotation direction against your original starter motor before ordering.
