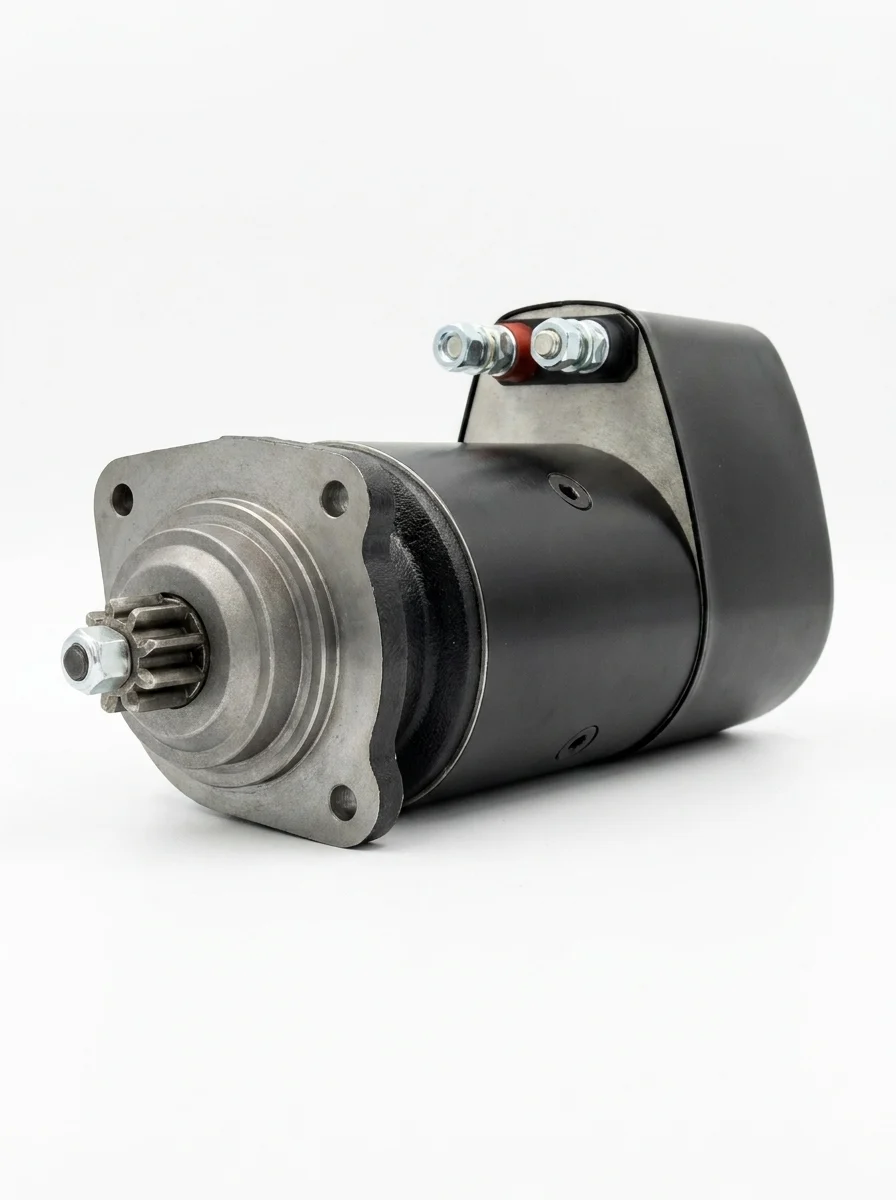

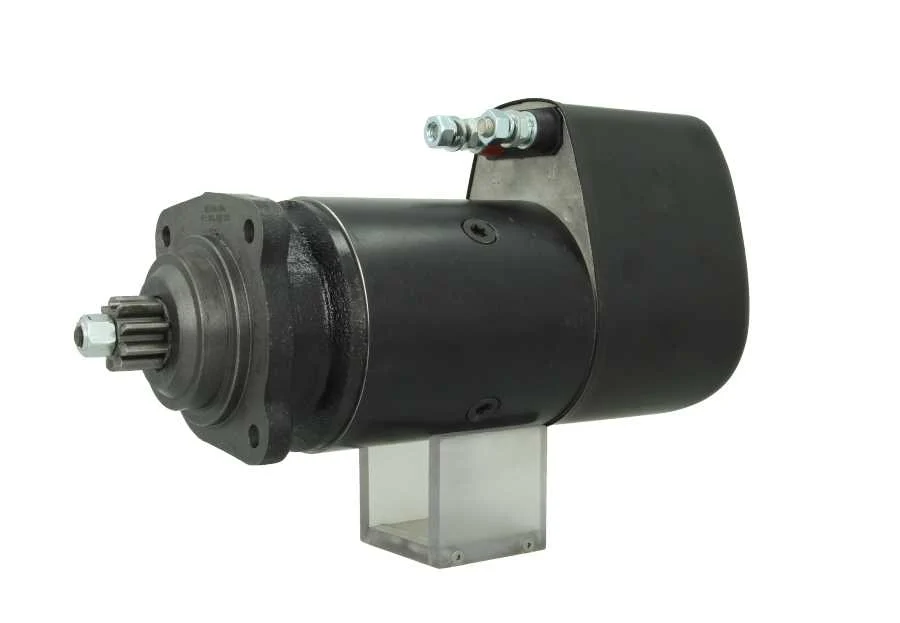

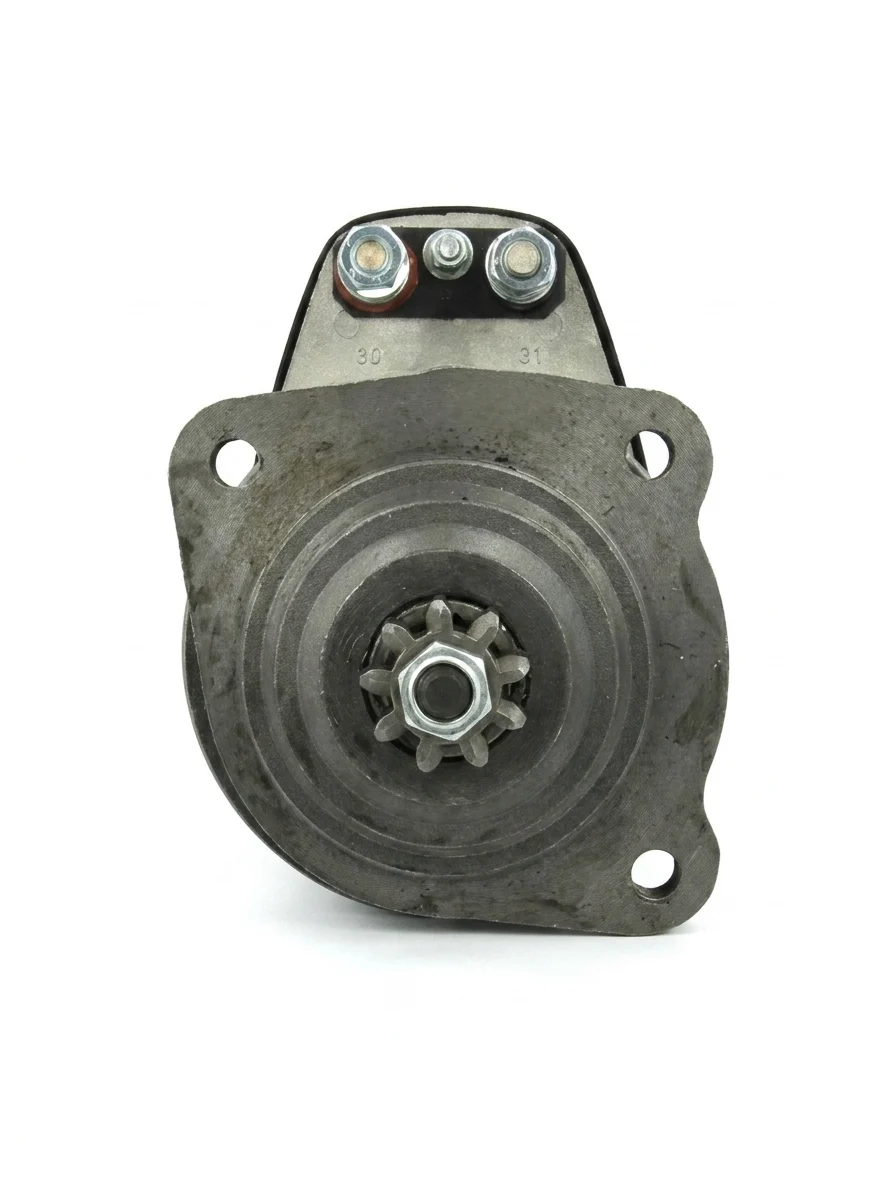

Starter Motor Volvo Penta AQD70 TD60 TMD70 24V 5.4kW

Description

Starter motor Volvo Penta AQD70 TD60 TMD70 24V 5.4kW. Direct replacement for the original starter motor on these Volvo Penta marine diesels, double insulated for extra protection against corrosion and stray currents on board.

✔️ 24V / 5.4 kW direct-drive starter motor with 9-tooth pinion
✔️ Double insulated version, pilot flange 89 mm, 3 mounting holes
✔️ Clockwise (CW) rotation, mounting bracket at +45°

Technical specifications

• Voltage: 24V
• Power output: 5.4 kW
• Number of pinion teeth: 9
• Pilot flange: 89 mm
• Mounting holes: 3
• Bracket mounting angle: +45°
• Rotation direction: clockwise (CW)
• Design: double insulated

Suitable for

Volvo Penta

• AQD70
• TD60
• TMD70

Please note:

This starter motor features the mounting bracket at +45° and is double insulated — this is a different version than our TD60 starter motor with the bracket at +65° (not interchangeable). Volvo Penta supplied the AQD70/TD60/TMD70 series across multiple production years and submodels (including A/B/C versions) with slightly different solenoid switches; always check the bracket angle and number of teeth (9) on your old starter motor or nameplate before ordering.

OEM for reference

Volvo Penta 241011, 842774, 843510, 847307, 881683, 3803600
