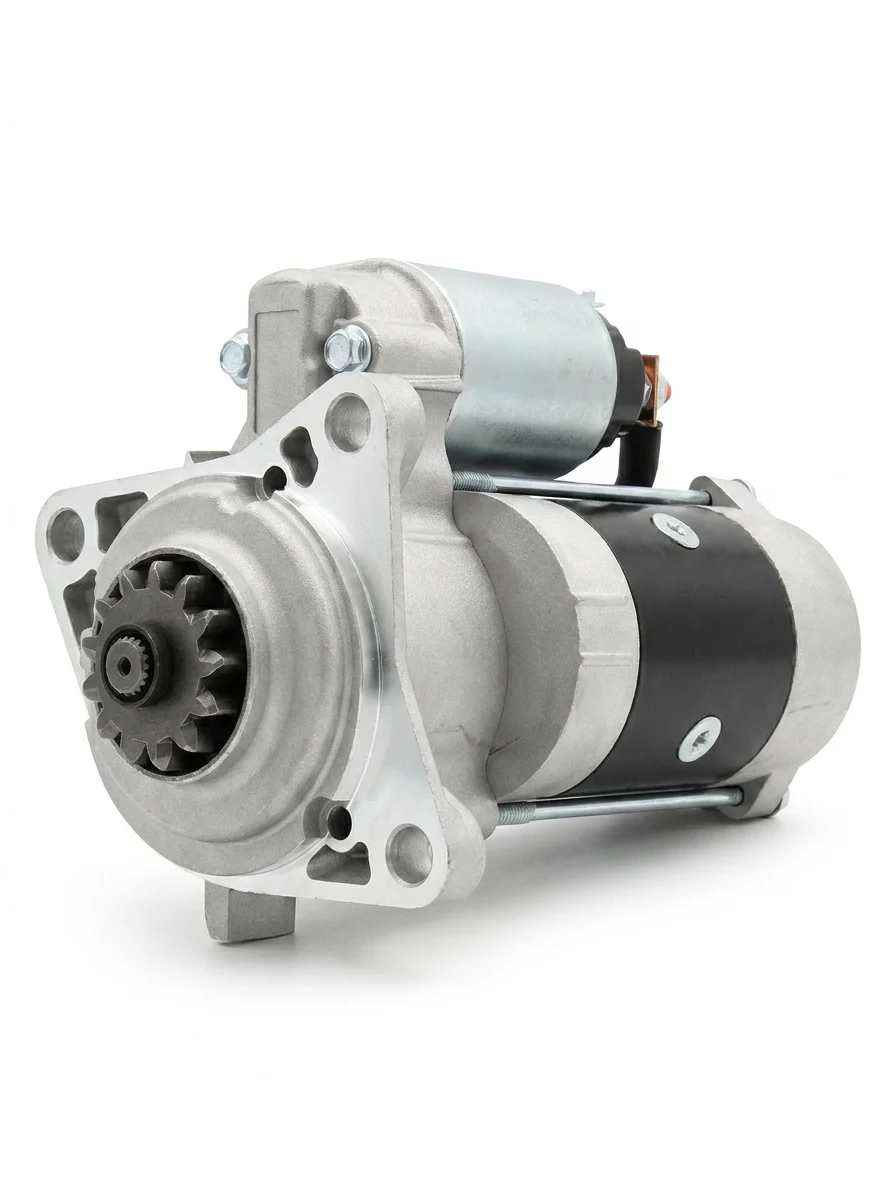

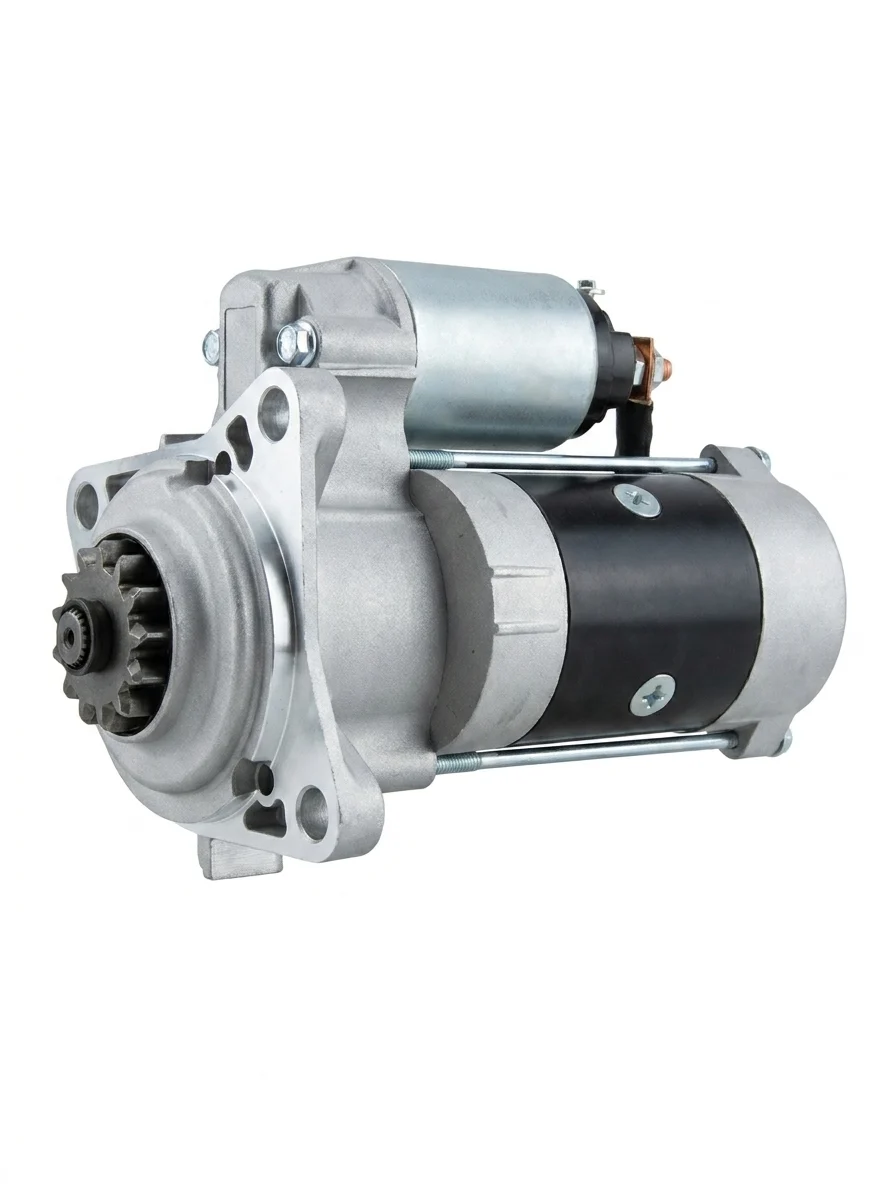

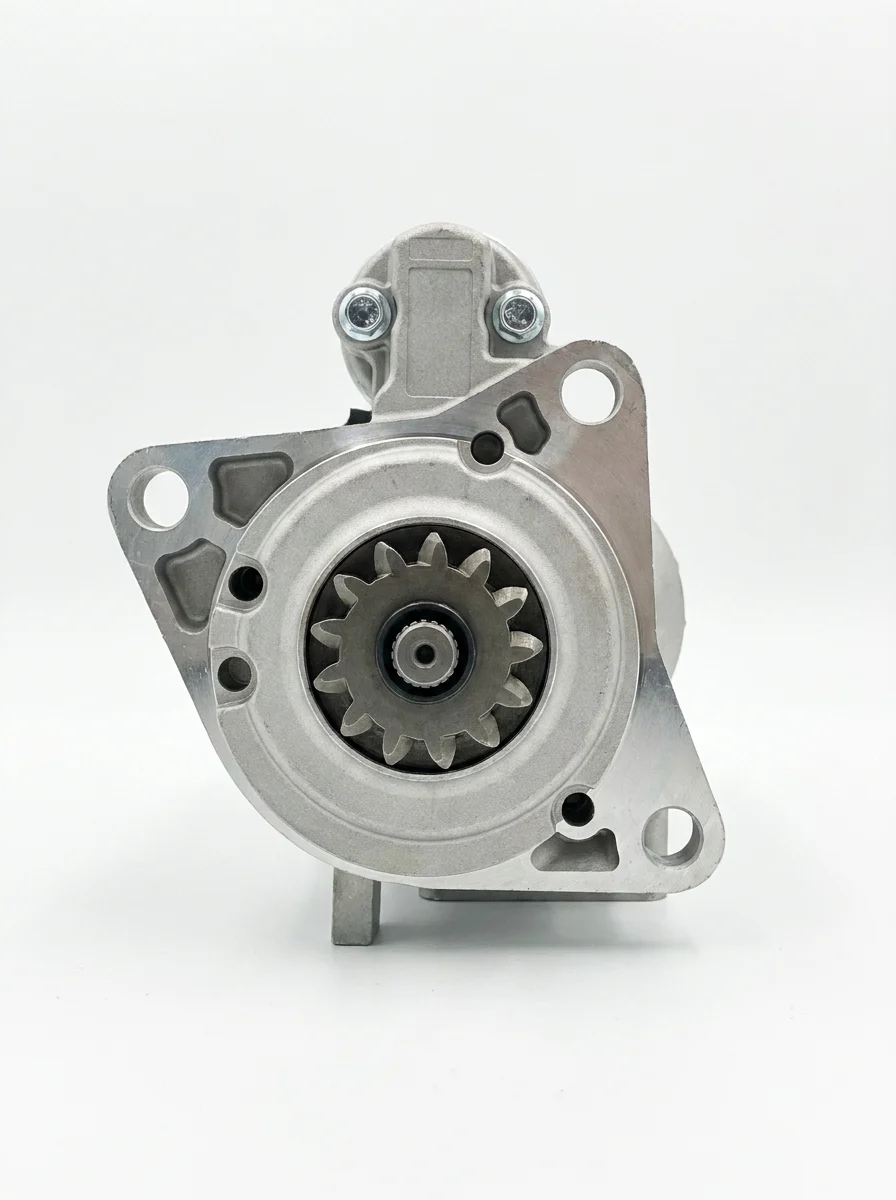

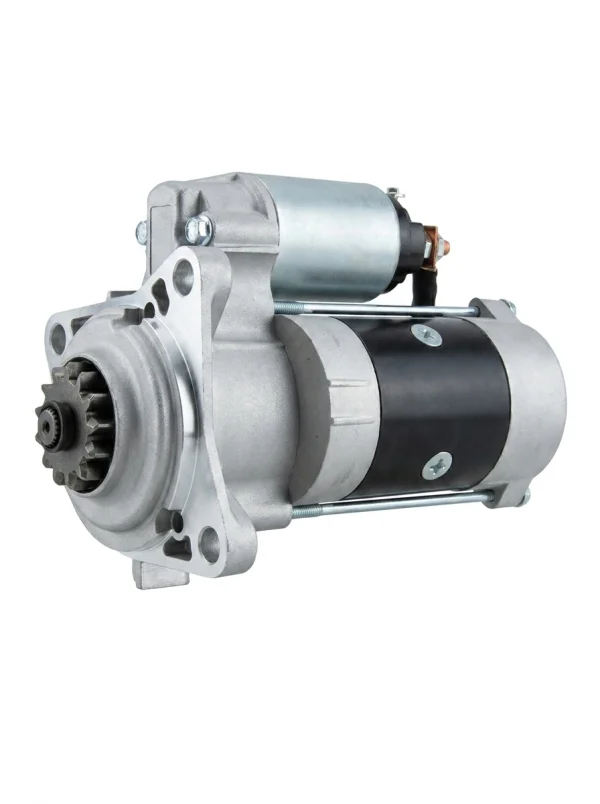

Starter Motor Solé Diesel SM75 SM90 12V 2.7kW

Description

Starter motor for Solé Diesel SM75 and SM90 marine diesel engines. Direct replacement for the original starter motor, featuring the same mounting dimensions, tooth count, and rotation direction.

✔️ 12V / 2.7 kW starter motor with 13-tooth pinion
✔️ Flange 100 mm, 3 mounting holes, mounting bracket at +30°
✔️ Clockwise (CW) rotation direction

Technical specifications

• Voltage: 12V
• Power output: 2.7 kW
• Pinion tooth count: 13
• Flange: 100 mm
• Mounting holes: 3
• Bracket mounting angle: +30°
• Rotation direction: clockwise (CW)

Suitable for

Solé Diesel

• SM75
• SM90

Please note:

Solé Diesel uses different starter specifications within the SM series. Before ordering, please verify the tooth count (13) and flange diameter (100 mm) on your old starter motor or nameplate.

Ref. no.: Solé Diesel 18027001. Additionally, compare the flange and tooth count with your original part.
