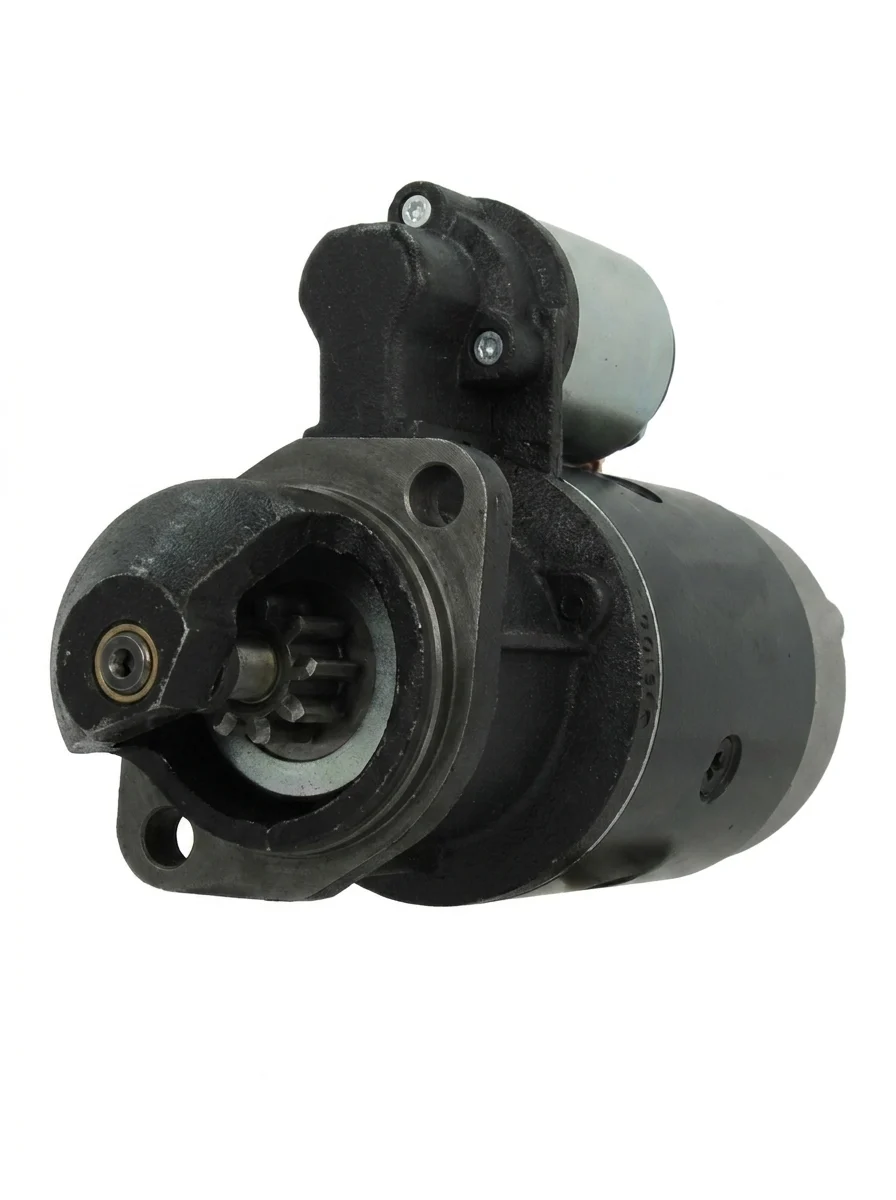

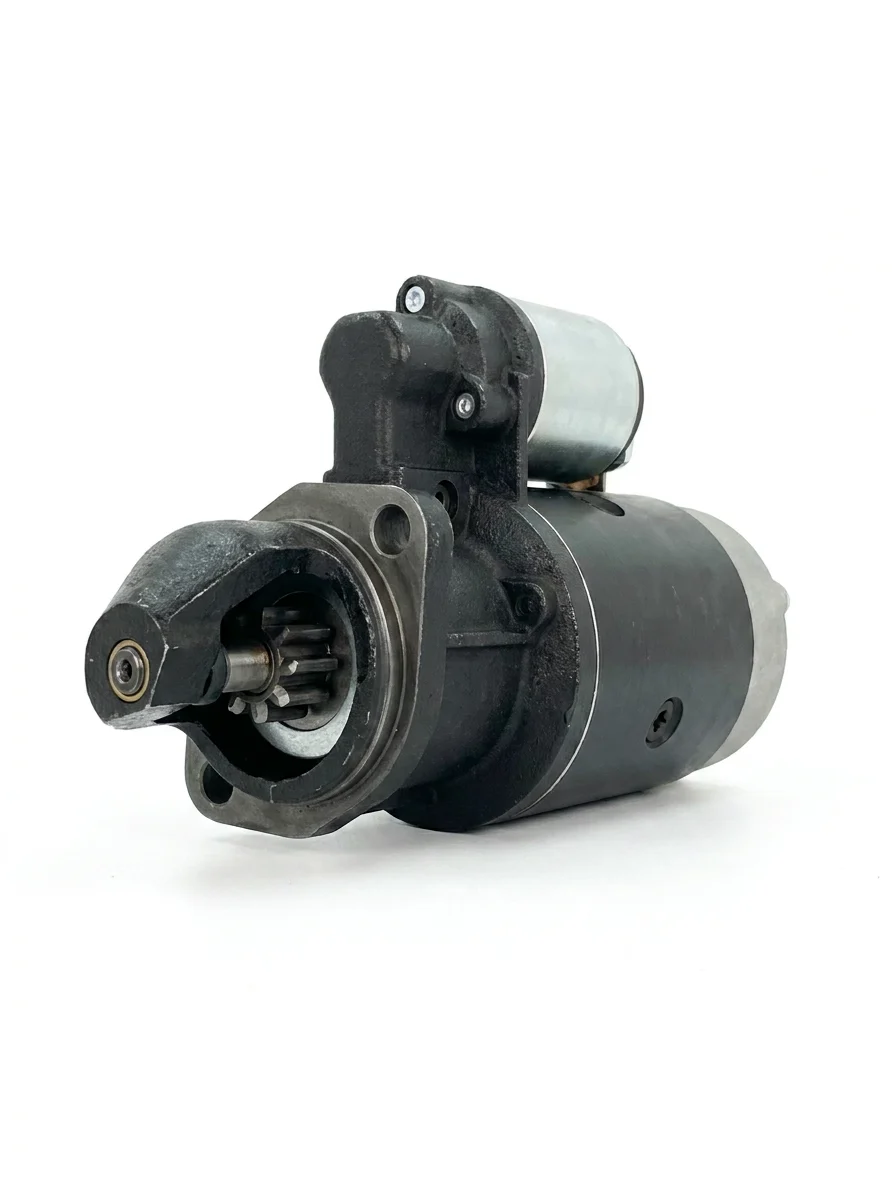

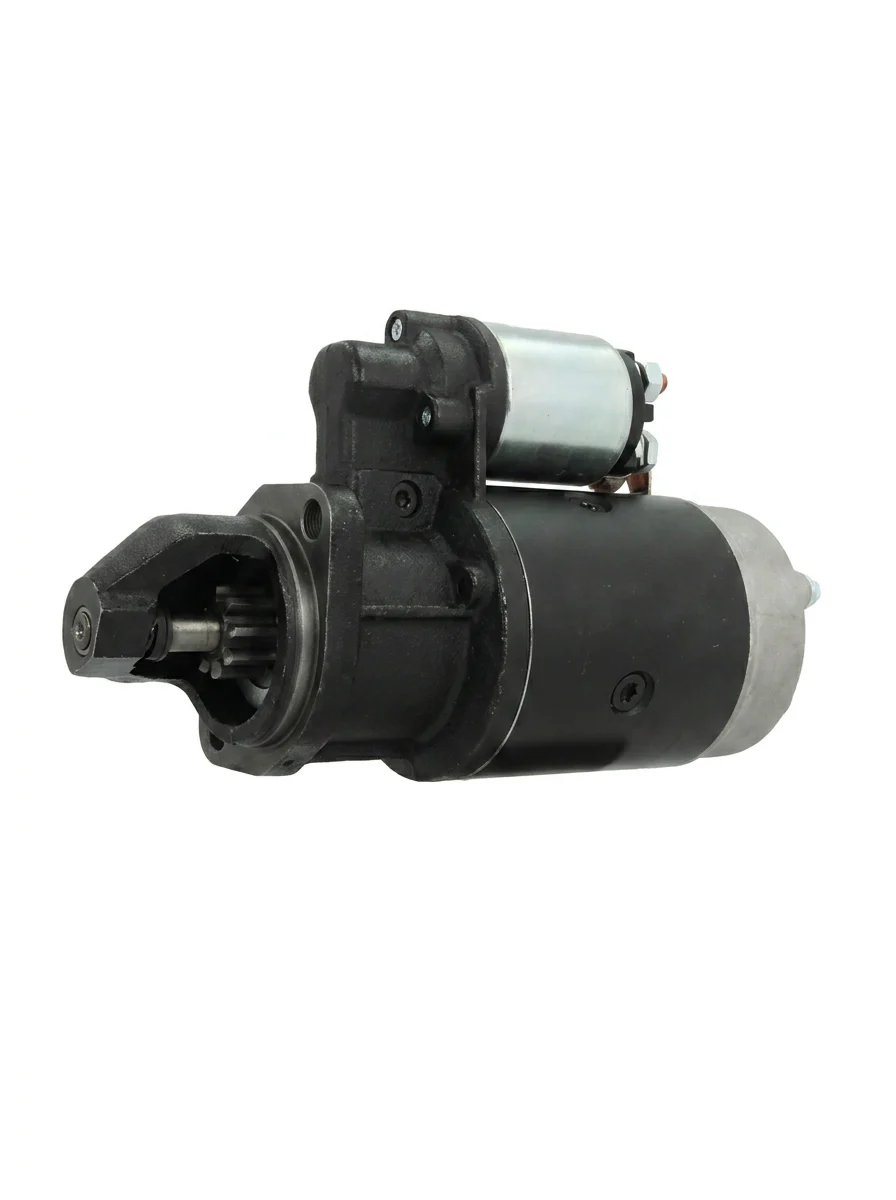

Starter motor Mercedes OM636 12V 2.7kW

Description

Starter motor Mercedes OM636. This robust Mercedes industrial engine was installed for decades by private boat builders and small shipyards as a marine diesel and can still be found in many older motorboats. Direct replacement for the original starter motor, featuring the same mounting dimensions, tooth count, and rotation direction as the original.

✔️ 12V / 2.7 kW starter motor with 9-tooth pinion
✔️ Pilot diameter 82 mm, 2 mounting holes, mounting bracket at +35°
✔️ Clockwise (CW) rotation direction

Technical specifications

• Voltage: 12V
• Power: 2.7 kW
• Pinion teeth count: 9
• Pilot diameter: 82 mm
• Mounting holes: 2
• Bracket mounting angle: +35°
• Rotation direction: clockwise (CW)

Suitable for

Mercedes

• OM636

Please note:

The OM636 was marinised by various shipyards and private builders with differing engine mounts; always check the pilot diameter (82 mm) and tooth count (9) on your old starter motor before ordering.

Ref. no.: Mercedes OM636. No marine electrical brand part number documented — please compare pilot diameter and tooth count with your original.
