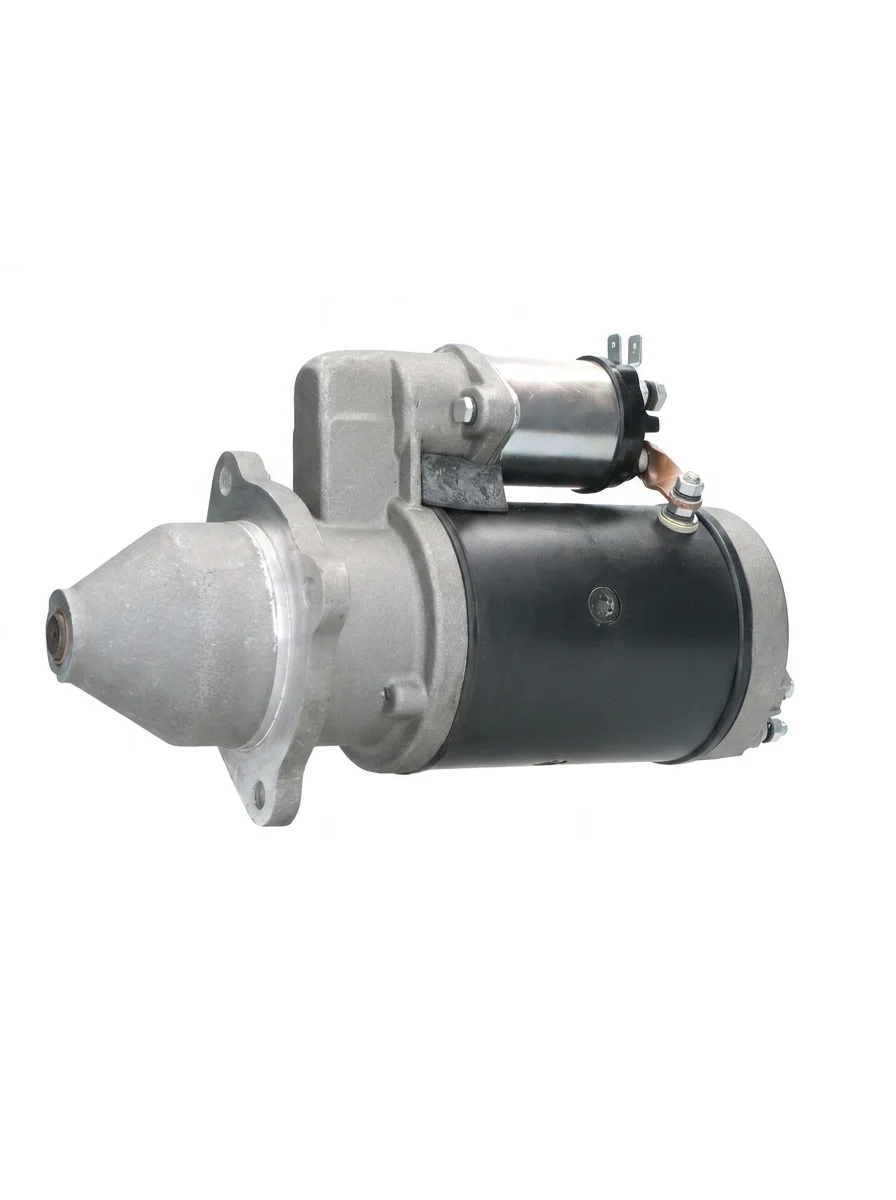

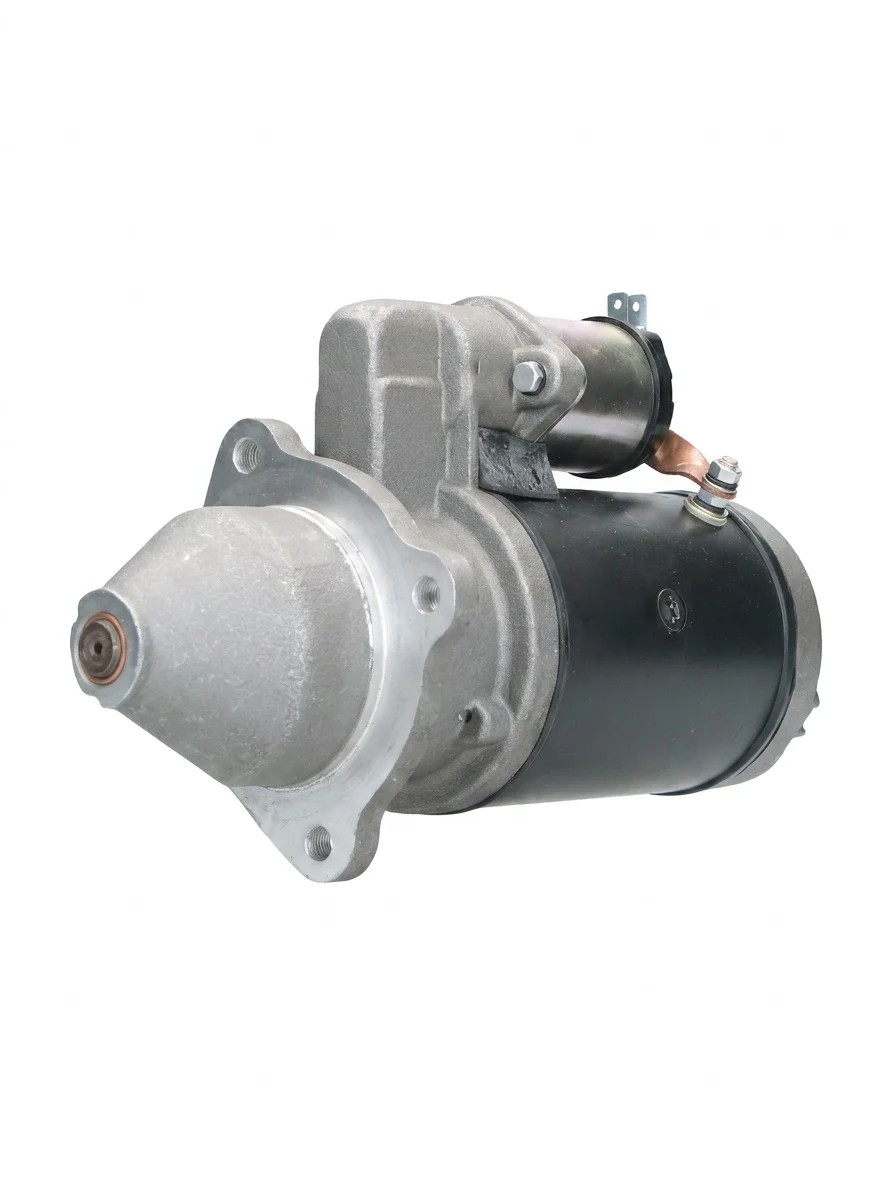

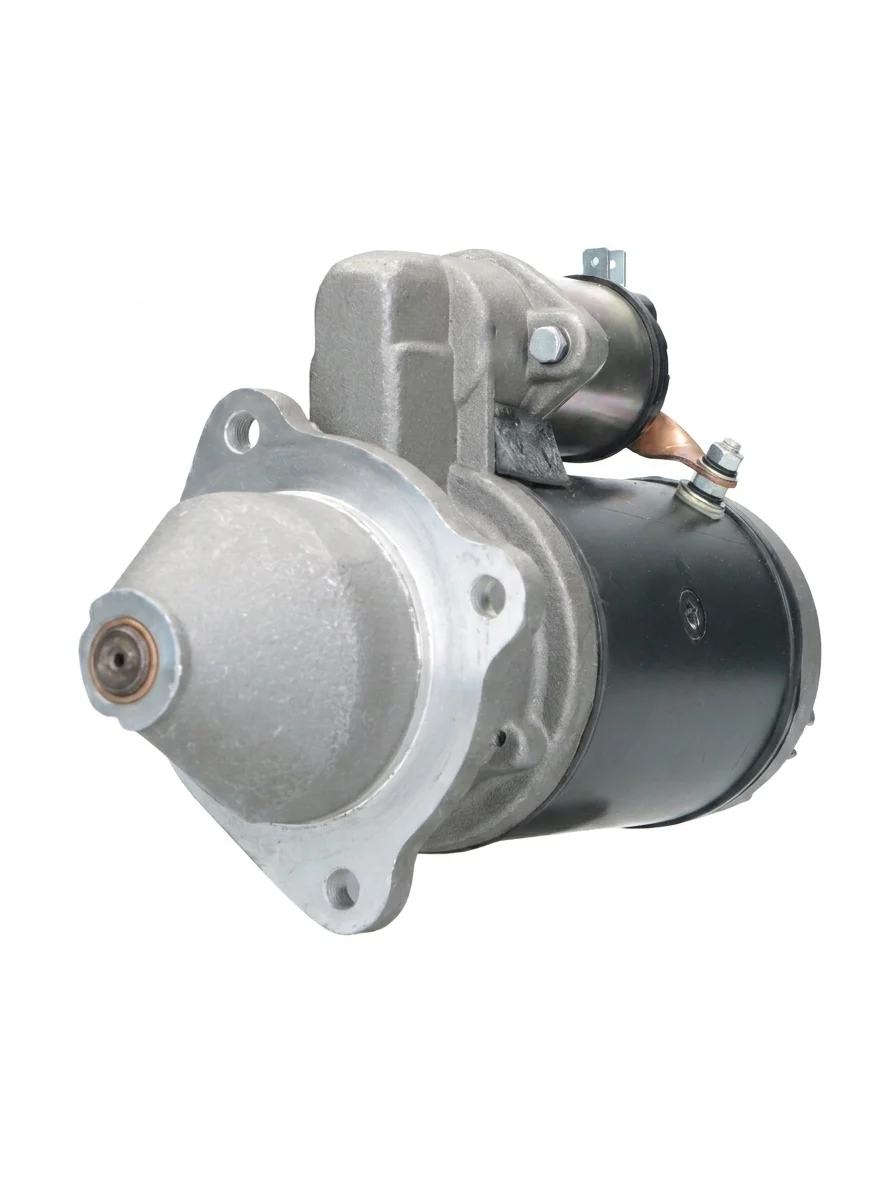

Starter Motor BMC Captain 2.5 12V 2.1kW

Description

Starter motor for the BMC Captain 2.5, the well-known British marine diesel engine fitted in small motor cruisers and sailboats for decades. Direct replacement for the original starter motor, featuring the same mounting dimensions, tooth count, and rotation direction as the original.

✔️ 12V / 2.1 kW starter motor with 10-tooth pinion
✔️ Pilot diameter 89 mm, 3 mounting holes, mounting bracket at +75°
✔️ Clockwise (CW) rotation

Technical specifications

• Voltage: 12V
• Power output: 2.1 kW
• Number of pinion teeth: 10
• Pilot diameter: 89 mm
• Mounting holes: 3
• Bracket mounting angle: +75°
• Rotation direction: clockwise (CW)

Suitable for

BMC

• Captain 2.5

Please note:

The BMC/Leyland engine family featured several starter motor variants with differing tooth counts and power outputs (including a 2.7 kW version). Please verify the tooth count (10) and pilot diameter (89 mm) on your old starter motor or nameplate before ordering.

For ref.: BMC Captain 2.5. No marine part number documented for this version — compare pilot diameter and tooth count with your original.
