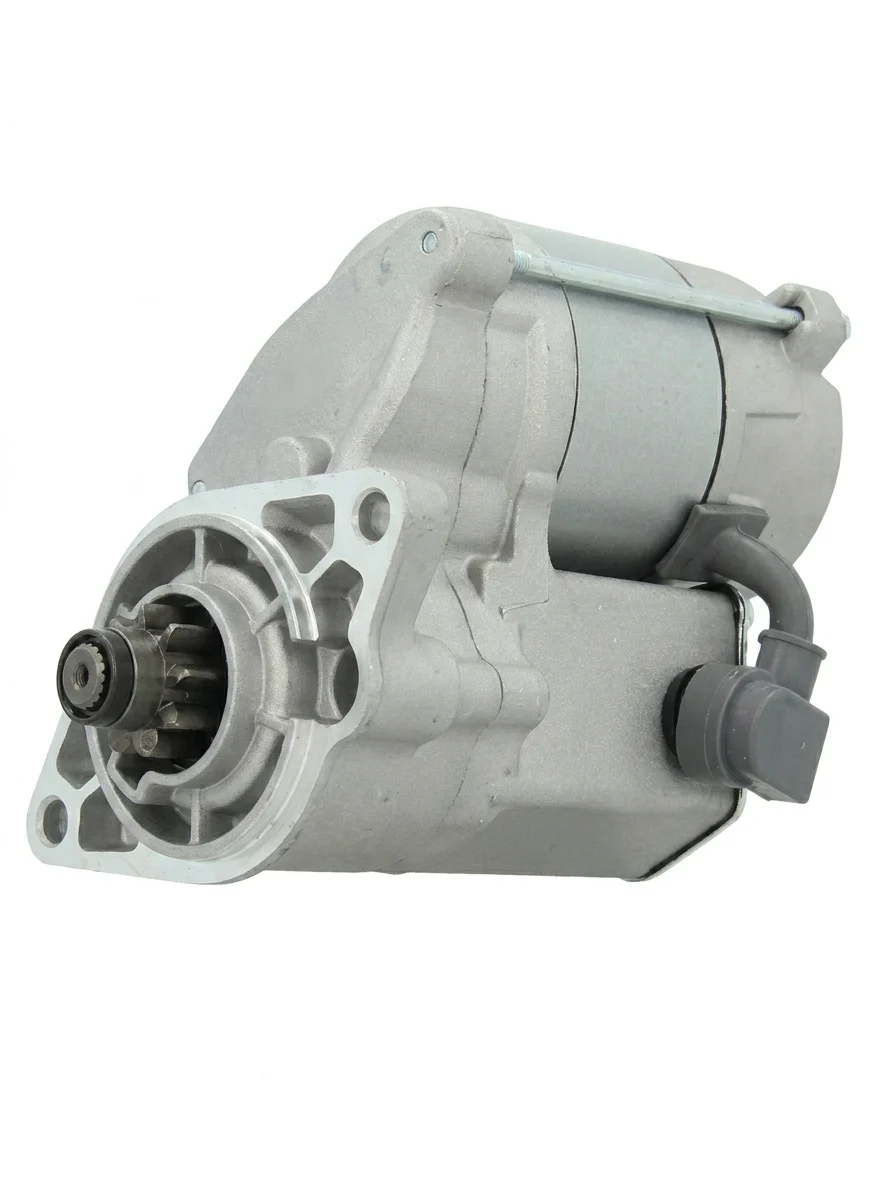

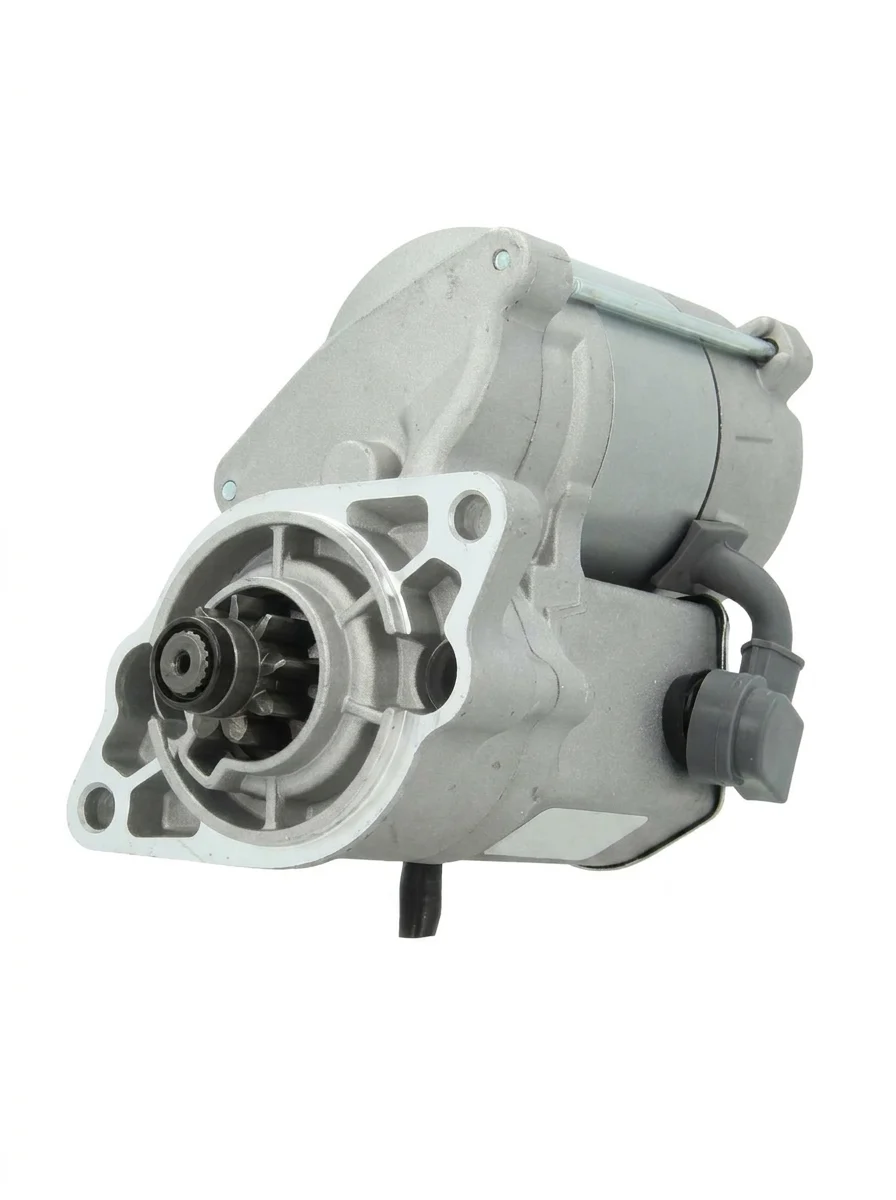

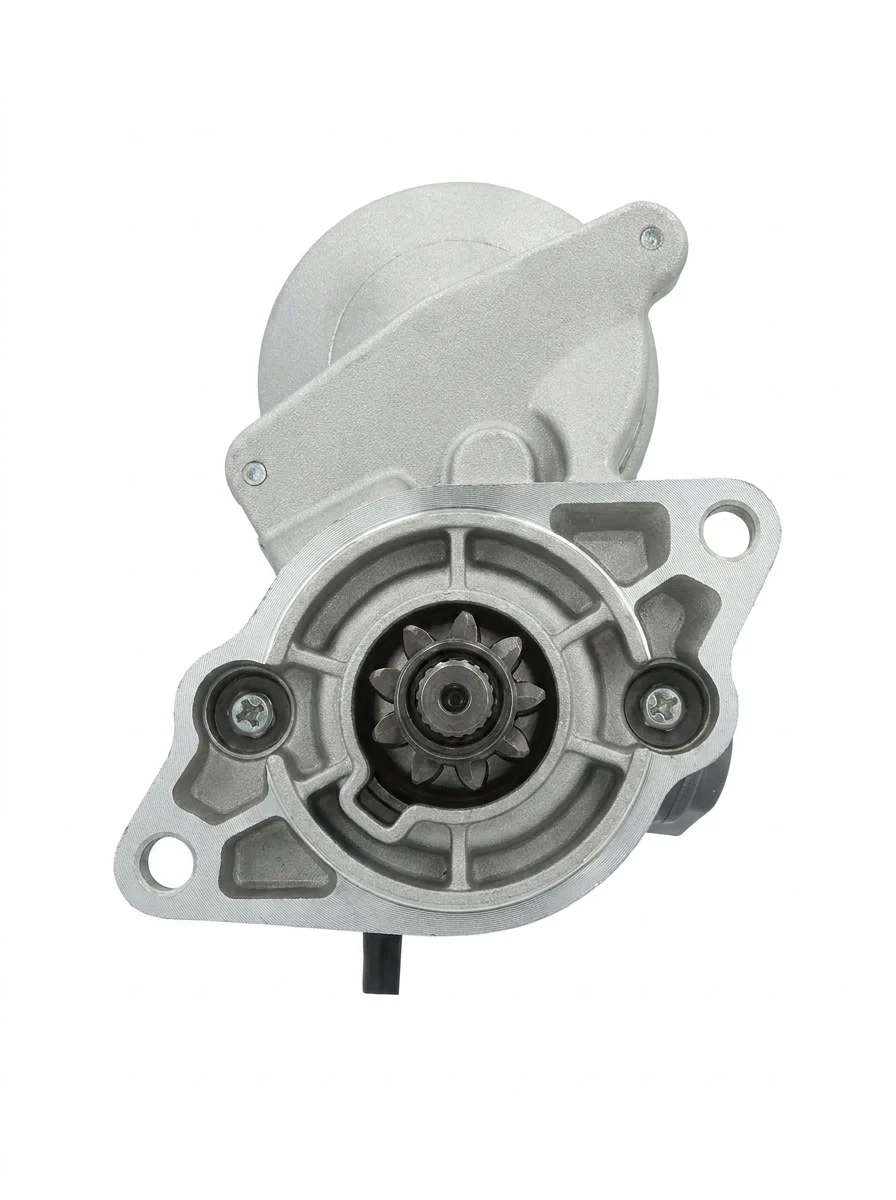

Starter Motor Beta Marine Beta 38 (BV1505) 12V 1.0kW

Description

Starter motor for the Beta Marine Beta 38 (BV1505), a popular four-cylinder marine diesel based on a compact industrial block. Direct replacement for the original starter motor, featuring identical mounting dimensions, tooth count, and rotation direction.

✔️ 12V / 1.0 kW starter motor with 9-tooth pinion
✔️ Spigot diameter 66 mm, 2 mounting holes, mounting bracket at +60°
✔️ Clockwise (CW) rotation

Technical specifications

• Voltage: 12V
• Power output: 1.0 kW
• Number of pinion teeth: 9
• Spigot diameter: 66 mm
• Mounting holes: 2
• Bracket mounting angle: +60°
• Rotation direction: clockwise (CW)

Suitable for

Beta Marine

• Beta 38 (BV1505)

Please note:

Beta Marine uses different starter specifications depending on the specific model within the same engine series. Before ordering, please check the tooth count (9), spigot diameter (66 mm), and power output on your old starter motor or nameplate.

No marine part number documented for this version — please compare spigot and tooth count with your original unit.
