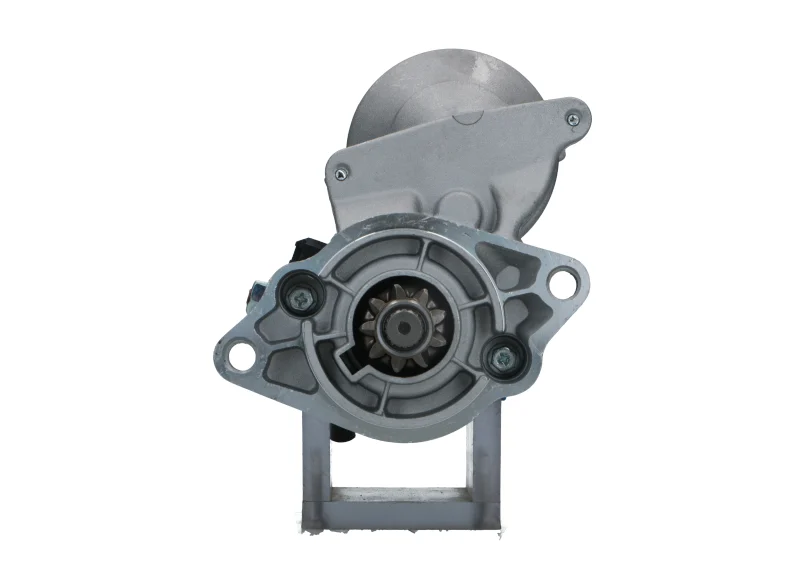

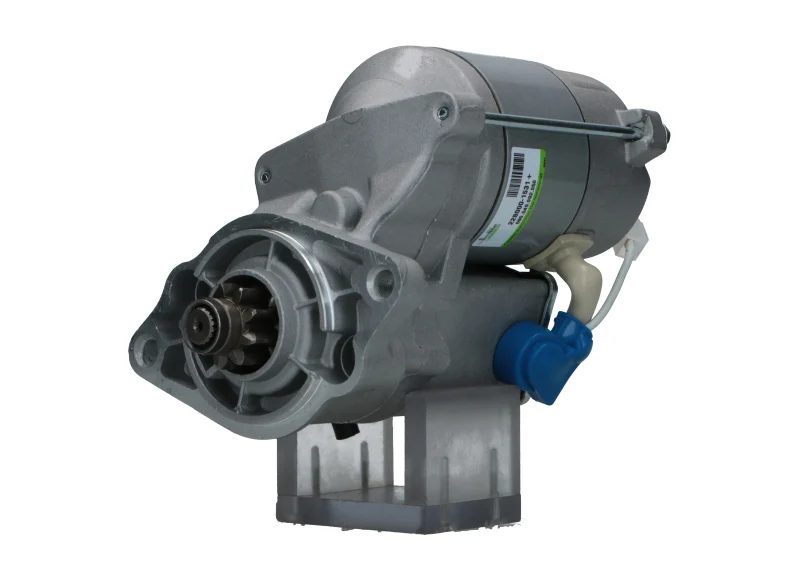

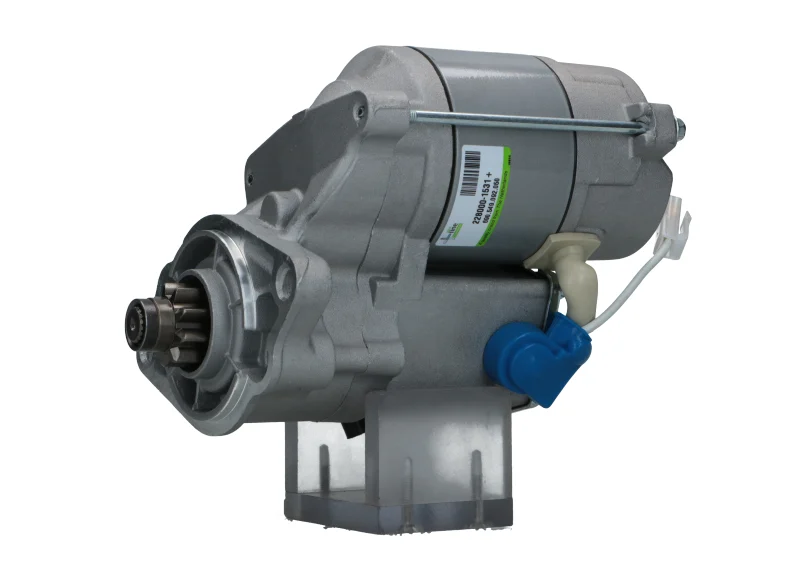

Starter Motor Beta Marine Beta 20 | Beta 25 12V 1.4kW

Description

Starter motor for Beta Marine Beta 20 and Beta 25 marine diesel engines. Direct replacement for the original starter motor, featuring the same mounting dimensions, number of teeth, and rotation direction.

✔️ 12V / 1.4 kW starter motor with 9-tooth pinion
✔️ Flange 66 mm, 2 mounting holes, mounting bracket at +60°
✔️ Clockwise (CW) rotation

Technical specifications

• Voltage: 12V
• Power output: 1.4 kW
• Number of pinion teeth: 9
• Flange: 66 mm
• Mounting holes: 2
• Bracket mounting angle: +60°
• Rotation direction: clockwise (CW)

Suitable for

Beta Marine

• Beta 20
• Beta 25

Please note:

Beta 20 and Beta 25 share the same starter motor, but their flange may look similar to other Beta models with a different number of teeth. Before ordering, please check the number of teeth (9) and power output (1.4 kW) on your old starter motor or nameplate.

OEM for reference

• Beta Marine: 600-00064 (Beta 20), 600-05147 (Beta 25)
