Dynastarter Bukh DV10 DV20 12V 11A

Description

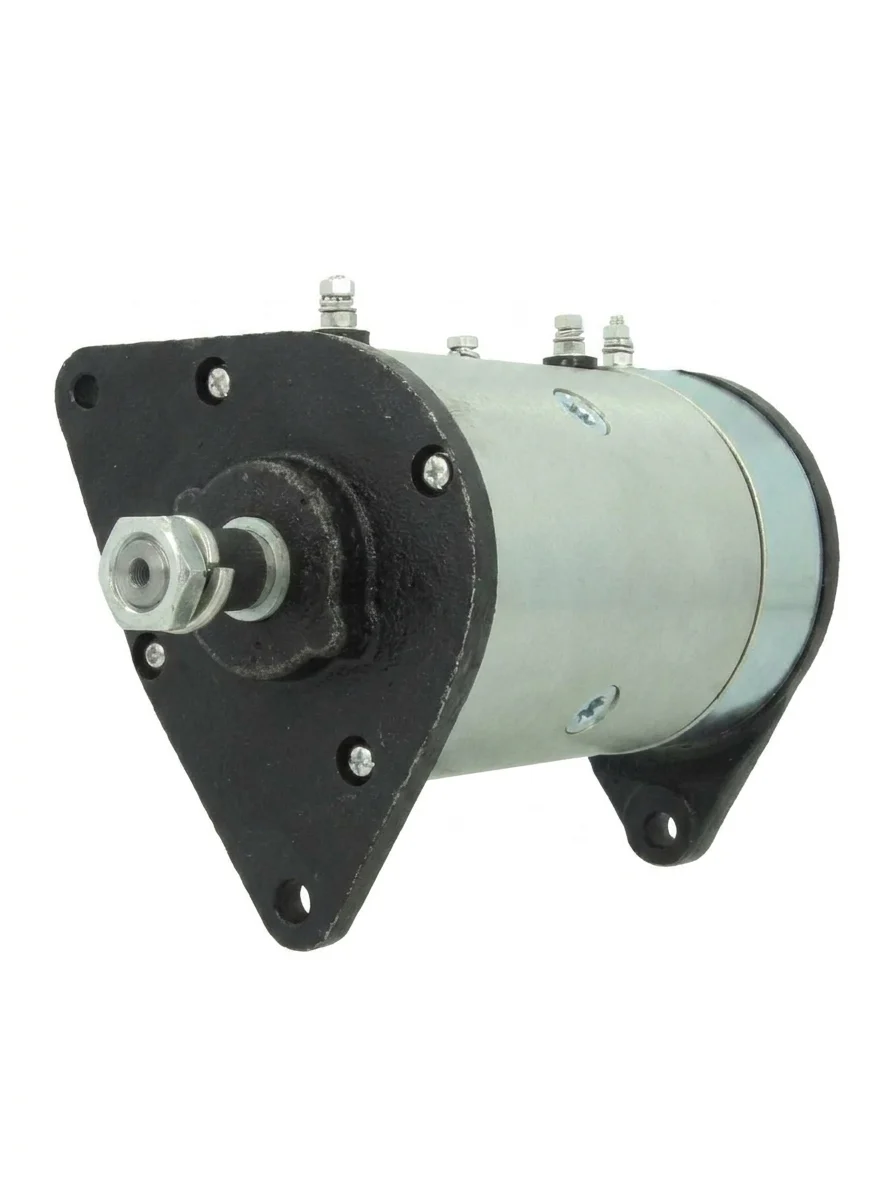

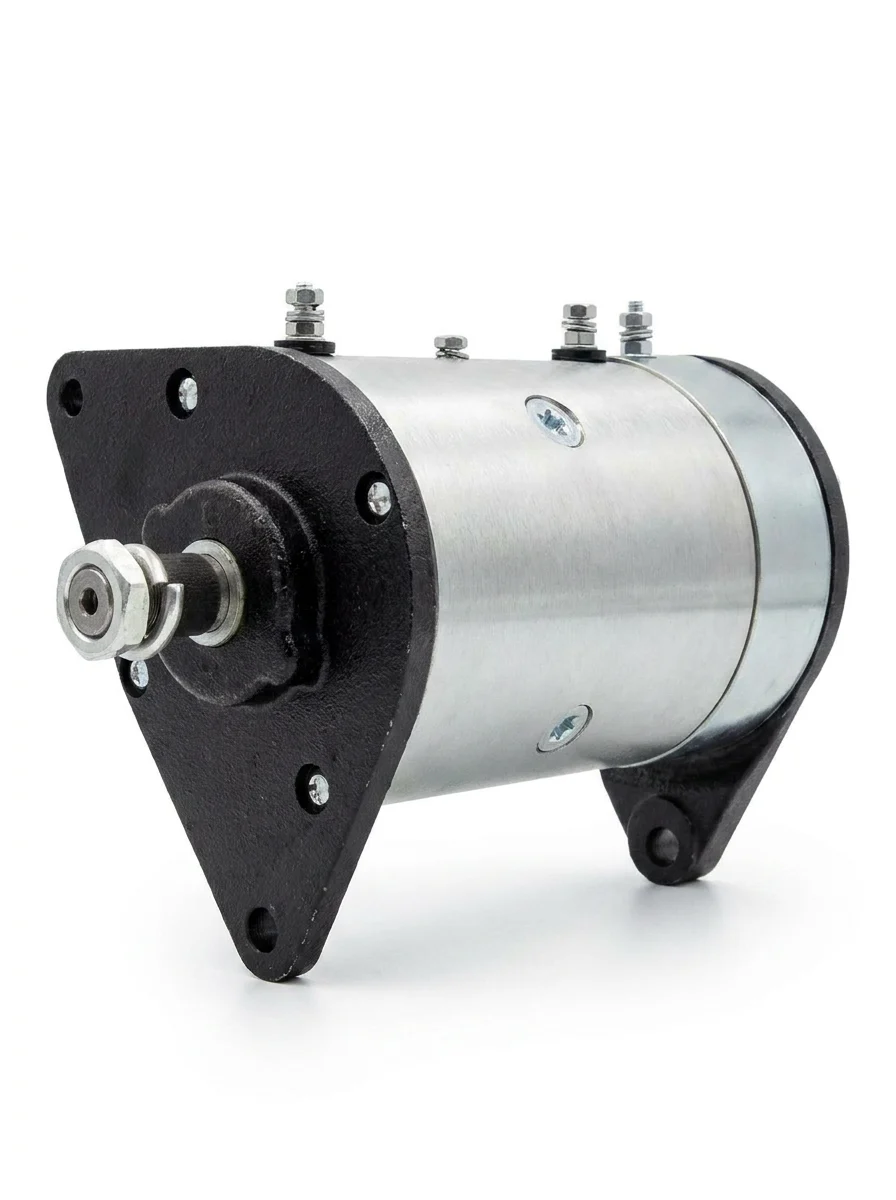

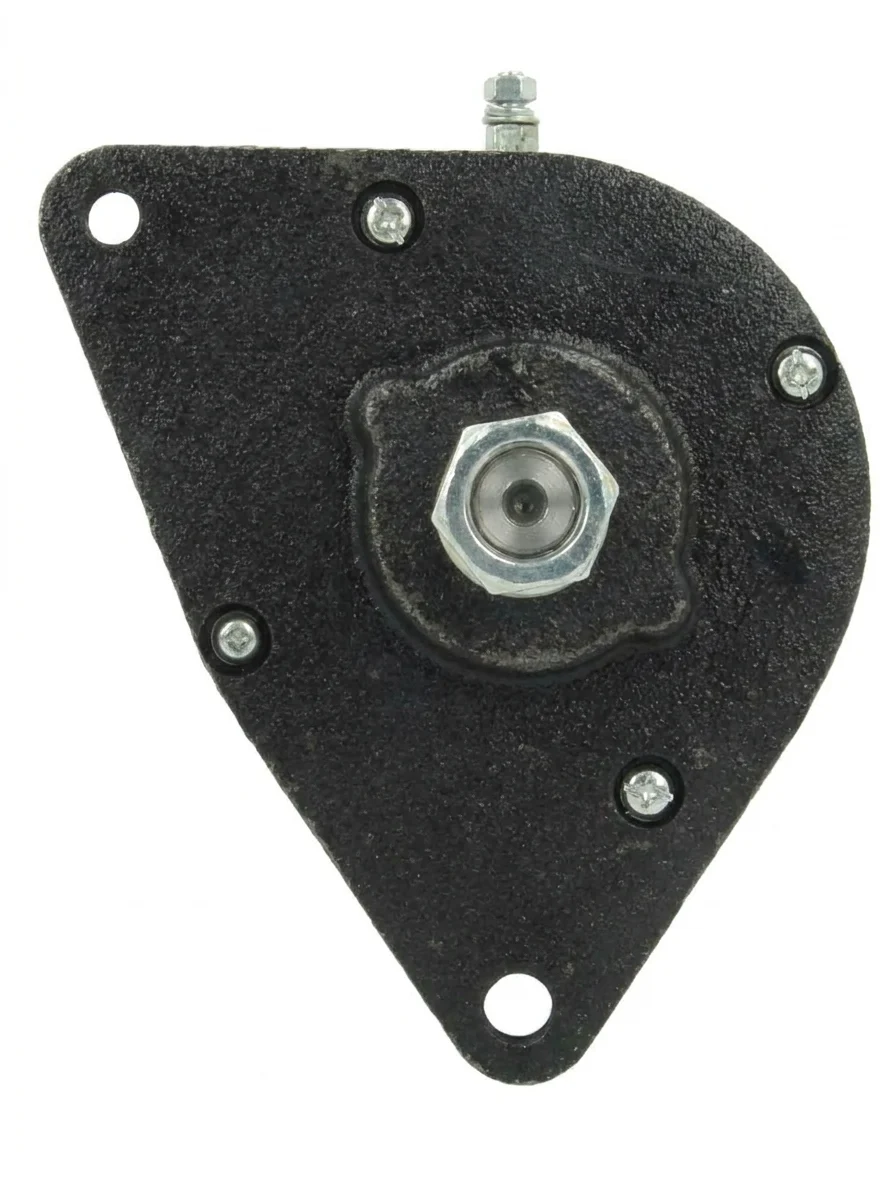

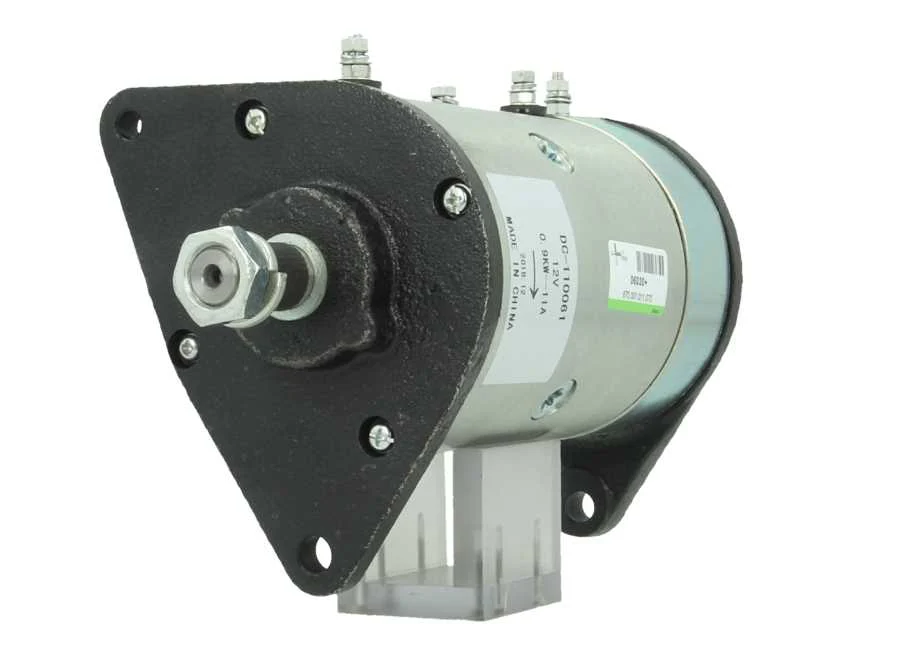

Dynastarter Bukh DV10 DV20 12V 11A

The early Bukh DV10 and DV20 single-cylinder and twin-cylinder marine diesels did not use a separate starter motor and alternator, but a single combined "dynastarter" (also known as a starter-generator): this single unit starts the engine and subsequently charges the battery. This dynastarter is the direct replacement for that original part.

✔️ Directly replaces the original Bukh dynastarter
✔️ Combines starter motor and DC generator in a single unit, as originally fitted
✔️ New part, no core exchange required — fast delivery

Technical specifications

• Voltage: 12V
• Charging current: 11A
• Power (starting): 0.9 kW
• Terminal: B+ M6
• Number of mounting holes: 3
• Freewheel pulley: no

Suitable for

Bukh

• DV10 (up to engine number 89156)
• DV20 (up to engine number 93637)

Please note:

This dynastarter is supplied EXCLUDING voltage regulator/relay — always replace these at the same time. This version only fits the Bukh DV10 up to engine number 89156 and the DV20 up to engine number 93637; from 1974 Bukh fitted a conventional starter motor with ring gear on these engines instead of the dynastarter. Check the engine number on your engine's identification plate before ordering.

OEM for reference

• Efel 06030 (factory reference dynastarter type)
