Cylinder Head + Repair Kit Solé Diesel Mini 44 | Mini 55 – Vetus M4.15 | M4.17 – Craftsman Marine CM4.42 – JF Marine Power JF15

Description

Complete cylinder head with overhaul/repair kit for the Solé Diesel Mini 44 and Mini 55 and the identical Vetus M4.15/M4.17, Craftsman Marine CM4.42 and JF Marine Power JF15 marine engines. This set is assembled to solve common problems such as burnt valves, oil consumption, temperature issues and failing glow plugs all at once. Ideal for major maintenance or a complete engine overhaul.

✔️ Complete cylinder head with corresponding overhaul kit
✔️ Solves burnt valves, oil consumption and temperature problems in one go
✔️ Valve seats already installed – ready for assembly

Technical Specifications

• Part: cylinder head + repair kit
• Bore: 78 mm
• Number of cylinders: 4
• Delivery: per set

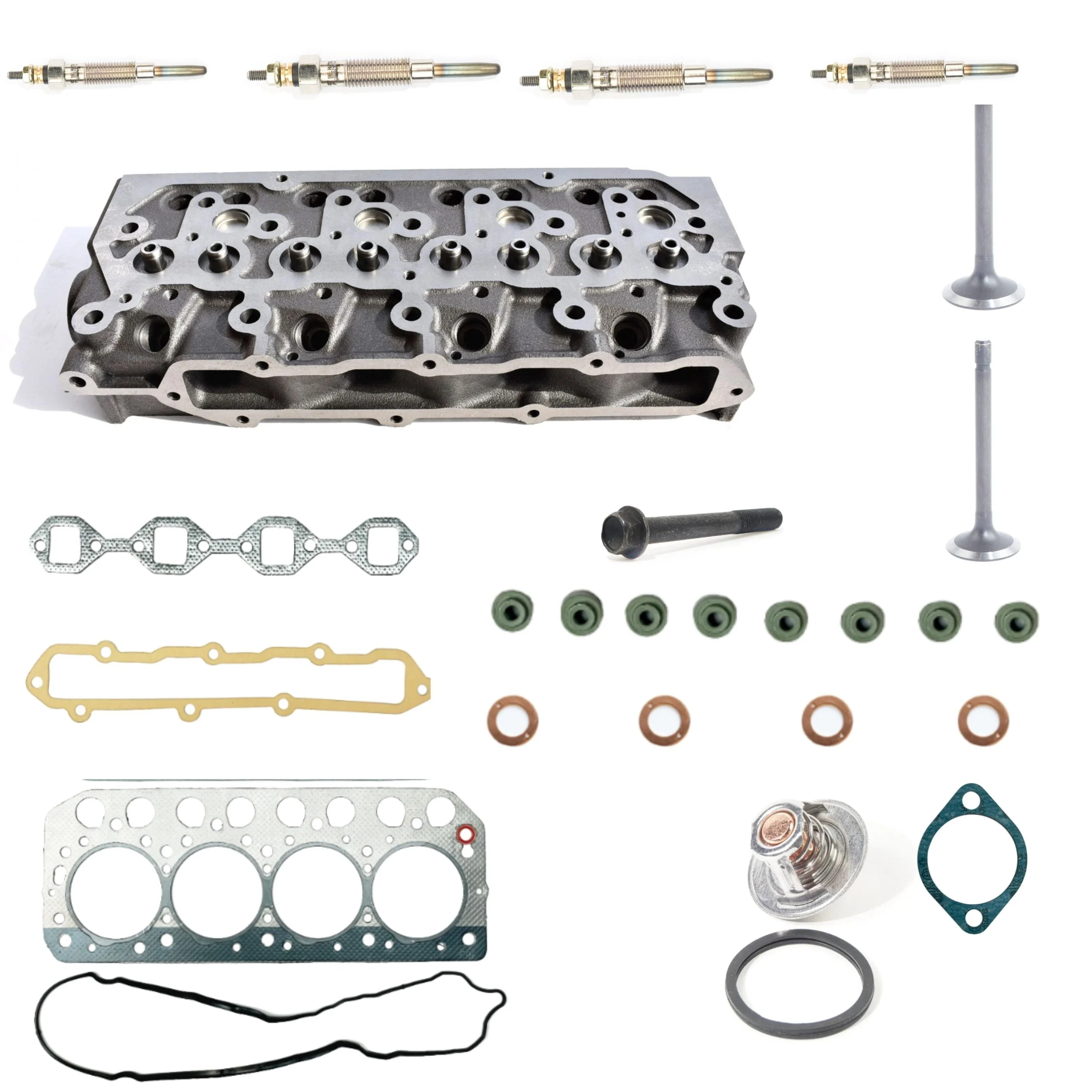

Set Contents

• Cylinder head with pre-installed valve seats
• Basic gasket set: inlet gasket, outlet gasket + copper rings return line/injectors, seals
• 1 inlet valve and 1 outlet valve
• Thermostat with gasket
• Valve seals (new, against oil consumption)
• 4 glow plugs
• High-quality European head gasket
• 1 spare head bolt

Suitable for

• Solé Diesel: Mini 44, Mini 55 (+ gensets G-15M-15, G-15T-15, G-25M-3, G-25T-3)
• Vetus: M4.15, M4.17
• Craftsman Marine: CM4.42
• JF Marine Power: JF15 (JF15-1500)

OEM for reference

• 31A01-33300 / 31A0133300
