Complete Cylinder Head + Head Gasket + Glow Plug Beta Marine Beta 28 – Universal M-25XPB

Description

Complete cylinder head repair kit for the three-cylinder marine diesel engine of the Beta Marine Beta 28 and Universal M-25XPB (bore 76 mm). The new premium cylinder head is supplied with mounted valve seats, valves and springs – ready for installation – supplemented with all gaskets, thermostat and glow plugs for fast, complete repair.

✔️ Fully assembled cylinder head – no additional adjustment work
✔️ Complete kit: head gasket, thermostat, manifold gaskets and 3× glow plug
✔️ Exact OEM fit – 1-to-1 replacement

Technical specifications

• Part: Complete cylinder head + repair kit
• For 3-cylinder marine diesel (bore 76 mm)
• Glow plug: M8 x 1.00
• Thermostat: 44 mm
• Delivery: fully assembled

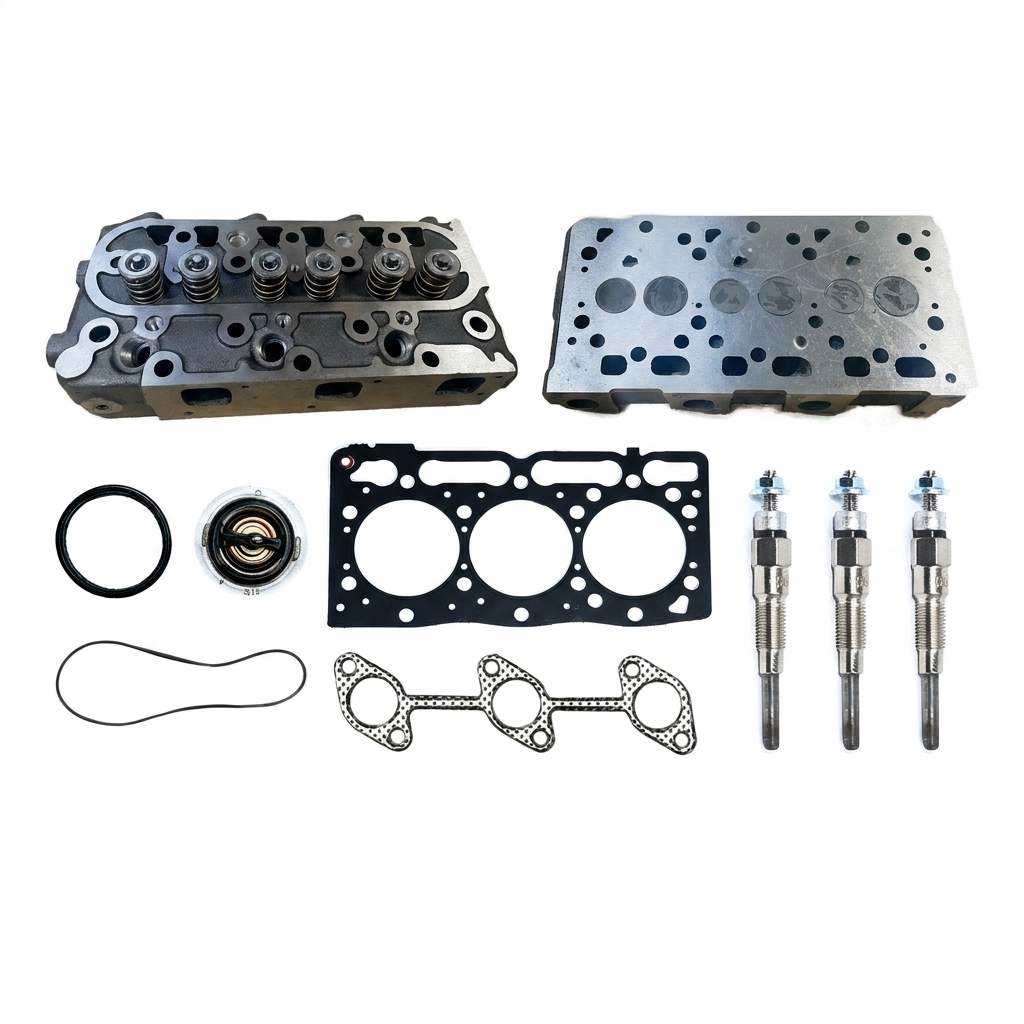

Kit contents

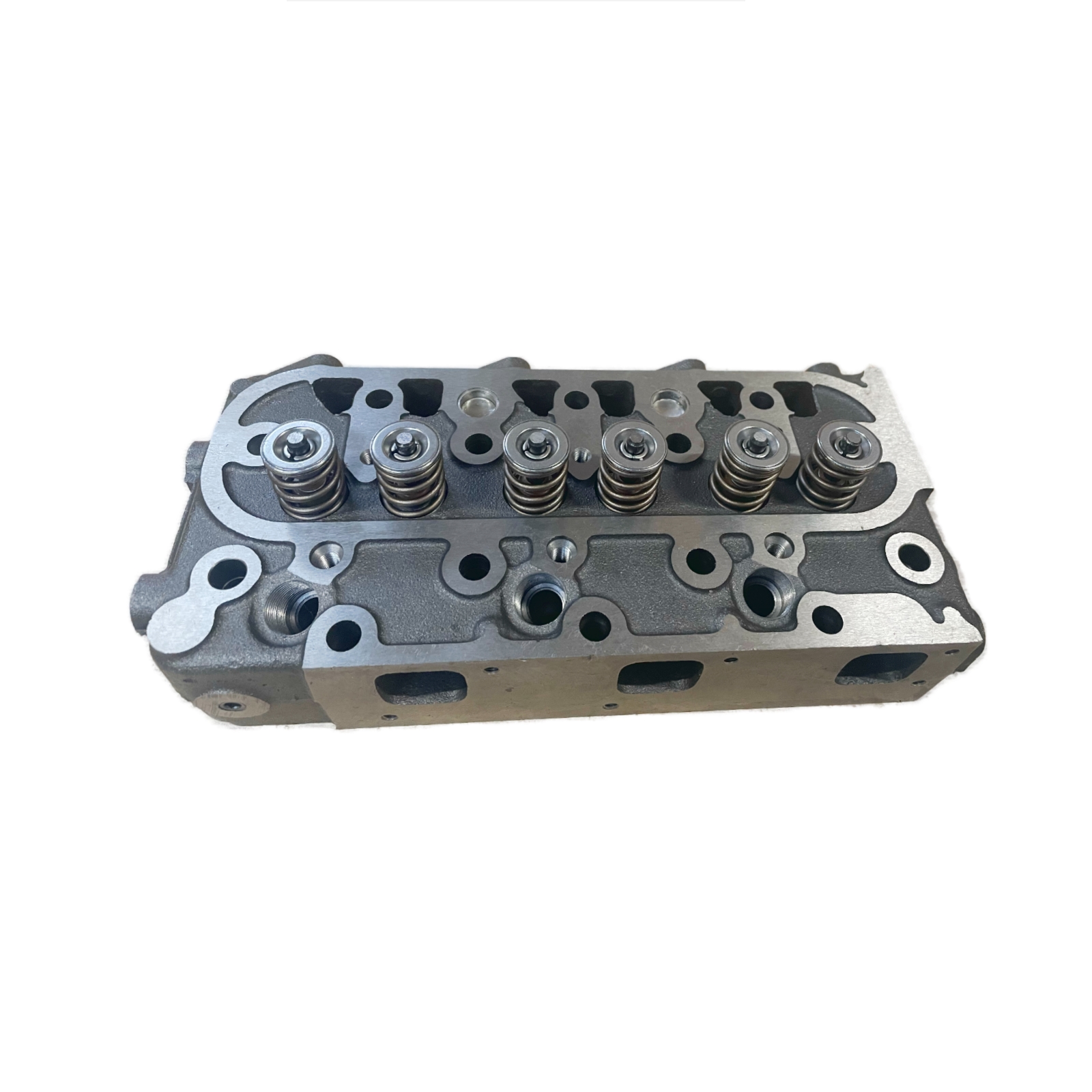

• Complete cylinder head with valves, springs, valve seats and seals (assembled)

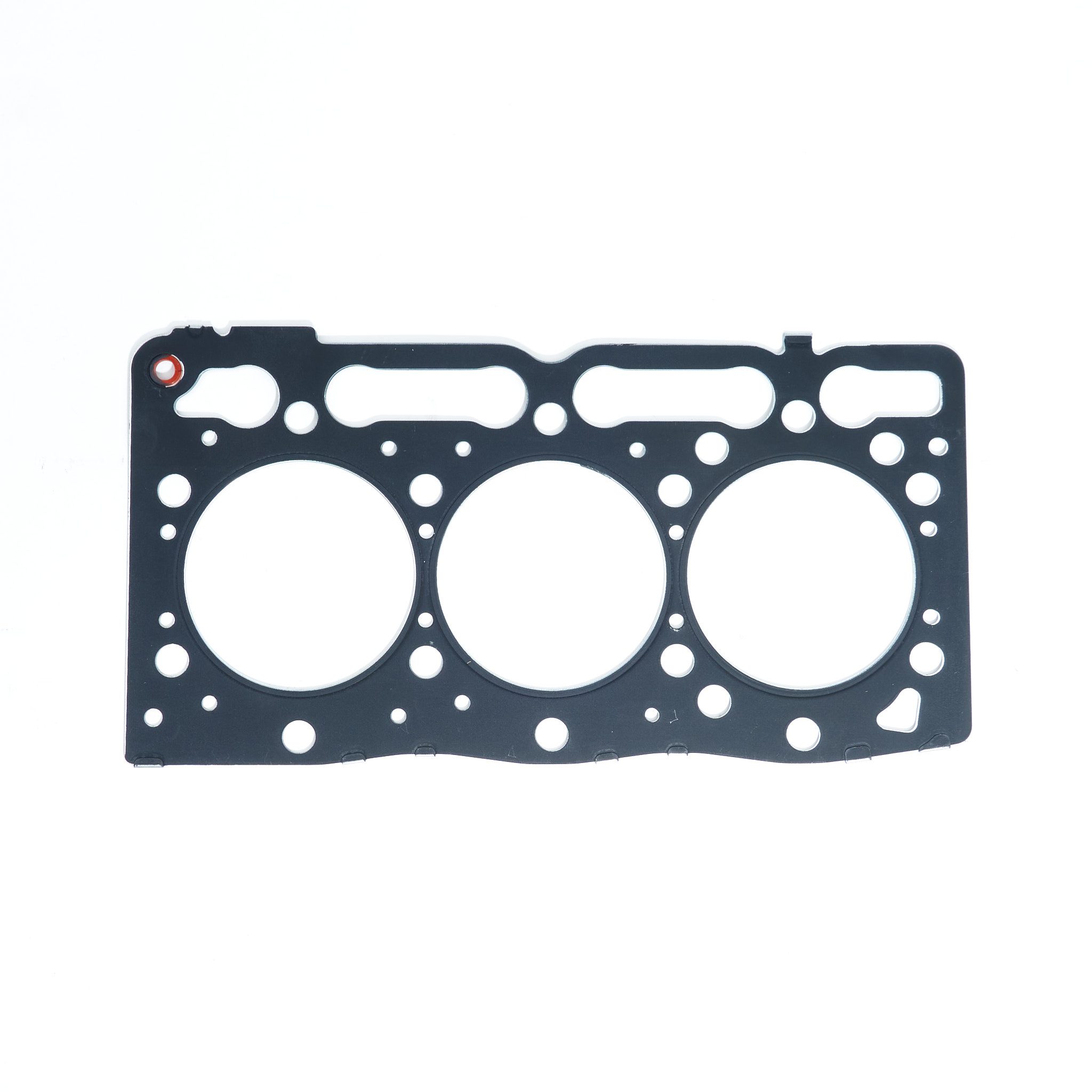

• Head gasket – premium quality

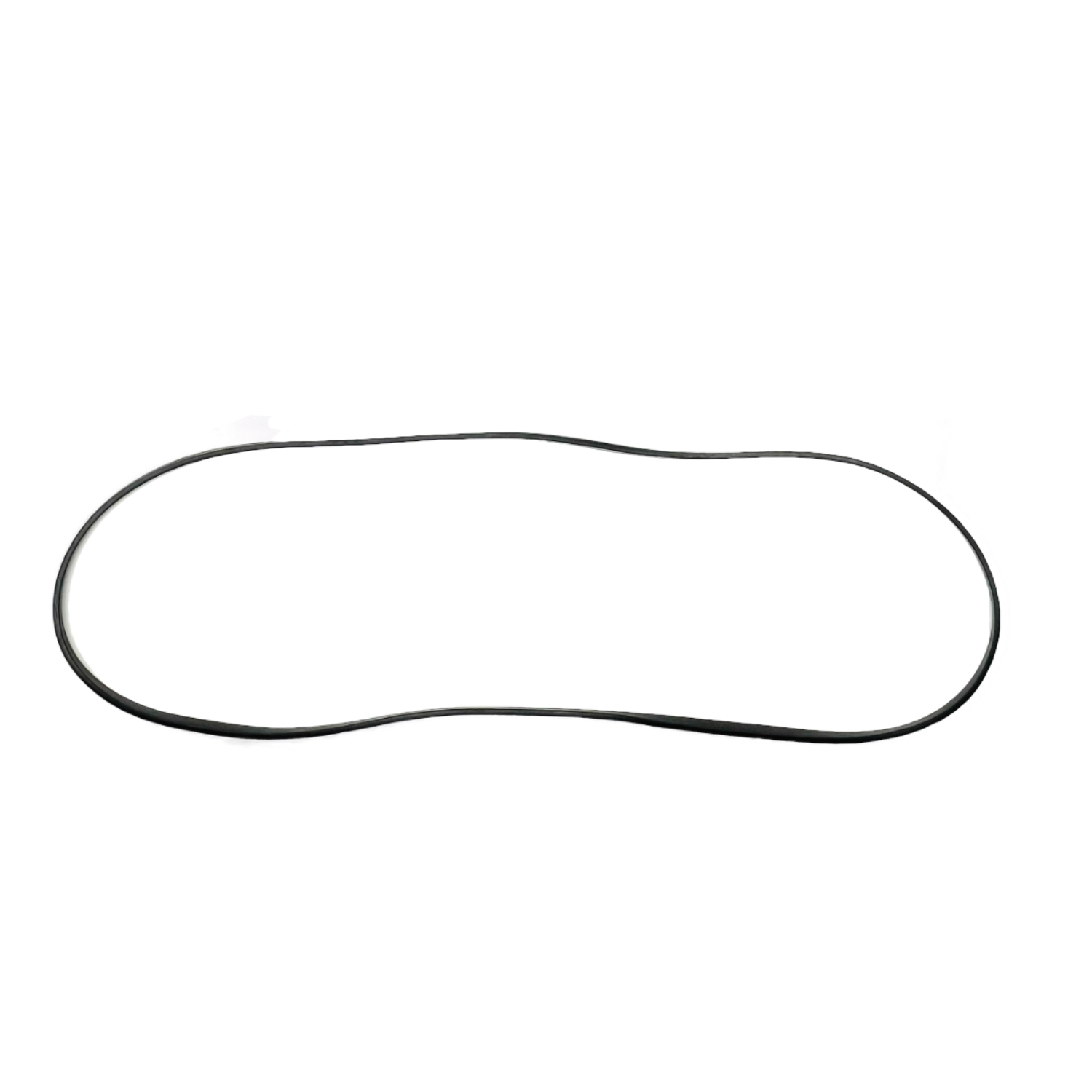

• Valve cover gasket

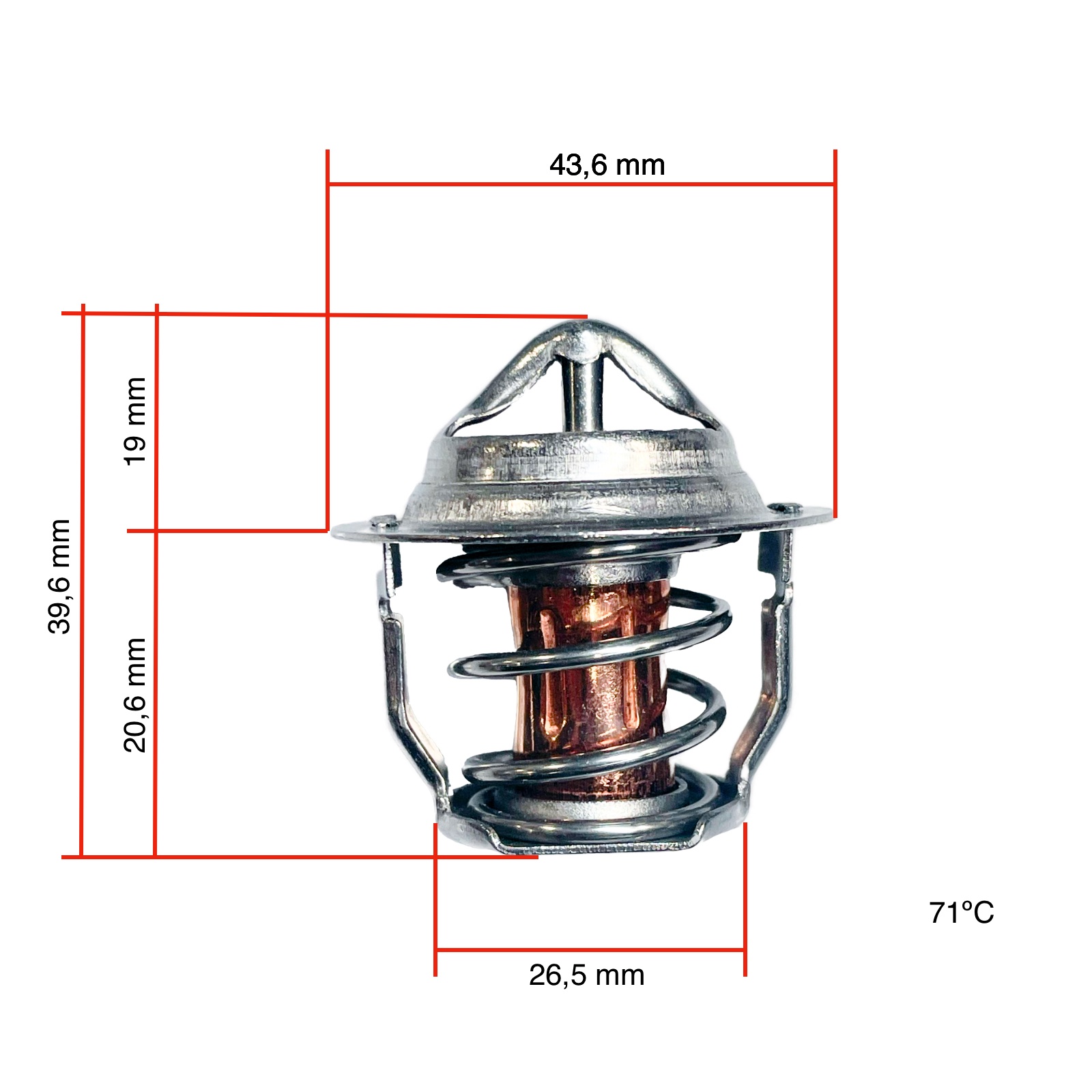

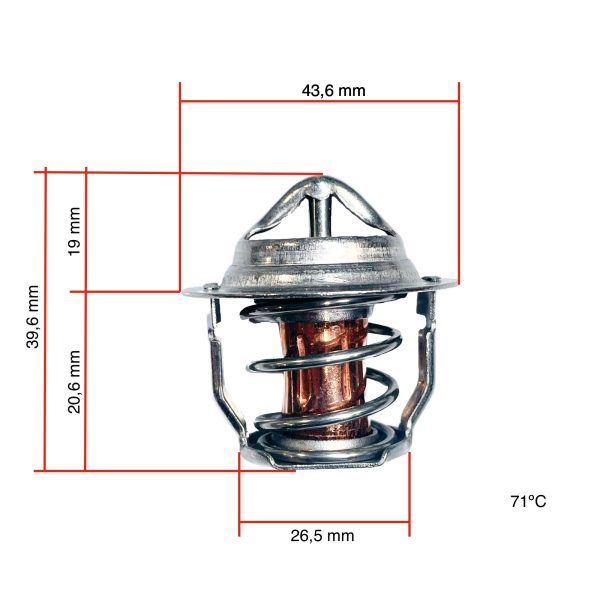

• Thermostat (44 mm)

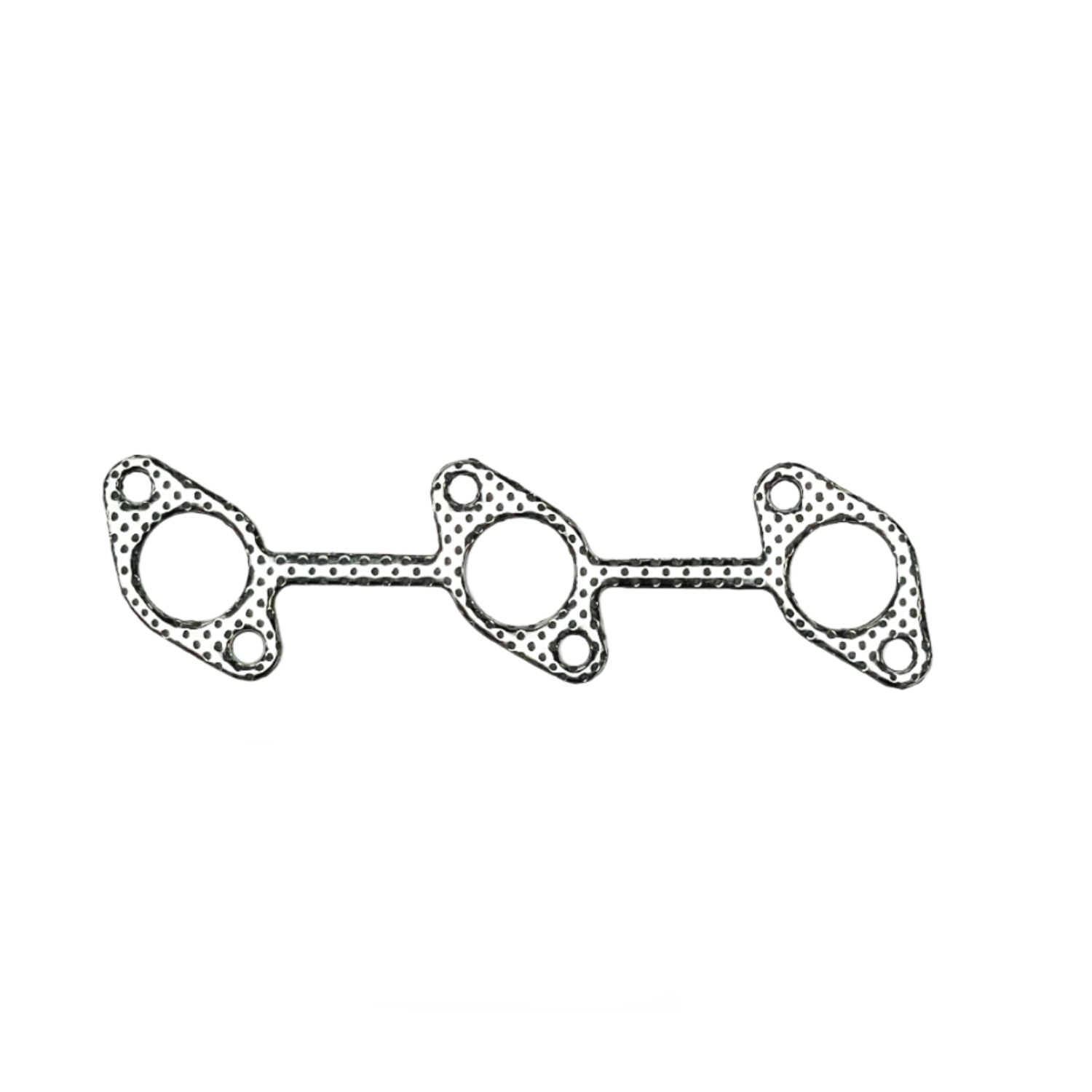

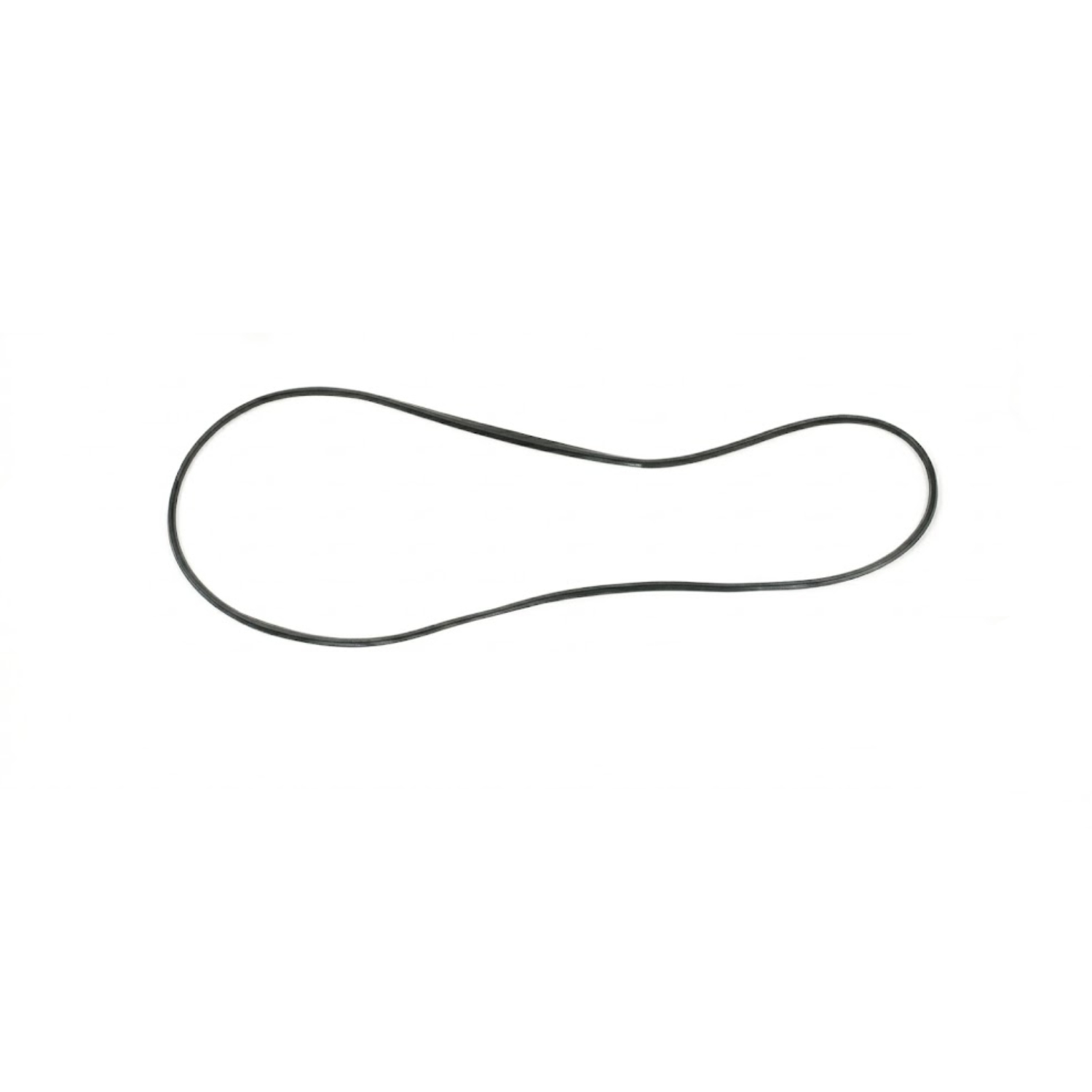

• Intake + exhaust manifold gasket

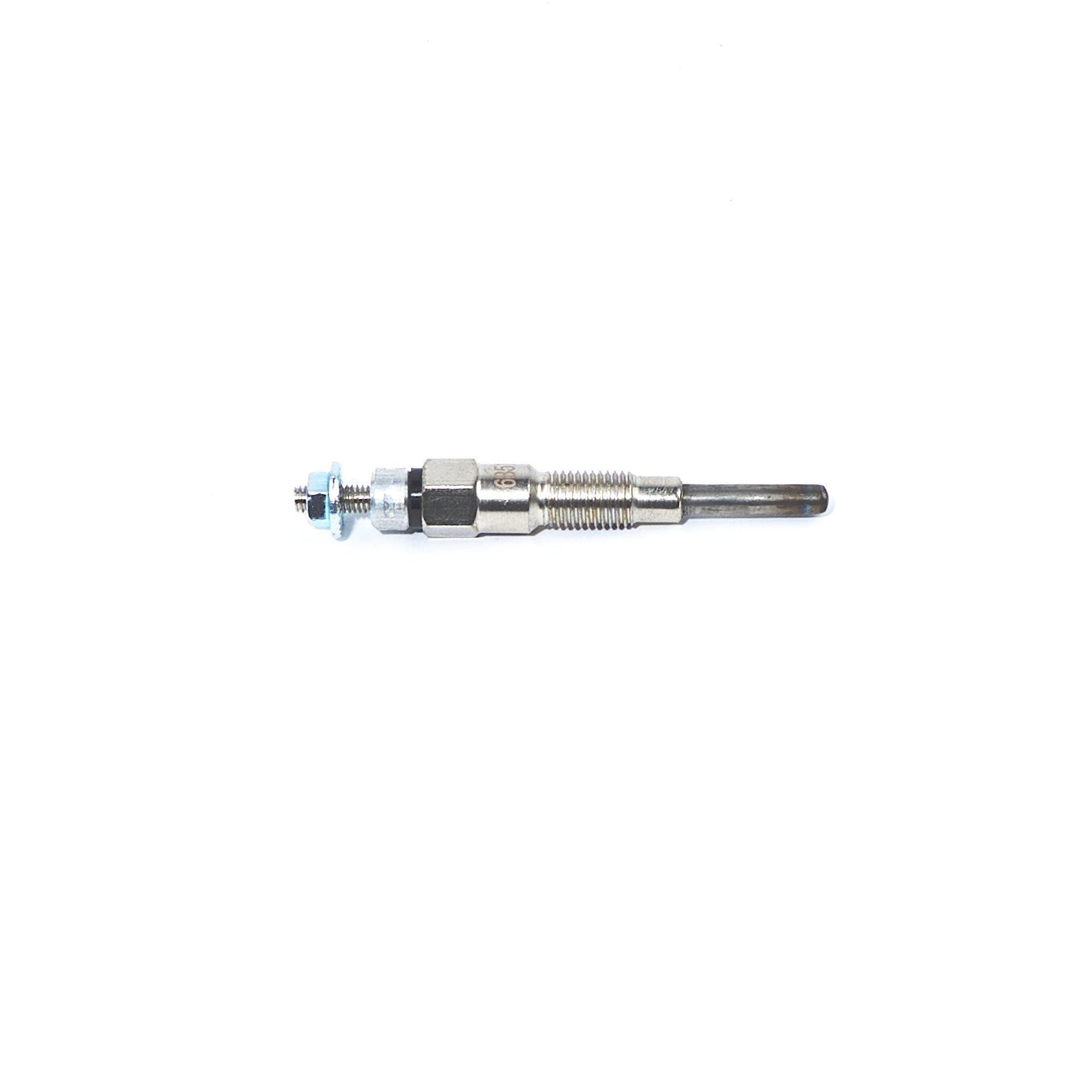

• 3× glow plug (M8 x 1.00)

Note – glow plug thread size: this kit includes the standard M8 x 1.00 glow plug. Does your engine have the M10 x 1.25 version? Then order the M10 variant separately – always check the thread of your old glow plug.

Suitable for

• Beta Marine: Beta 28
• Universal: M-25XPB
• Phasor: K3-8.0 (genset)

OEM reference

• Cylinder head: 16027-03043, 1602703043
• Head gasket: 16231-03310, 1623103310 • 16221-03310, 1622103310
• Valve cover gasket: 16241-14520, 1624114520
• Thermostat: 19434-73015, 19434-73010, 19434-73013, 19434-73014
• Intake manifold gasket: 16261-11820, 16261-11822, 16261-11823
• Exhaust manifold gasket: 16261-12351, 16261-12360
• Glow plug (M8 x 1.00): 16851-65510, 16851-65512, 16854-65510, 16854-65512, 1G790-65510, 1G790-65512 • NGK: YE-01
