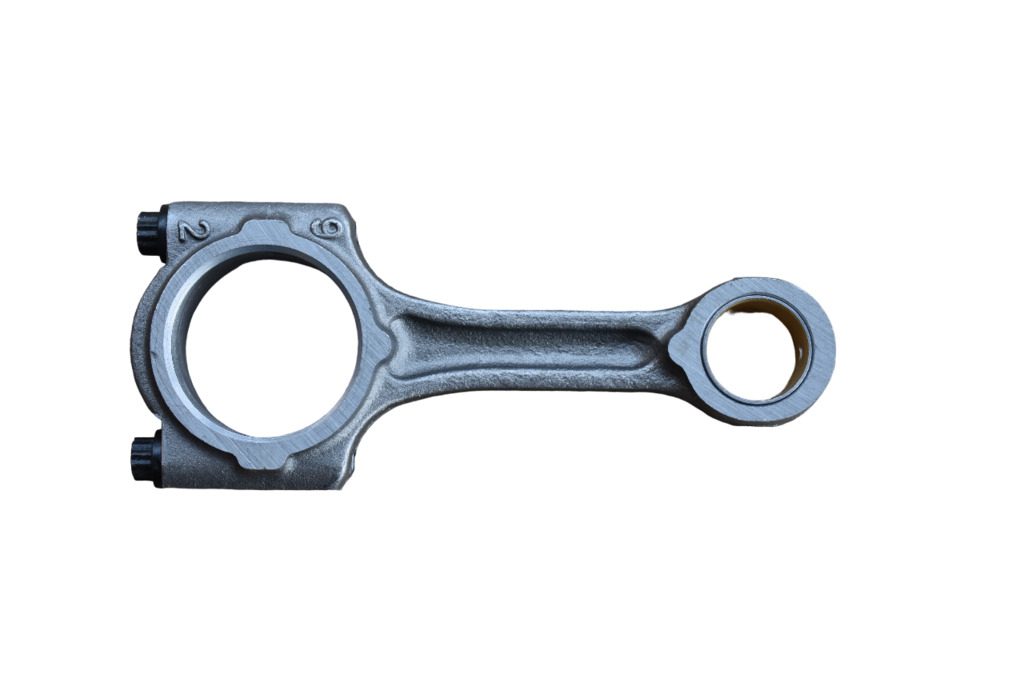

Connecting Rod Beta Marine Beta 28 | Beta 30 | Beta 35 | Beta 38 | Beta 45T – Nanni N3.30 | N4.38 – Universal M-25XPB | M-35B

Description

Connecting rod for the 3- and 4-cylinder diesel engines that serve as the basis for various Beta Marine, Nanni and Universal marine engines and Phasor generator sets. The connecting rod links the piston to the crankshaft and is carefully selected for fit and quality.

✔️ Precise fit according to original specifications
✔️ High-quality material for long service life
✔️ Direct replacement during engine block overhaul

Technical specifications

• Part: connecting rod
• Diameters: 43 mm and 22 mm
• Center-to-center distance: 116 mm
• Supply: per piece

Suitable for

• Beta Marine: Beta 28, Beta 30, Beta 35 (older model), Beta 38, Beta 45T
• Nanni: N3.30, N4.38, Q1100 (genset), Q1500 (genset)
• Universal: M-25XPB, M-35B
• Phasor: K3-8.0 (genset), K3-9.5 (genset), K4-12.5 (genset)

Note: the older Beta 35 uses this engine block; a more recent Beta 35 may differ. If in doubt, please provide your year of manufacture or engine number.

OEM for reference

• 1G700-22010 (1G70022010)
• 16241-22010 (1624122010)
• 16241-22012 (1624122012)
• 16292-22016 (1629222016)
• 16292-22010 (1629222010)
