Complete Fuel Injector Solé Diesel Mini 33 | Mini 44 | Mini 55 – Vetus M4.15 | M4.17 – Craftsman Marine CM4.42 – JF Marine Power JF10 | JF15
Save €10,74
Out of stock
- Up to 2 years warranty
- Exchange possible within 14 days
Get notified when this product is back in stock
Leave your email address. We will send you a one-time notification as soon as the product can be ordered again.
SKU:
SKU-47022-s
Shop4Trac assurances
- We deliver to Netherlands in as little as 1 business day
- Customer review 8,9/10
Shipping costs
Based on 0,1 kg
Choose a country to view shipping costs for this product.
Description

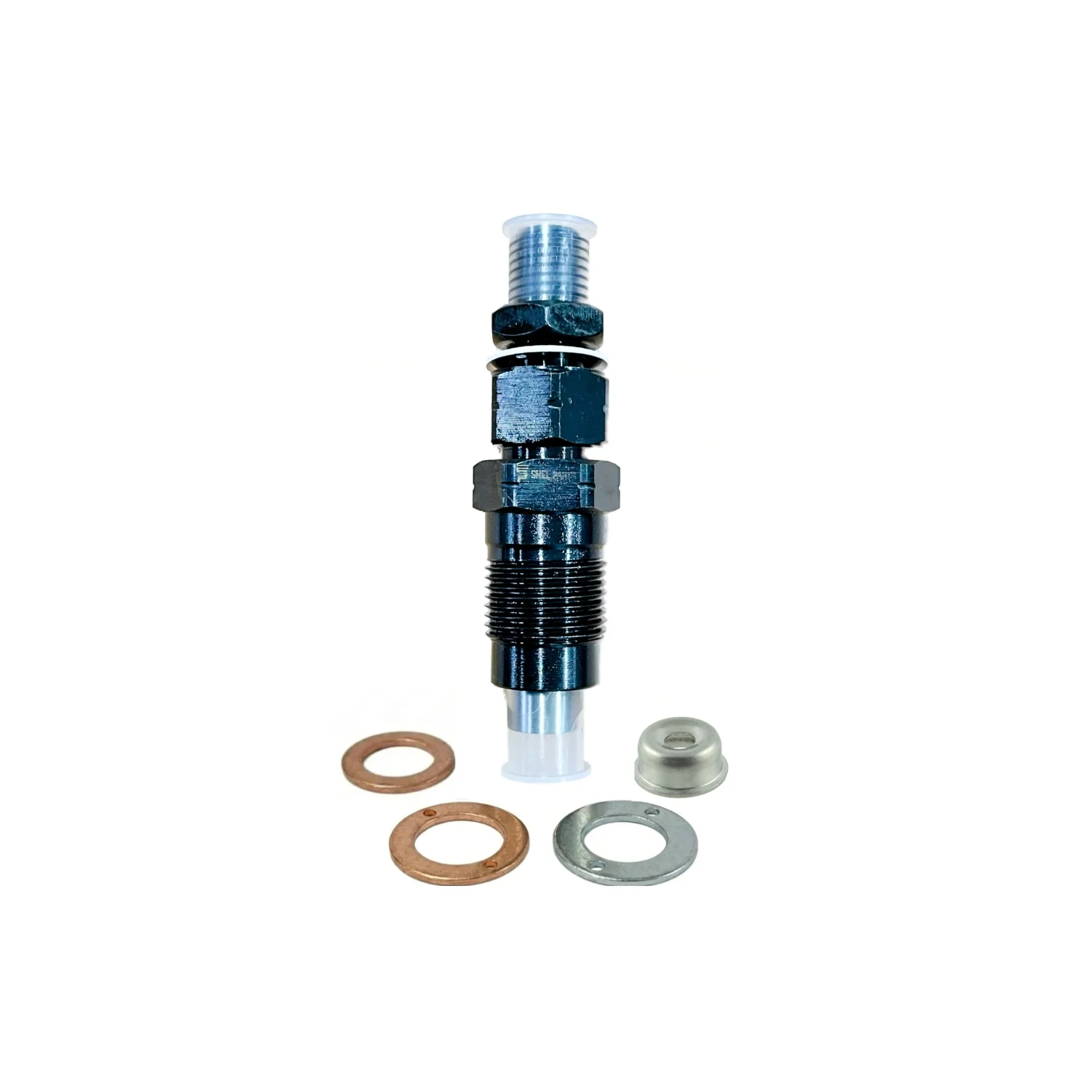

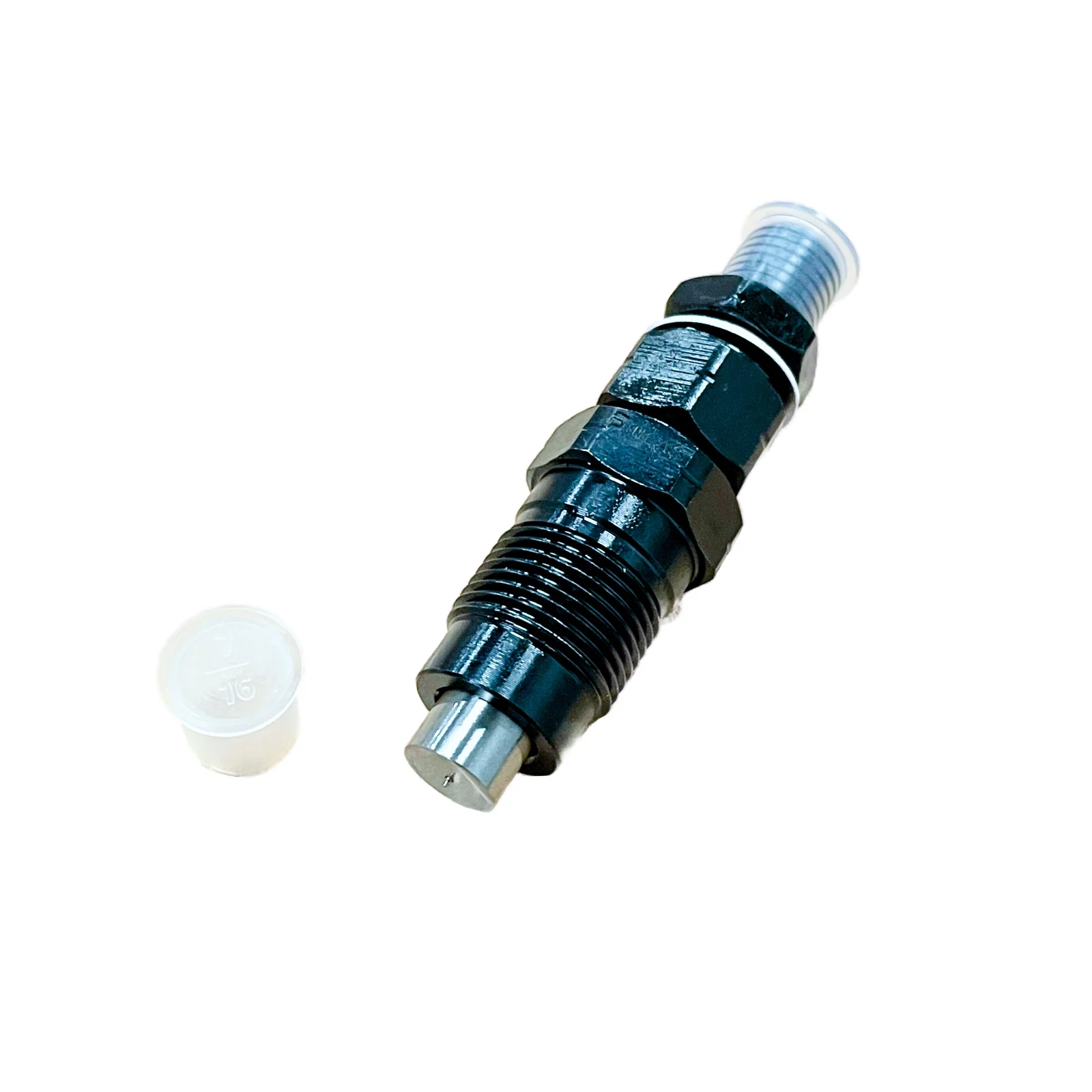

Complete fuel injector assembly (injector holder + nozzle), fully assembled and set to the correct opening pressure. This injector is ready for installation and ideal for servicing your marine diesel engine. Supplied including complete sealing kit, so you can start working safely and leak-free immediately.
✔️ Completely assembled and set to the correct opening pressure – ready to install
✔️ Including new heat shield, copper injector seal and return line seal
✔️ Threaded connection for secure and reliable installation
Technical specifications
- Part: Complete fuel injector (injector holder + nozzle)
- Installation: Threaded connection
- Application: Marine diesel engines
- Delivery: per piece (recommendation: replace as a set for even running)
Suitable for
- Solé Diesel: Mini 33, Mini 44, Mini 55 (+ gensets G-10M-15, G-10T-15, G-15M-15, G-15T-15, G-25M-3, G-25T-3)
- Vetus: M4.15, M4.17
- Craftsman Marine: CM4.42
- JF Marine Power: JF10-1500, JF15-1500
OEM for reference
- MM435-94101
- 093500-3840 / 0935003840
- 09311-03840 / 0931103840
- MM514048
- 09312-70310 / 0931270310
- MM514047
- 09312-10380 / 0931210380
- MM501838
- 09317-40070 / 0931740070
- MM501841
- 09340-05060 / 0934005060
- MD603660
- 09316-41351 / 0931641351
- MM514389
- 13826002, 13826001, 13826004, 13826003, 13826007, 13826018, 13826006
Specifications
Merk
Craftsman Marine, JF Marine Power, Solé Diesel, Vetus
Weight
0,1 kg
